Accessories for yo ur Tablet P C (opti

onal)

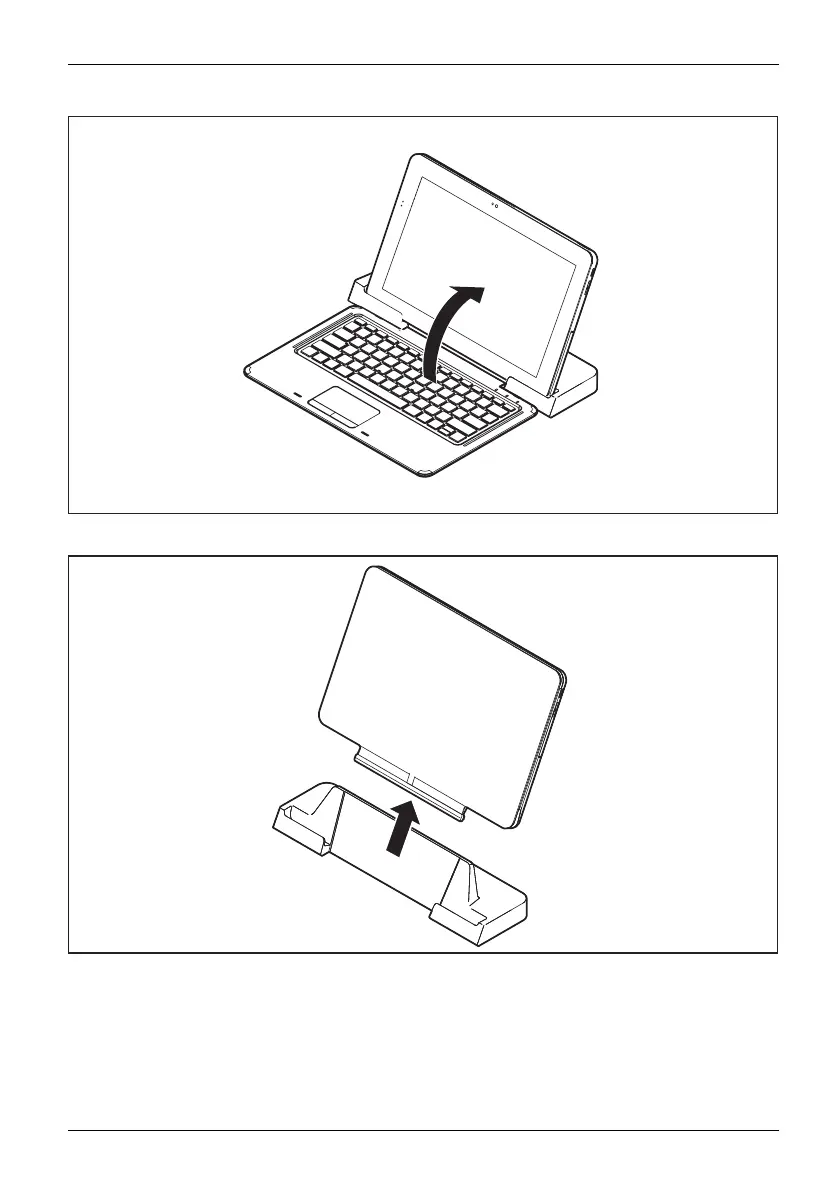

► Fold the magnetic keyboard in the direction of the arrow ( 1).

► While holding the lower part of the docking cradle, lift the Tablet PC with the

magnetic keyboard in the direction of the arrow (2).

Fujitsu 55
