Accessories for your Tablet PC (opti

onal)

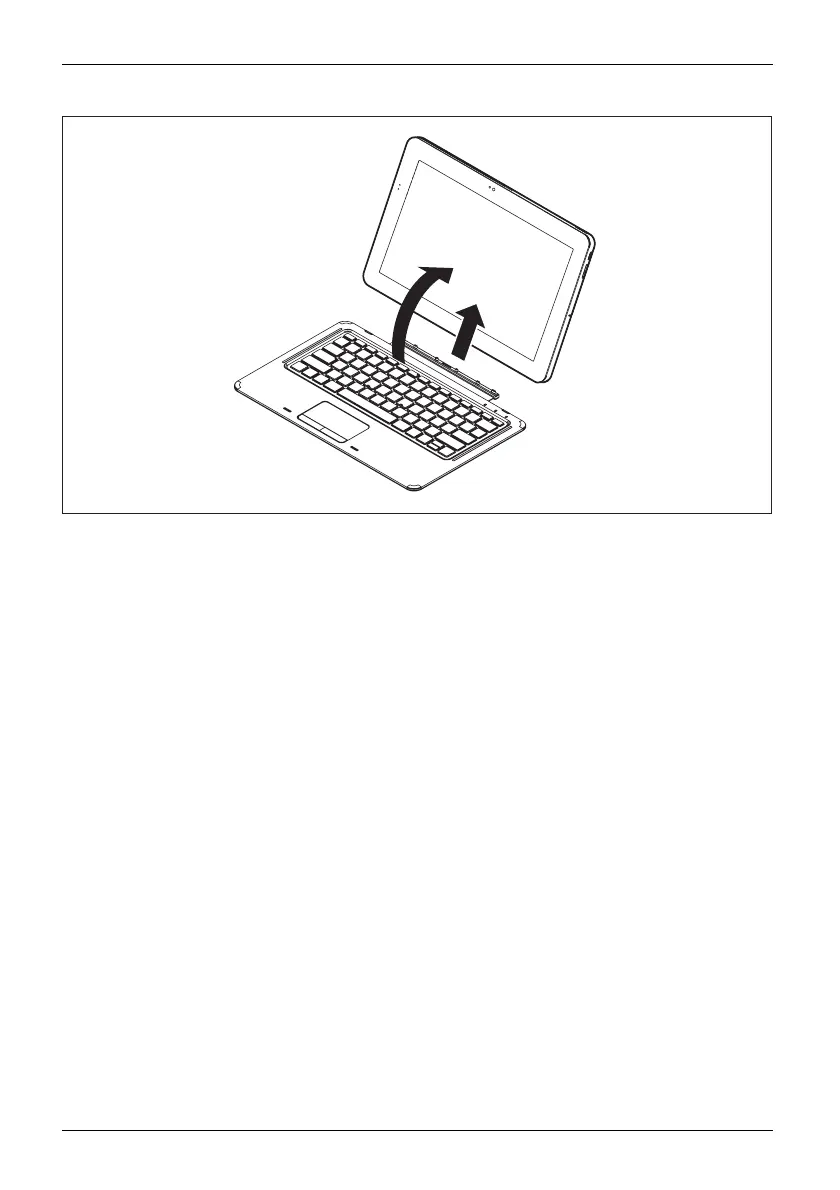

► Fold the Tablet PC in the direction of the arrow (3).

► While holding the lower area of the magnetic keybo ard, lift the Tablet PC away from

the magnetic keybo ard in the direction of the arrow (4).

56 Fujitsu
