En-2

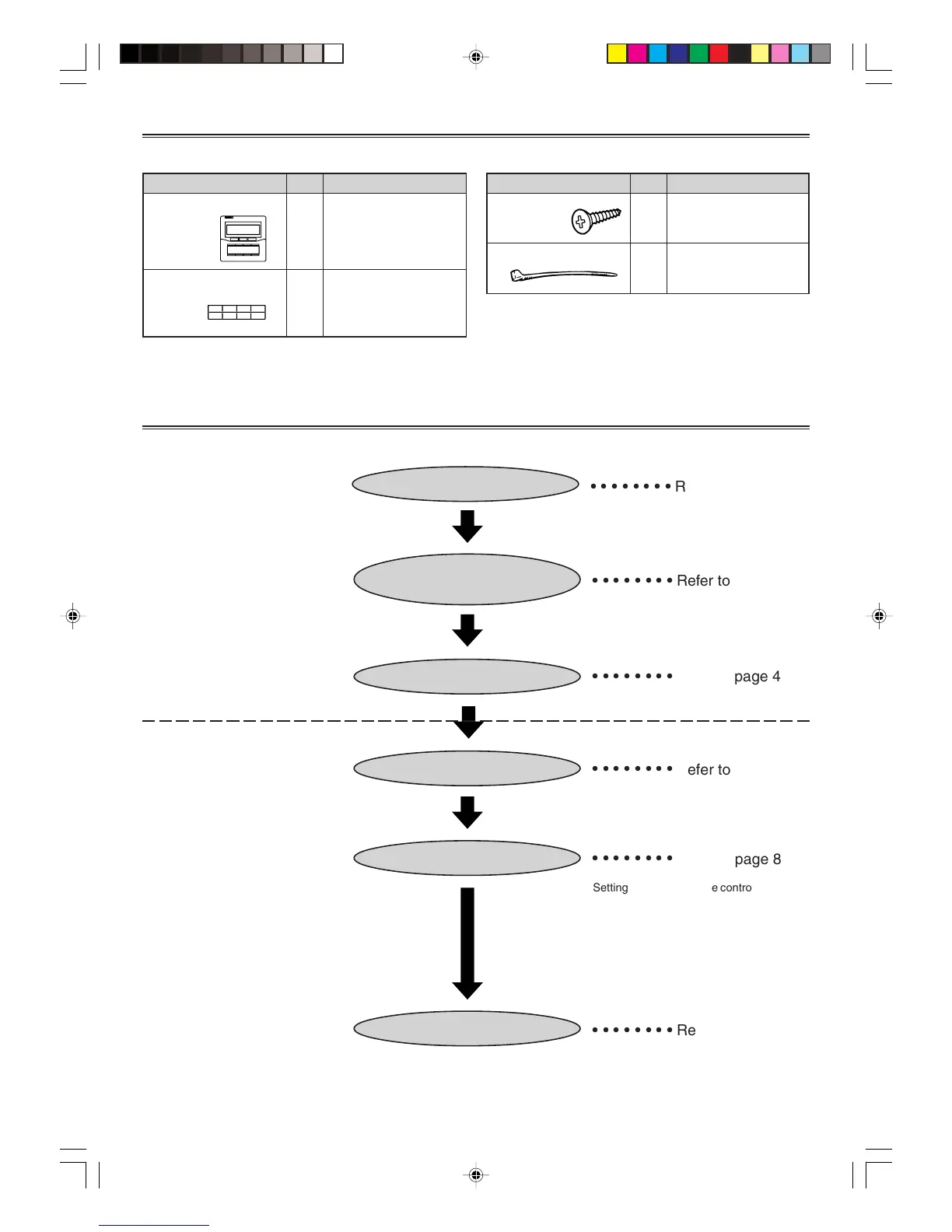

STANDARD PARTS
The following installation parts are supplied. Use them as required.
Q’ty
1
4
Application
Use for air conditioner
operation
Use this for writing the
names of the indoor units
that have been regis-
tered.
Name and Shape
Group remote
controller
Label
Q’ty
2
1
Application
For installing the remote
controller
For remote controller
and remote controller
cord binding
Name and Shape
Tapping screw
(M4 × 16 mm)
Binder
* Use of this product requires a special convertor and connection cable.
These are provided as service parts, so please contact authorized service personnel.
FLOW OF INSTALLATION
The following is the flow of the installation of Group remote controller.
• INSTALLATION
• SETTING
INSTALLING THE REMOTE
CONTROLLER
SETTING THE DIP SWITCH
WIRING
TURN ON THE POWER
REMOTE CONTROLLER SETTINGS
INDOOR UNIT REGISTRATION
○○○○○○○○
Refer to page 4
○○○○○○○○
Refer to page 4
○○○○○○○○
Refer to page 3
○○○○○○○○
Refer to page 7
○○○○○○○○
Refer to page 8
○○○○○○○○
Refer to page 11
• Setting the Group remote controller address
• Time Display Settings
• Timer Operation Settings
• Temperature Range Settings
• Temperature Display Settings
To Next Page
