SETTING

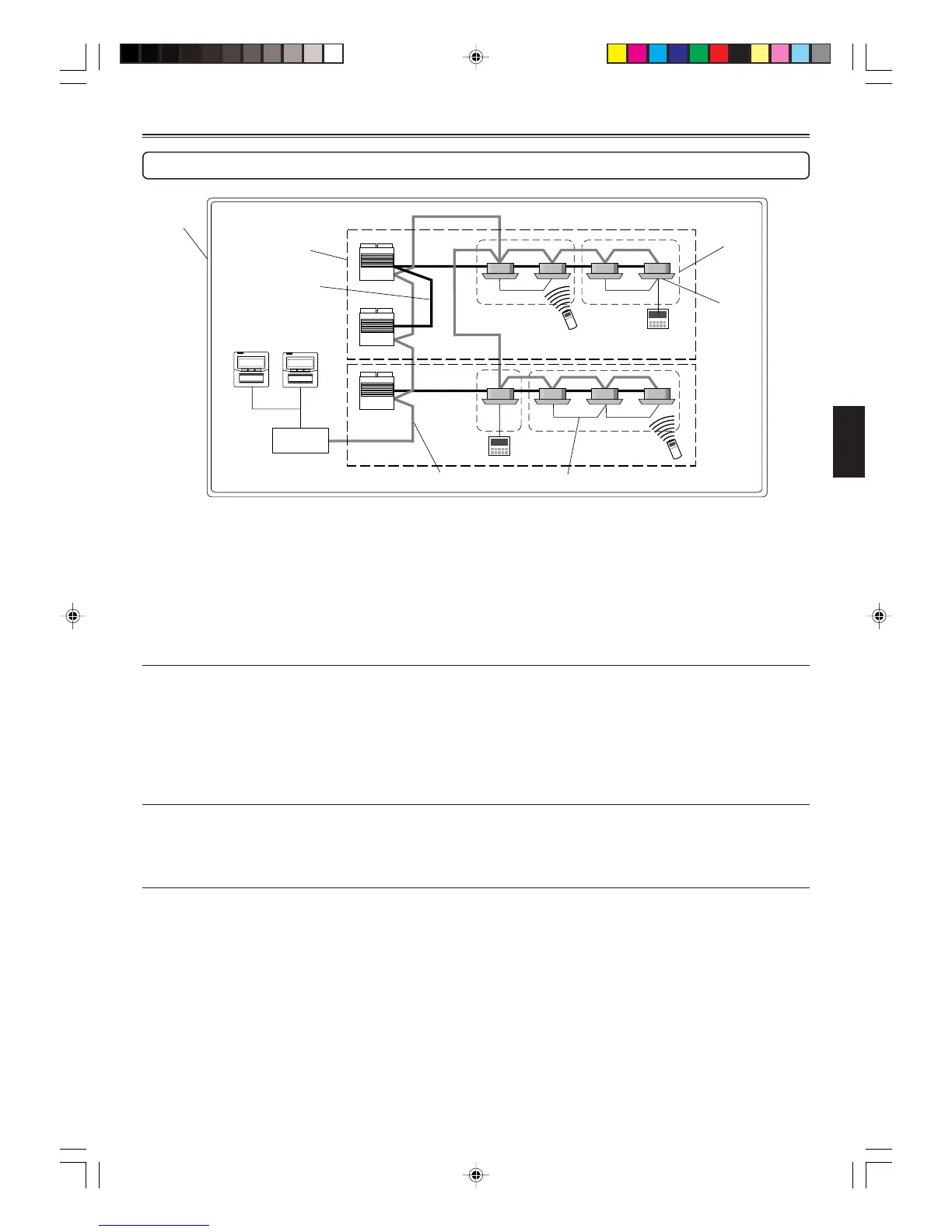

EXPLANATION OF TERMS
Indoor unit
System
Refrigerant system
Refrigerant pipe
Convertor
Outdoor
unit
Group remote controller
Transmission line Controller line
Wireless remote
controller
Wired remote
controller
Remote
controller
group
Controller related items
● System:
This is all of the indoor units, outdoor units and controller units connected by the same transmission line.
● Refrigerant system: [Not for J-series*]
This is a system composed of indoor and outdoor units connected by the same refrigerant pipe.
● Remote Controller group: [Not for J-series*]
This is the smallest unit controlled by group remote controller.
This is a group of indoor units that have been connected with one controller line.
Indoor / Outdoor unit setting (on the Circuit board)
● Refrigerant circuit address (0~99): [Not used for J-series*]
This is the ID individually assigned to each refrigerant system and is used for control.
● Indoor unit address (0~63): [J-series* uses 0-7]
This is the ID individually assigned to each indoor unit and is used for control.
● Remote controller address (0~15): [Not used for J-series*]
This is the ID individually assigned to the indoor units forming each remote controller group and is used for control.
Group remote controller setting
● Group remote controller address (0~3): [J-series* uses “0” only]
This is the ID individually assigned to each group remote controller and is used for control.
* It is a J-series model when the model name of the indoor unit ends in “R.”
