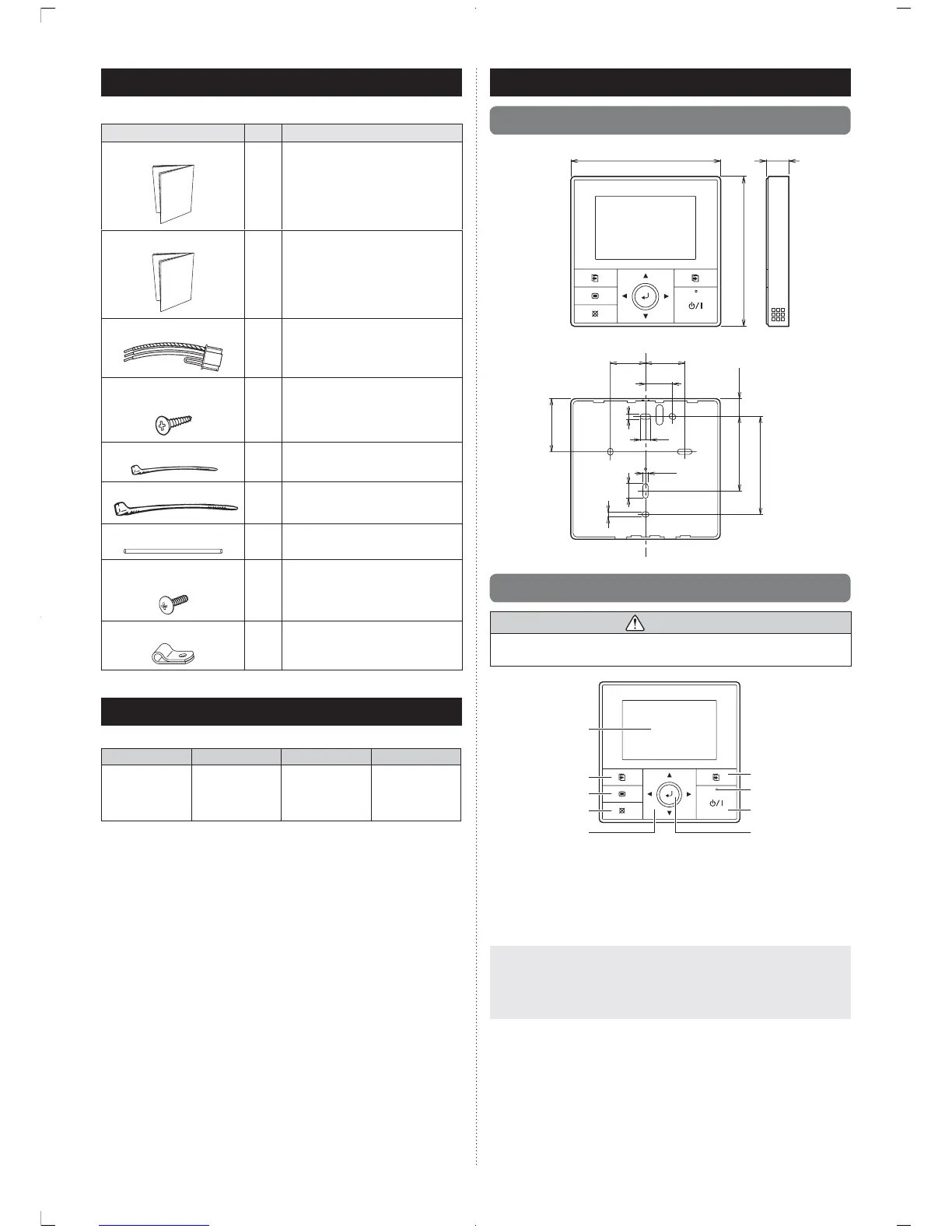

2. ACCESSORIES
The following installation parts are supplied. Use them as required.
Name and Shape Q’ty Application
Installation manual
1
This manual
Operating manual
1
Instruction book for operation
Connecting cable
1
For connecting the remote controller
cable to the wall mounted type and
WKHÀRRUW\SHLQGRRUXQLW
Screw
(M4 × 16 mm)
2
For installing the remote controller
Cable tie (Small)
1
For remote controller and remote
controller cable binding
Cable tie (Large)
1
For remote controller and remote
controller cable binding
Tube
1
To protect wiring
Screw
(M4 × 14 mm)
1
For installing the remote controller
cable to the indoor unit
Cable clamper
1
For installing the remote controller
cable to the indoor unit
3. ELECTRICAL REQUIREMENT
:KHQFRQQHFWLQJWKHUHPRWHFRQWUROOHUXVHFDEOHVSHFL¿HGDVIROORZV
Conductor size Type Remarks
Remote controller
cable
0.33 mm
2
(22AWG)
Polar 3 core
Use shield cable
in accordance
with local rules
for cable.
4. SELECTING AN INSTALLATION LOCATION
4.1. Dimensions
120 21.3
120
30 33.5
23
9
4.5
Unit: mm
4.5
4.5
45.3
15.3
63.5
83.5
12.5
4.2. Name of parts
CAUTION
3UHVVWKHEXWWRQOLJKWO\ZLWKD¿QJHU,WPD\FDXVHDIDLOXUHLISUHVVHGZLWK
excessive force.
(1)
(2)
(3)
(4)
(5) (9)
(8)
(7)
(6)
(1) Display panel (with backlight) (6) Screen switch button (Right)
(2) Screen switch button (Left) (7) Power indicator
(3) Menu button (8) On/Off button
(4) Cancel button (9) Enter button
(5) Cursor button
-Note-
:KLOHWKHEDFNOLJKWLVRIIE\WKHDXWRPDWLFOLJKWRIIWKH¿UVWEXWWRQ
RSHUDWLRQGRHVQRWZRUNDQGWKHEDFNOLJKWLOOXPLQDWHV7KH2Q2IIEXWWRQ
is excluded.)
:KLOHWKHEDFNOLJKWLVVHWWR>2II@LWLVHIIHFWLYHIURPWKH¿UVWEXWWRQ
operation.
