SECTION 2 EDR-SOLA-IOM-2022-0216 INSTALLATION
2-17

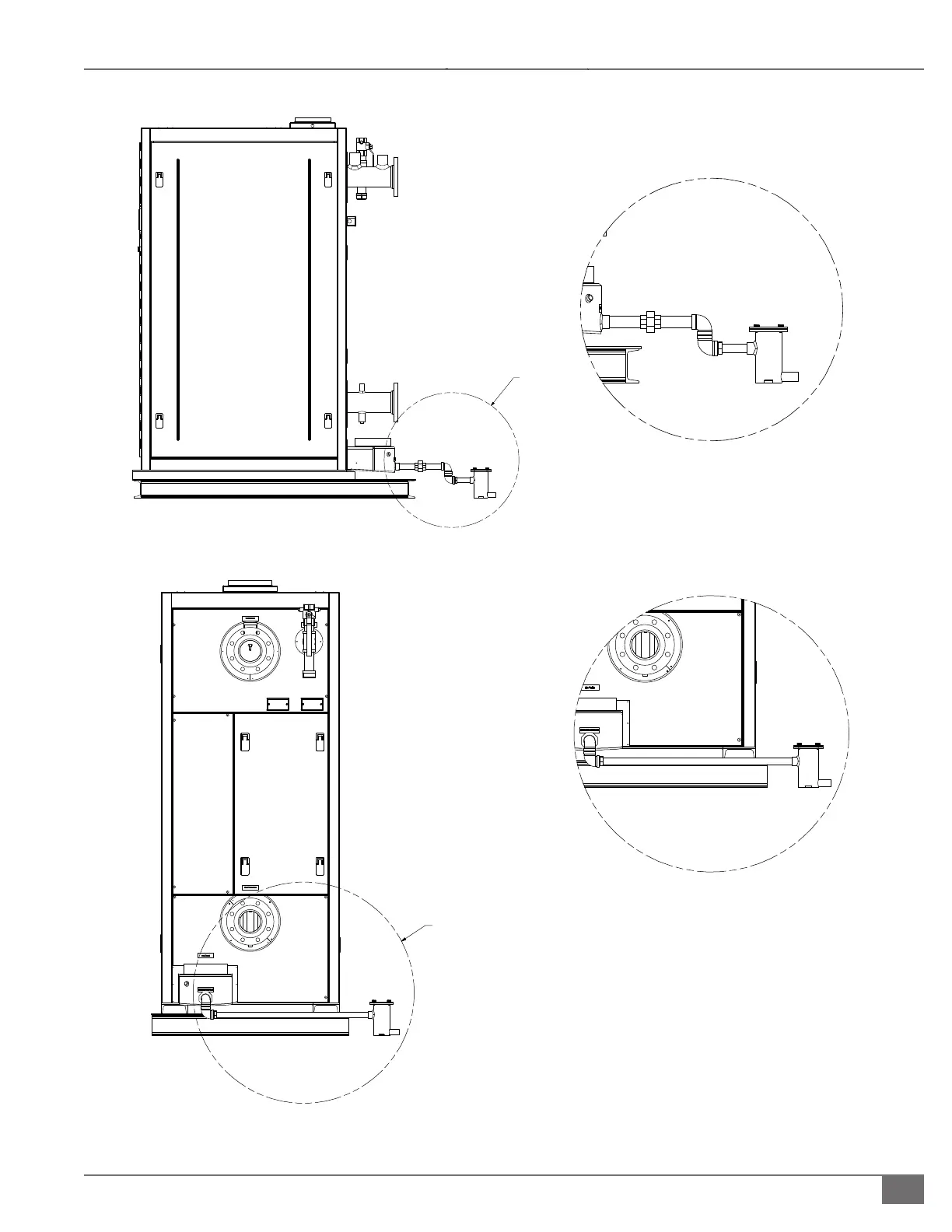

FIGURE 13 CONDENSATE DRAIN PIPING FOR INDIVIDUAL ENDURA BOILER
DETAIL A
CONDENSATE
DRAIN KIT
DETAIL A
DETAIL A
CONDENSATE
DRAIN KIT
DETAIL B
DETAIL B
CONDENSATE
DRAIN KIT
R
Figure Notes:
1. Header must be level or slightly pitched toward the drain.
2. Header material must be CPVC, galvanized steel, or
stainless steel.
3. Condensate drain trap is never to be above boiler
condensate outlet.
4. The maximum capacity to attach per condensate drain kit
is 4 MMBH total.
5. Housekeeping pad required, minimum 4 inch (102 mm).
