The following applies to a standalone boiler utilizing a header temperature
sensor for modulation only. Return to the boiler status screen and select
congure. From the congure screen scroll to and select central heat
conguration. Use the left and right arrow keys to scroll to the screen labeled
modulation. The row labeled Modulation Sensor needs to be set at S5 (J8-11)
Sensor. Refer to Figure 63 for factory default settings:
 P gain: The gain applied for the Proportional portion of the PID equation.
 I gain: The gain applied for the Integral portion of the PID equation.
 D gain: The gain applied for the Derivative portion of the PID equation.
 Outdoor Air Temperature Sensor
The outdoor reset temperature sensor is to be congured on the master boiler
only or a standalone boiler. Starting from the status screen tap congure and
then scroll to and select sensor conguration. The outdoor temperature source
needs to be assigned to EnviraCOM outdoor sensor. Ensure values are as
indicated in Figure 64.

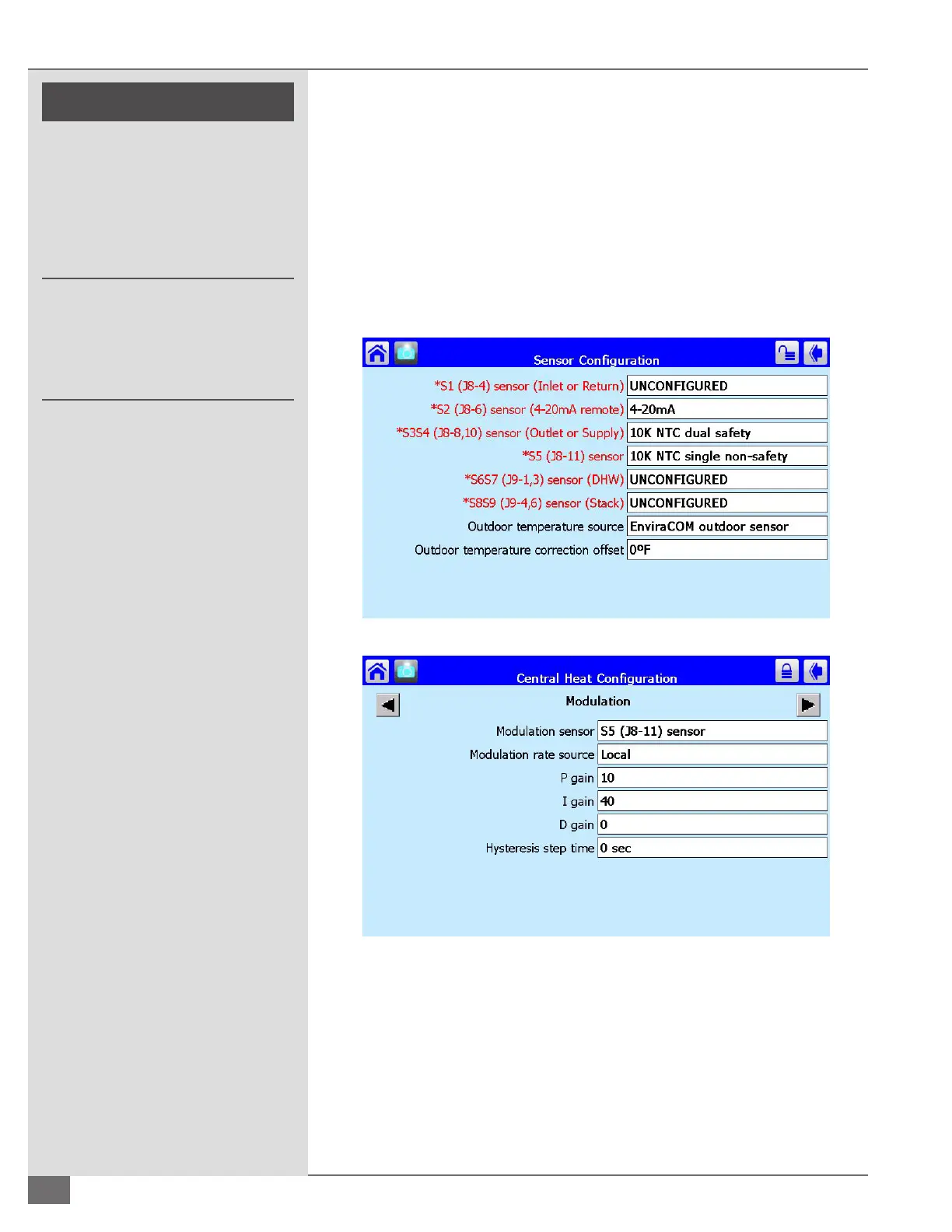

FIGURE 63  CENTRAL HEAT CONFIGURATION MODULATION
FIGURE 62  SENSOR CONFIGURATION
