Replacing Gas Valve Internal Filter
NOTE:  The lter must be inspected annually. More frequent inspections will be
required for gas delivery systems containing small debris.
If the pressure dierential across the pressure taps shown in Figure 75 exceeds 4”
W.C., the lter must be replaced.
Refer to Figure 75, Table 13, and the following steps for replacing the lter:
TABLE 13 GAS VALVE FILTER PART NUMBERS
Endura Model EDR-750/1000 EDR-1500/2000
Filter Assembly 2-30-005164 2-30-005165
1. Close the upstream gas valve to interrupt the gas supply.
2. Removes screws 1 and 2.
3. Replace lter insert 3.
4. Replace screws 1 and 2 and verify torque to 22 inch-lbs.
5. Perform a complete leak and function test, reference the gas valve manual
for the test procedure.

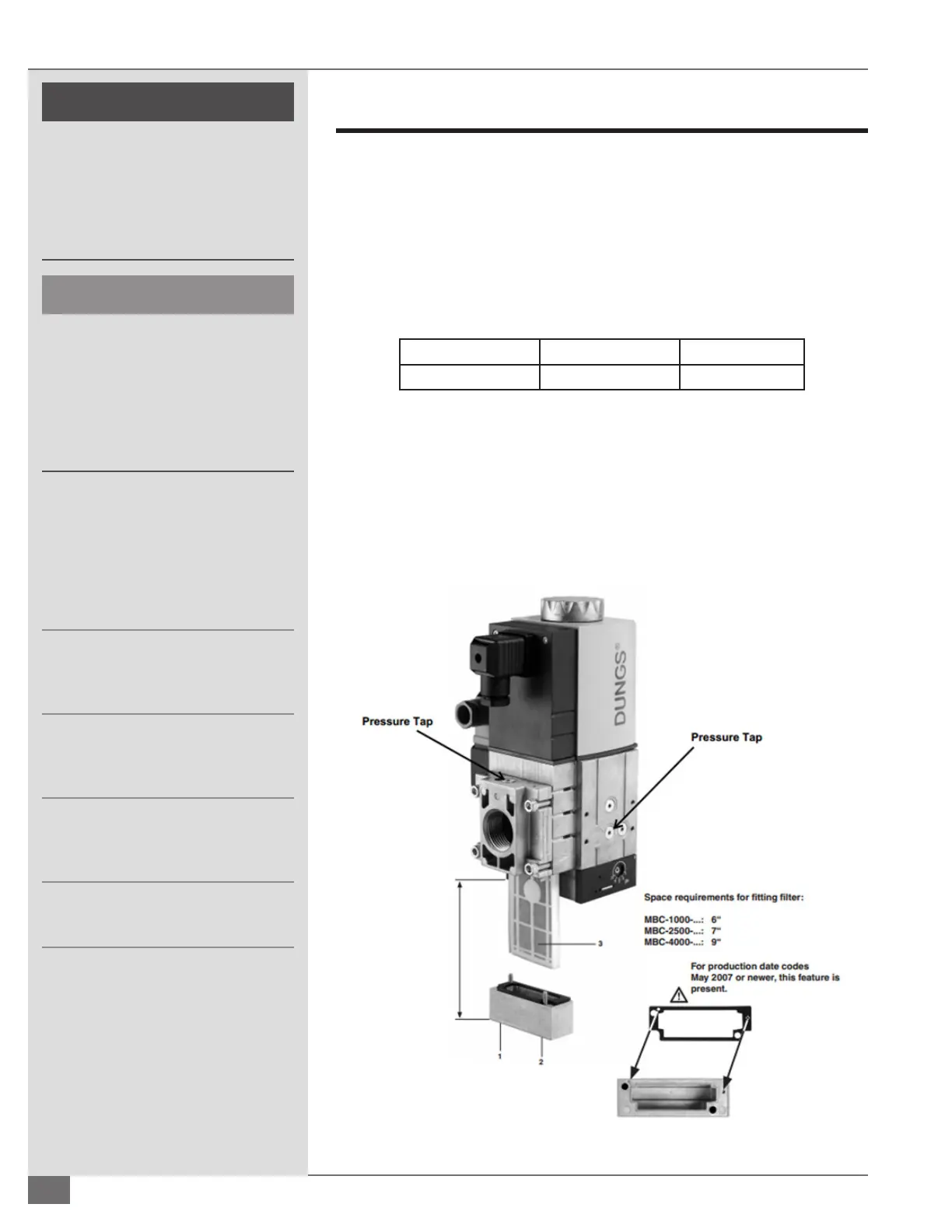

FIGURE 75  MAIN GAS VALVE FILTER
