FULTON Vantage VTG 6000DF - Page 11

Questions? Please Contact Your Local Manufacturer’s Representative
SECTION 2 VTG-IOM-2016-1214 INSTALLATION
2-5

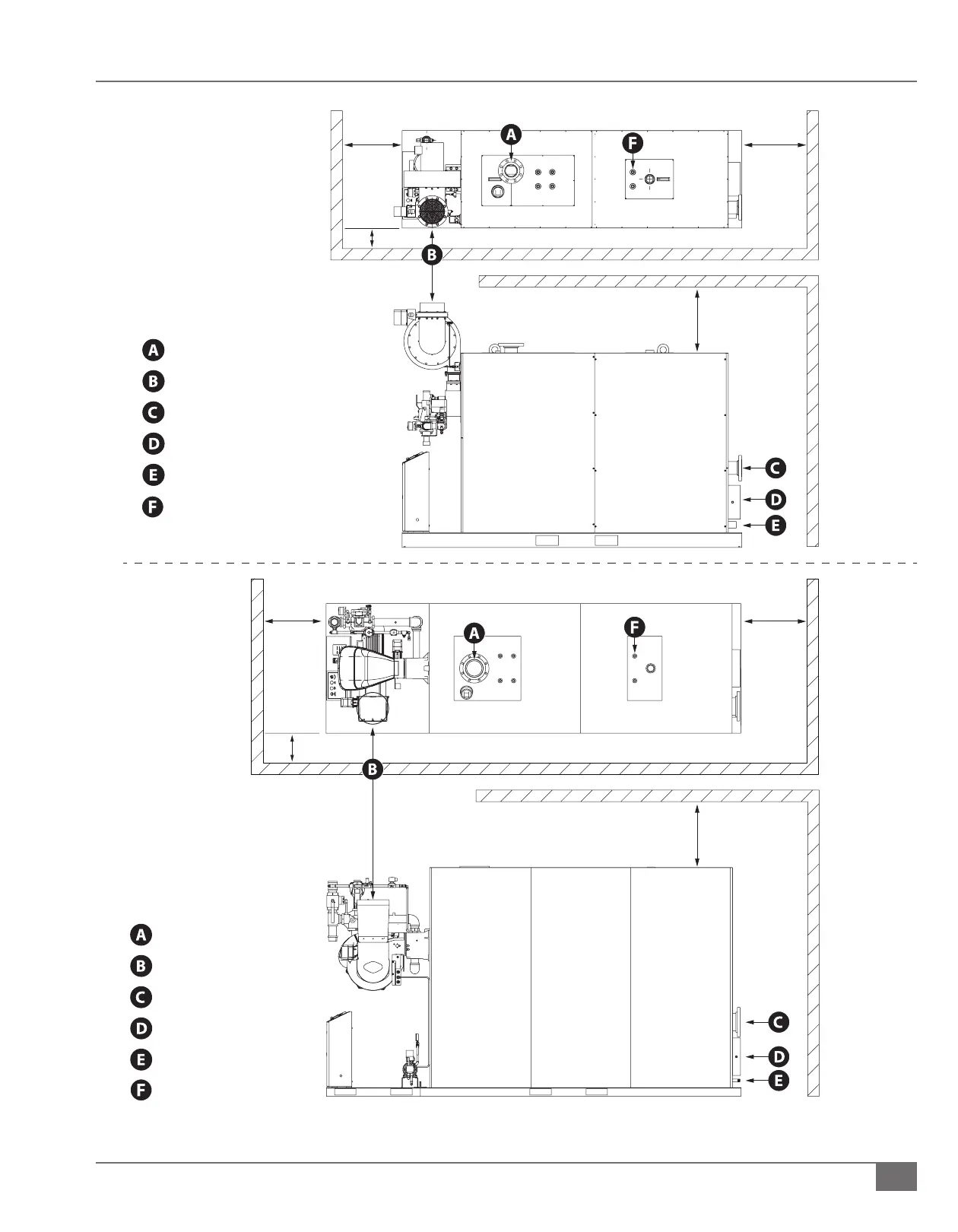

FIGURE 1  VIEWS OF VANTAGE HYDRONIC BOILER STANDARD, LOW EMISSIONS AND DUAL FUEL MODELS
TOP VIEW
SIDE VIEW
Standard / Low
Emissions Models
24 IN
(61 CM)
24 IN
(61 CM)
RECOMMENDED
COMBUSTION AIR INLET
COLD WATER INLET
EXHAUST OUTLET
CONDENSATE DRAIN
HOT WATER OUTLET
COMBUSTION AIR INLET
COLD WATER INLET
EXHAUST OUTLET
CONDENSATE DRAIN
LOW WATER PROBE
HOT WATER OUTLET
1 IN
(25.4 MM)
EACH SIDE
TYPICAL
36 IN
(91.4 CM)
LOW WATER PROBE
COMBUSTION AIR INLET
COLD WATER INLET
EXHAUST OUTLET
CONDENSATE DRAIN
HOT WATER OUTLET
TOP VIEW
SIDE VIEW
1 IN
(25.4 MM)
EACH SIDE
TYPICAL
Dual Fuel
Models
36 IN
(91.4 CM)
24 IN
(61 CM)
24 IN
(61 CM)
RECOMMENDED
