1-13-7
E3B40SCAV5

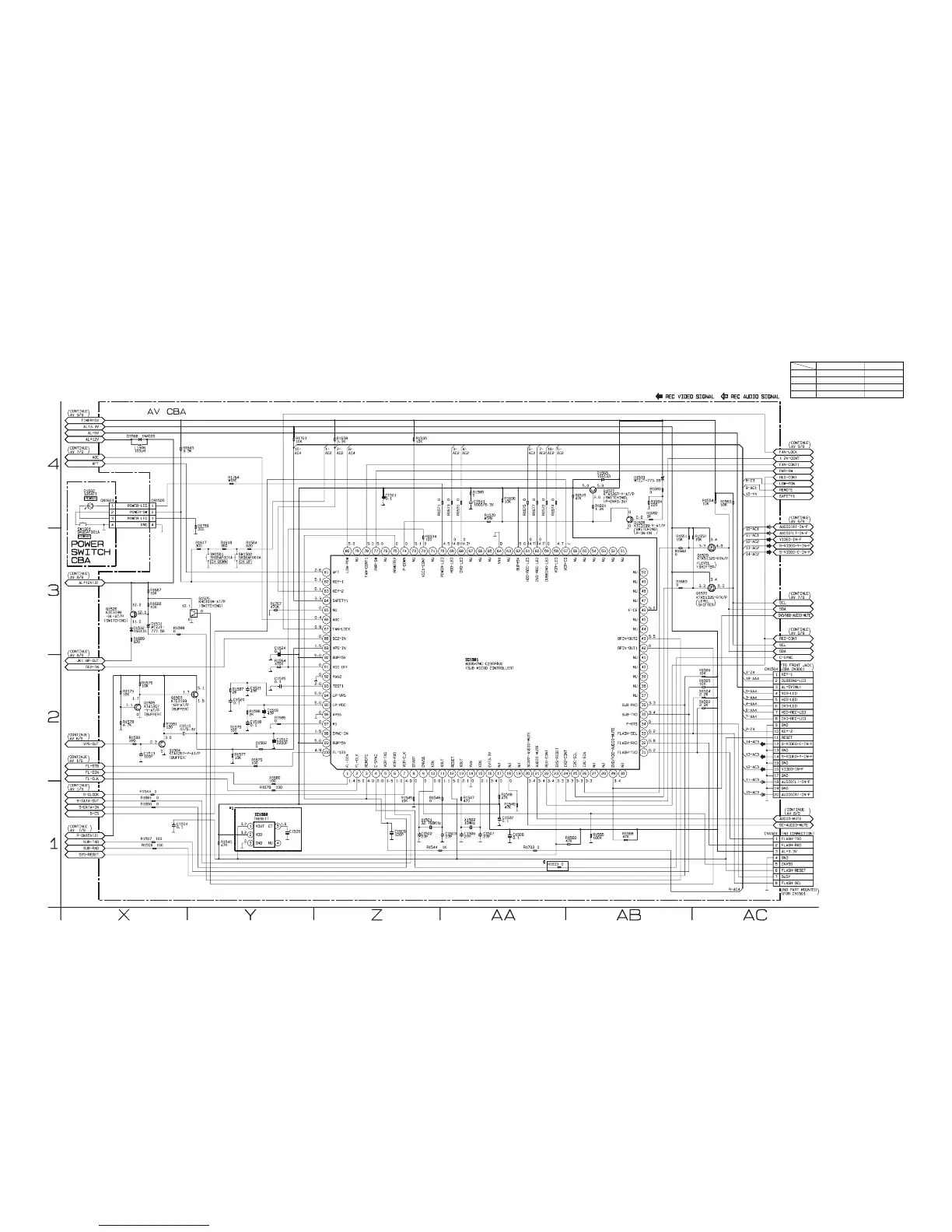

AV 5/9 & Power SW Schematic Diagram < VCR Section >
*1 NOTE
IC1502
IC1502
R3112N211A-TR-F
PST3621NR
Group A Group B
C1505
C1505 0.015
0.15
These components (IC1502, C1505) can be used
in any models.
However, you cannot mix components under
Group A with the ones under Group B.
You can choose either Group. The difference
between Group A and Group B is shown below.
----------
----------
----------
----------
