FUNAI T3A-A8182DB - Page 49

1-13-16
E3B40SCD1

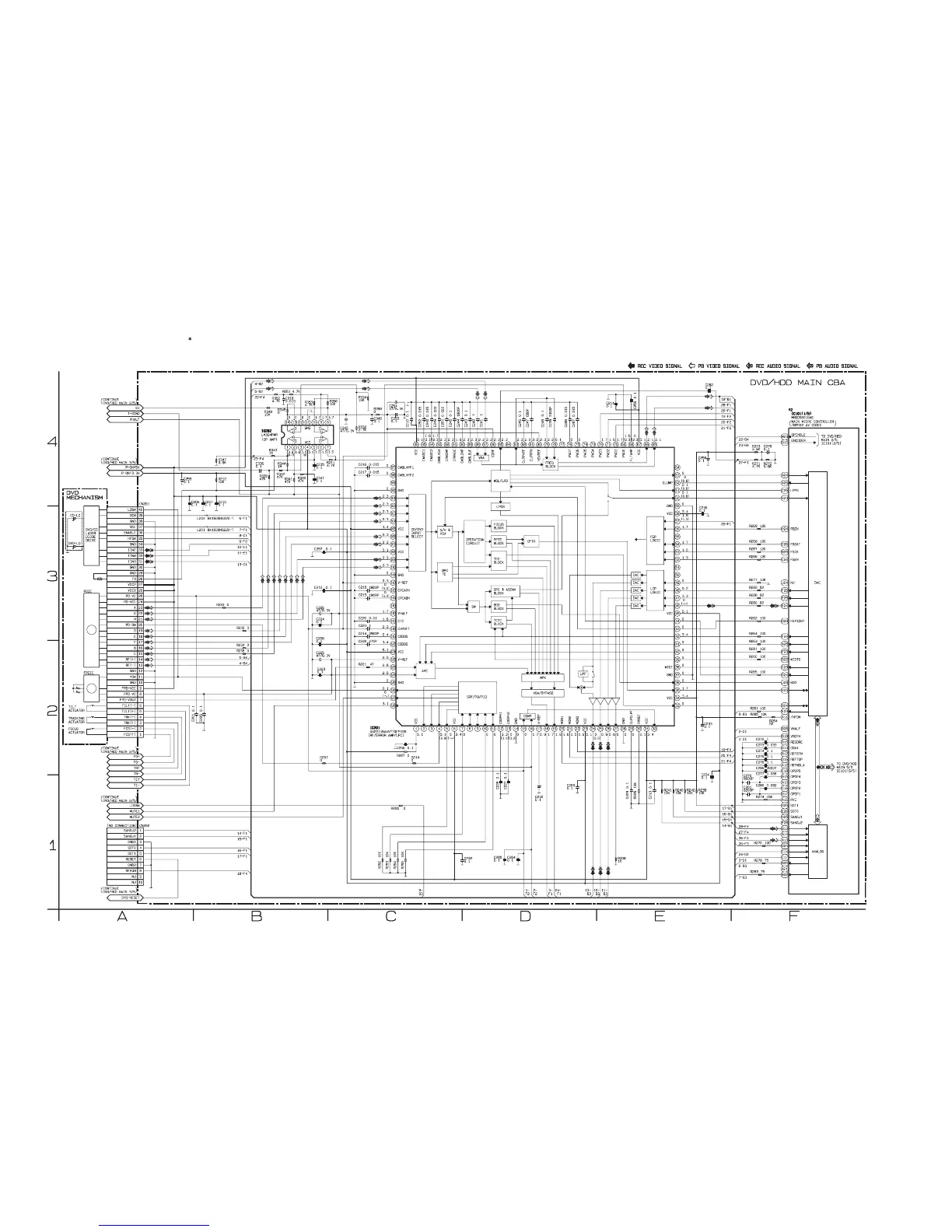

DVD/HDD MAIN 1/5 Schematic Diagram < DVD/HDD Section >
The order of pins shown in this diagram is different from that of actual IC101.
IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD/HDD Main Schematic Diagram Section.
2 NOTE:
