Installation
English
Fig. 5Fig. 5
Mounting Location Requirements
● Do not subject the solar charge controller to direct sunlight or any other heat sources. Protect the
charge controller from any dust, dirt, and moisture.
● Mount it at to a vertical wall. If there is a backing material installed on the wall, make sure that it
is non-ammable material.

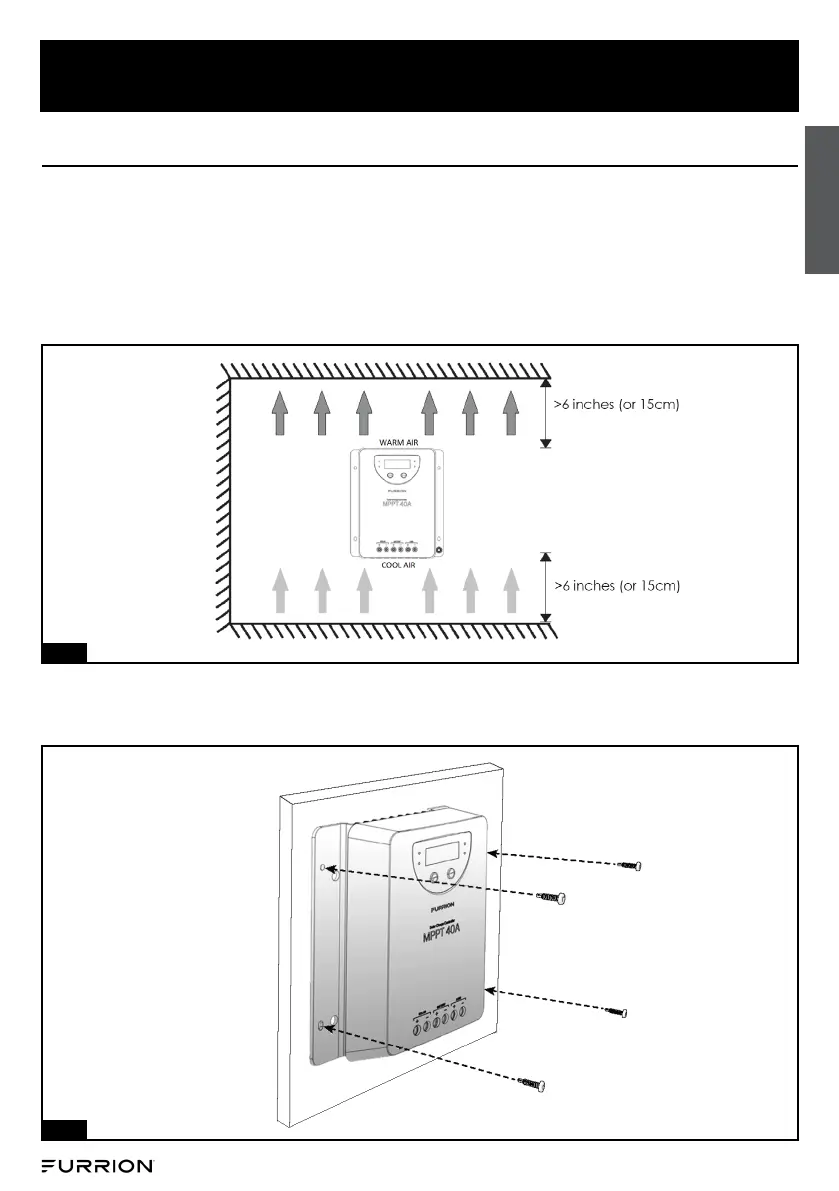

● Maintain a minimum clearance of 6 inches (or 15 cm) above and below and around the controller
to ensure unhindered air circulation. Mount the charge controller as close to the batteries as
possible (for accurate voltage sensing).
● Mark the position of the charge controller’s mounting holes on the wall, drill 4 holes and insert
dowels and ax the charge controller to the wall using appropriate screws and the cable terminal
openings facing downwards.
