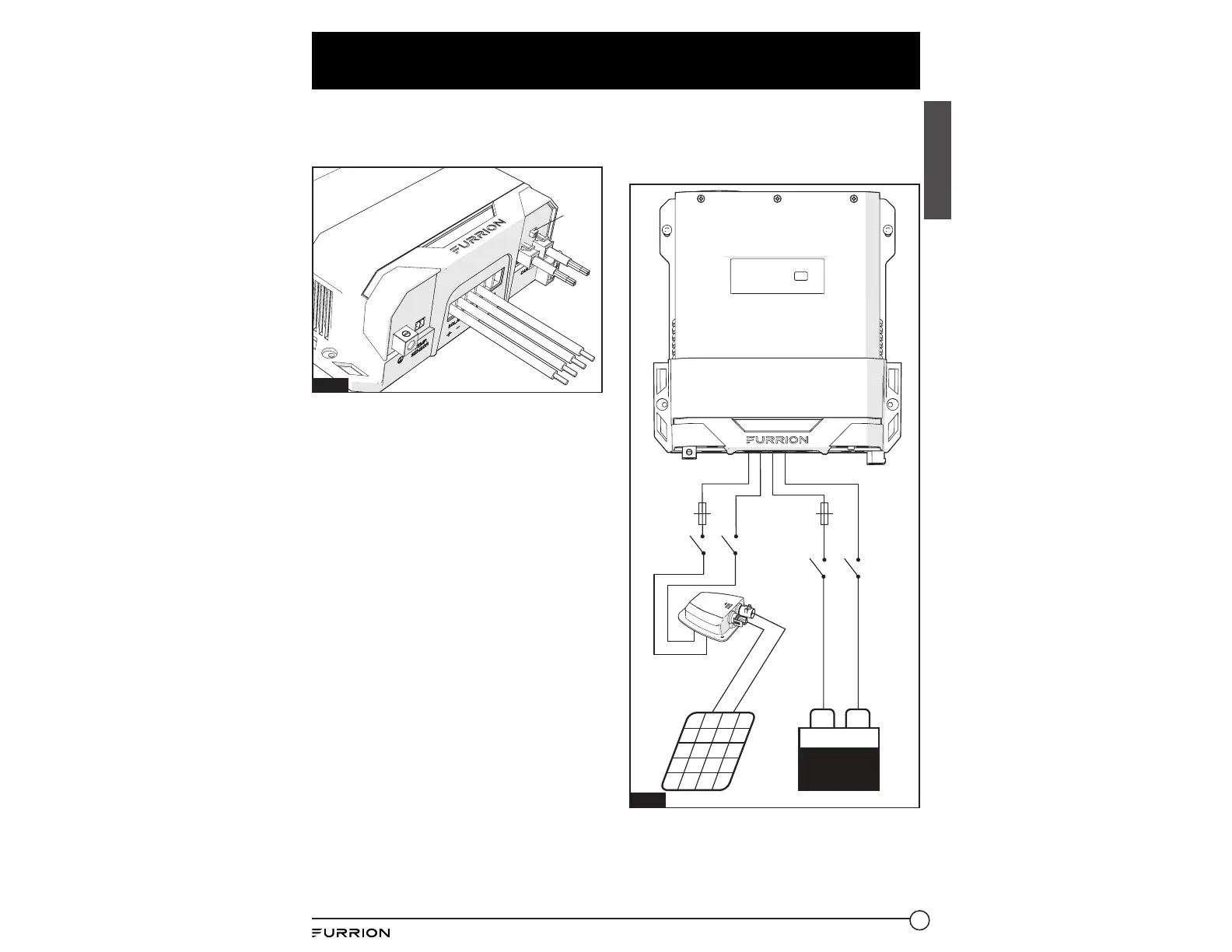

Installation
English
6. Turn on the terminal resistance switch
if communication network is needed.
(Figure 6)
Switch
Fig. 6
7. Turn on the disconnect switch for battery.
(Figure 7)
8. Turn on the disconnect switch for PV
array. (Figure 7)
Battery
+
+ -
-
Switch
Fuse
PV
array
Switch
Fuse
Rooftop Solar
Electrical Box
Fig. 7
