Furuno 1823C Installation Manual

1-7

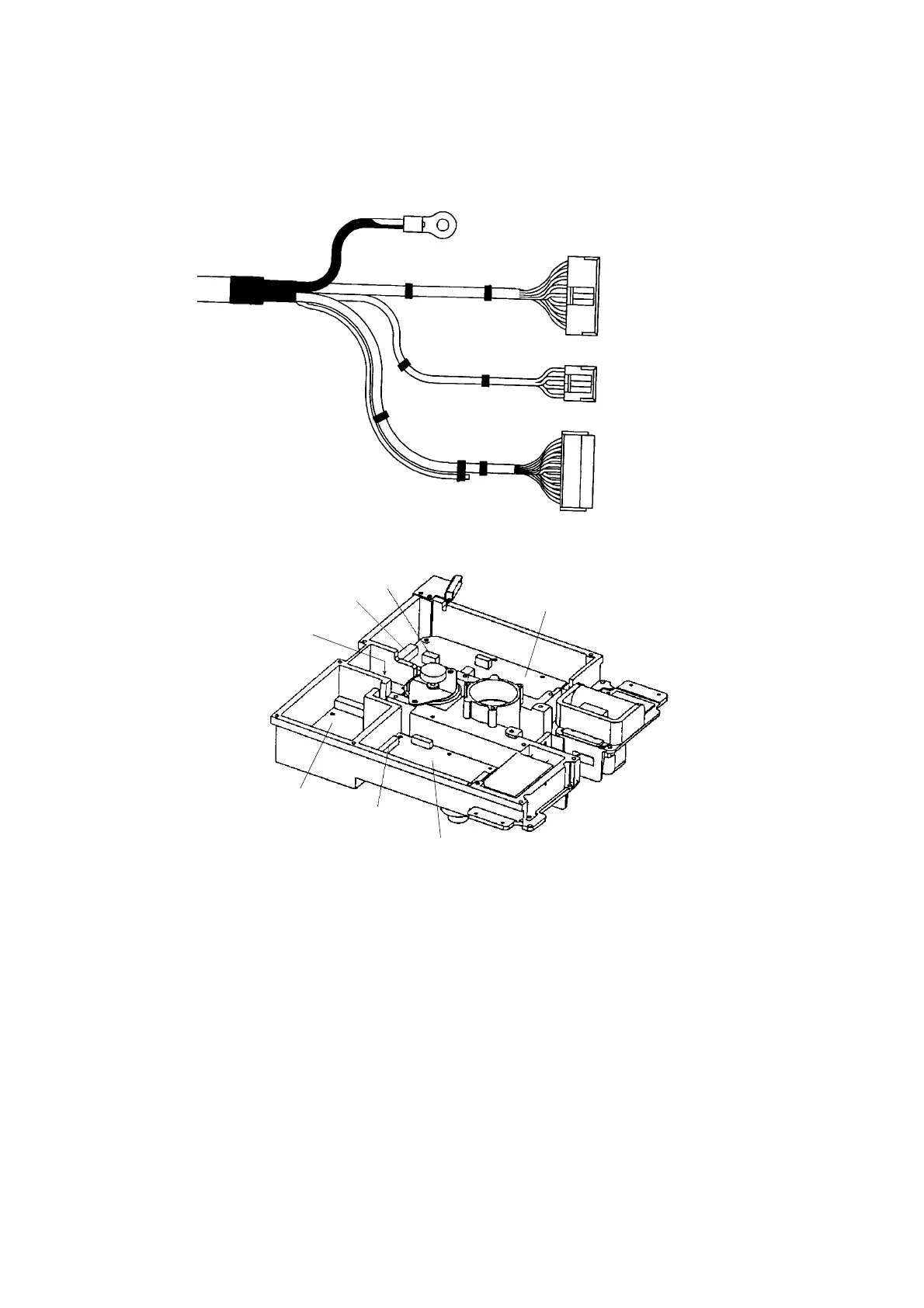

9. Attach three connectors of the signal cable to respective ports as shown below.
to one of the screws
of the cable clamping plate
9-pin connector:
to J801 on MD-9208
4-pin connector:
to J802 on MD-9208
13-pin connector:
to J611 on IF-9214
Signal cable, antenna unit side
J802
J801
J611
MD-9208
IF-9214
PTU-9335
Cable
entry
RF unit
