1-8

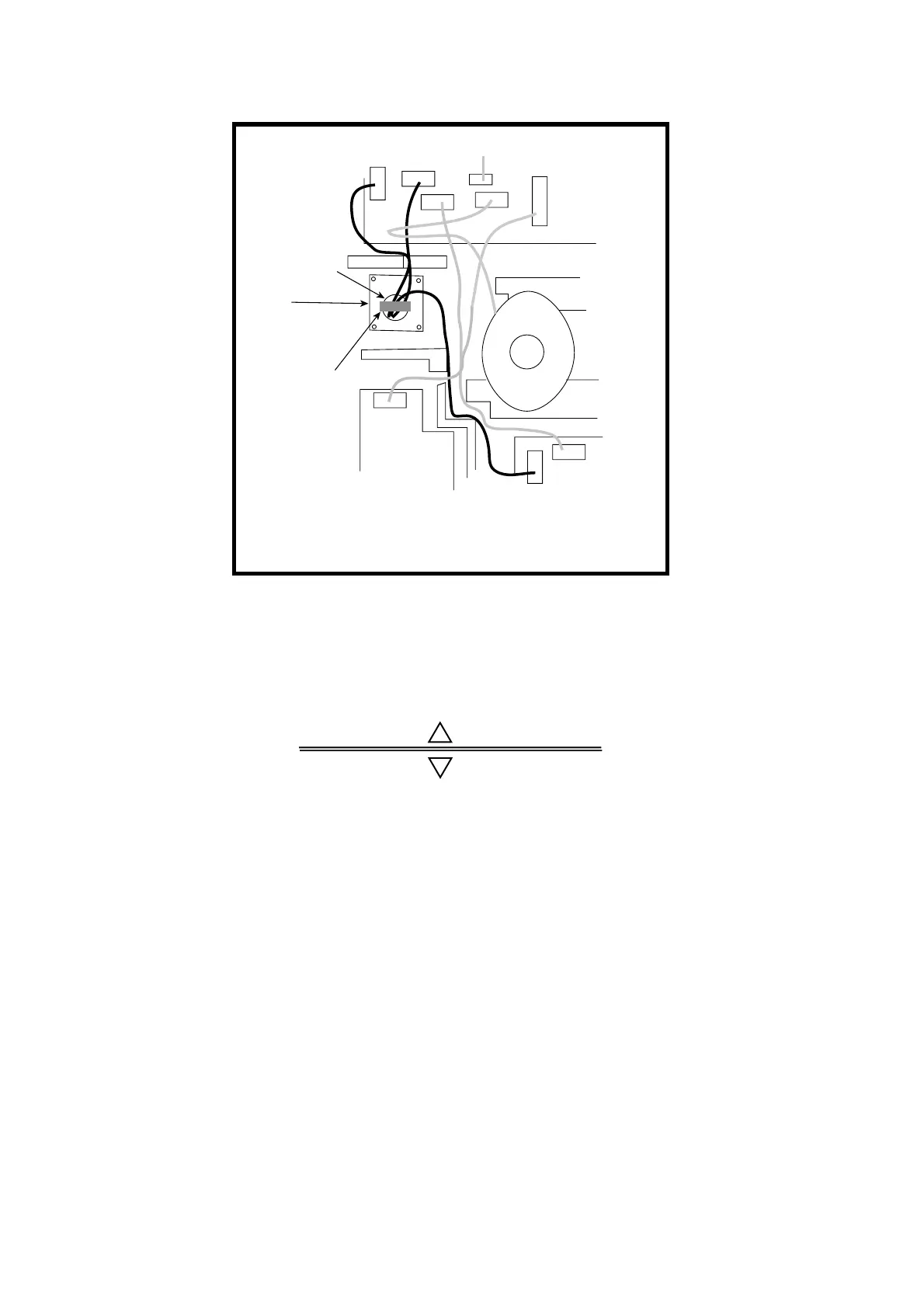

10. Attach the EMI cores supplied as shown below.
J806
J805
J803
J804
J802
J801
Motor
J613
J611
J1
EMI core
E04SS251512
(Above cable
clamping
plate)
Cable
entrance
IF9214IF9214A
PTU-9335
MD-9208
Cable
clamping plate
How to attach EMI core
11. Fix the shield cover. Do not pinch the cable.
12. Attach the radome cover, aligning triangle mark on radome cover with that on radome
base.
Radome cover
Radome base
How to position the radome cover
13. Loosely fasten the radome fixing bolts. You will tighten them after confirming magnetron
heater voltage.
To Next Page
