4. INSTALLING OPTIONAL EQUIPMENT
4-2
2. Fasten the GYRO CONVERTER board in the processor unit with five washer head
screws and male connector 231-607/019-FUR (called J602) with two screws.
Connector (231)
231-607/019-FUR
1
7
Connector (231)
231-107/026-FUR
1
7
GYRO CONVERTER board
64P1106A
Screw M3X8 5 pcs
(Torque 0.78Nm)
Screw M2.6X10 2 pcs
(Torque 0.39Nm)

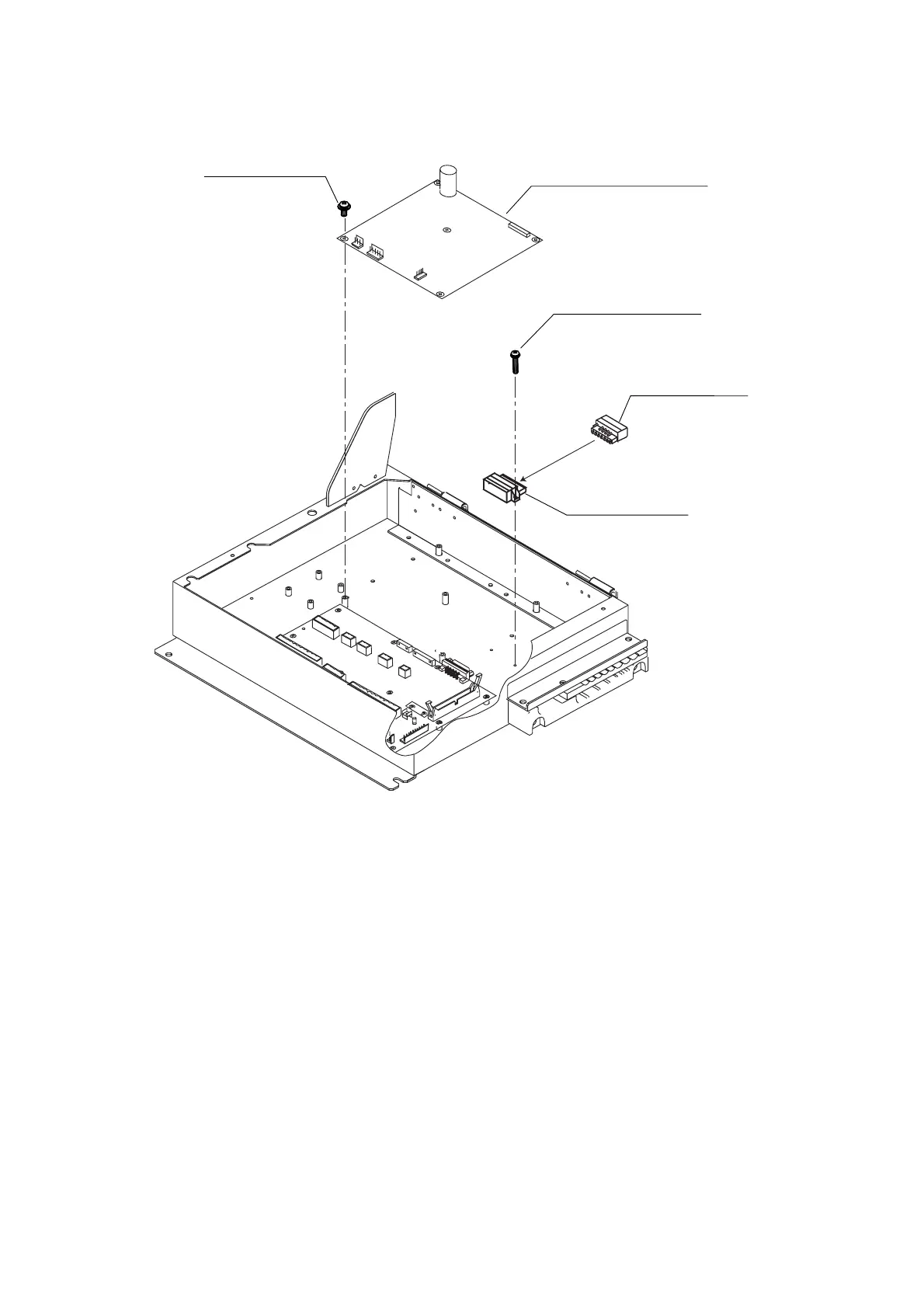

Attaching GYRO CONVERTER board in the processor unit
3. Connect the GYRO CONVERTER board and the 03P9342 board with connector
assemblies 03-2088 and 03-2091.
