35
8) Put the radome on the radome base as-
sembly. The arrow should face toward
the bow.

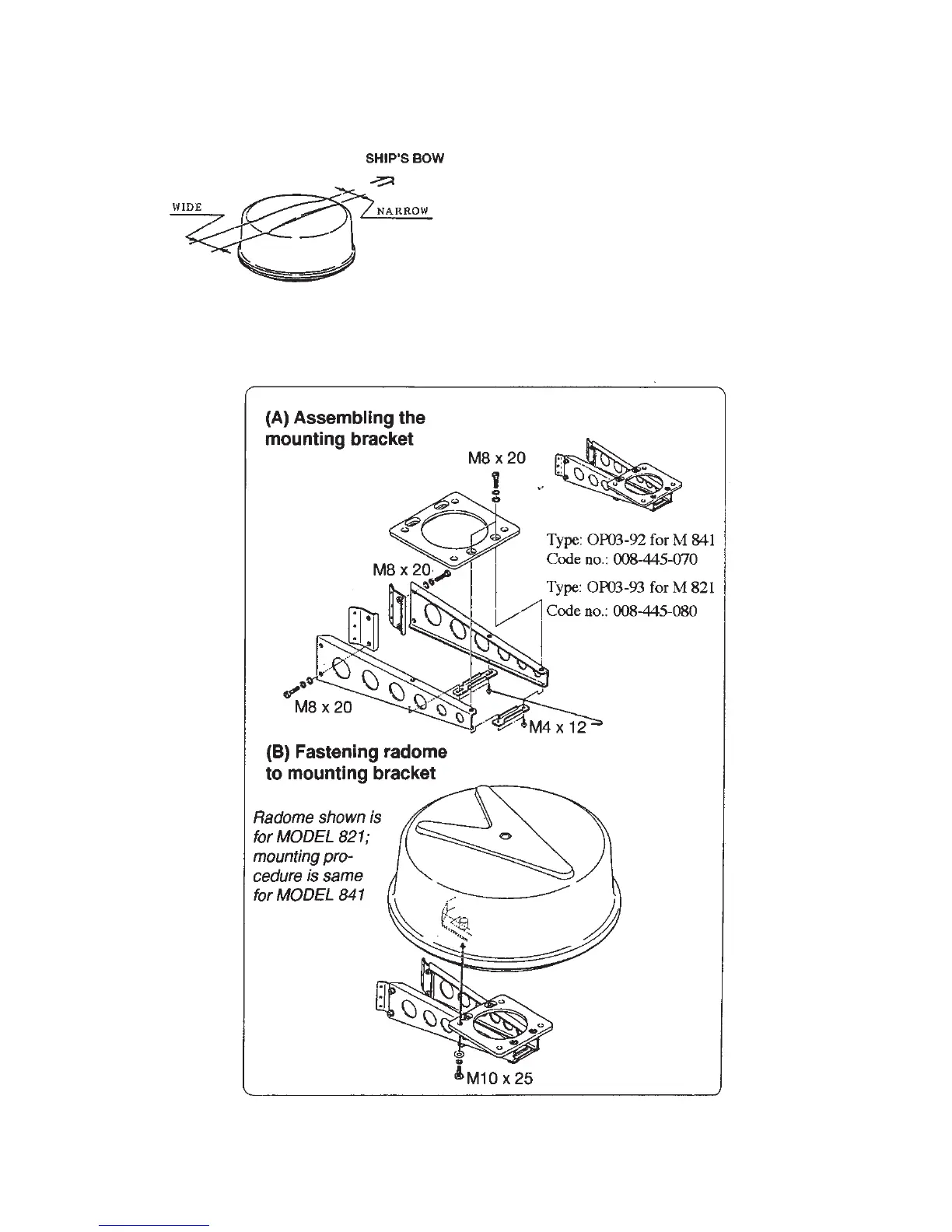

Figure 5-11 How to position the
radome cover (MODEL 841)
9) Tighten the fixing bolts for the radome.
10) The cable run must be properly sup-
ported, and must not be used to provide
impromptu foot-holds or hand-holds!
Clips or hangers should be employed
every 20 cm.
Figure 5-12 Optional mounting bracket installation for sailboat
