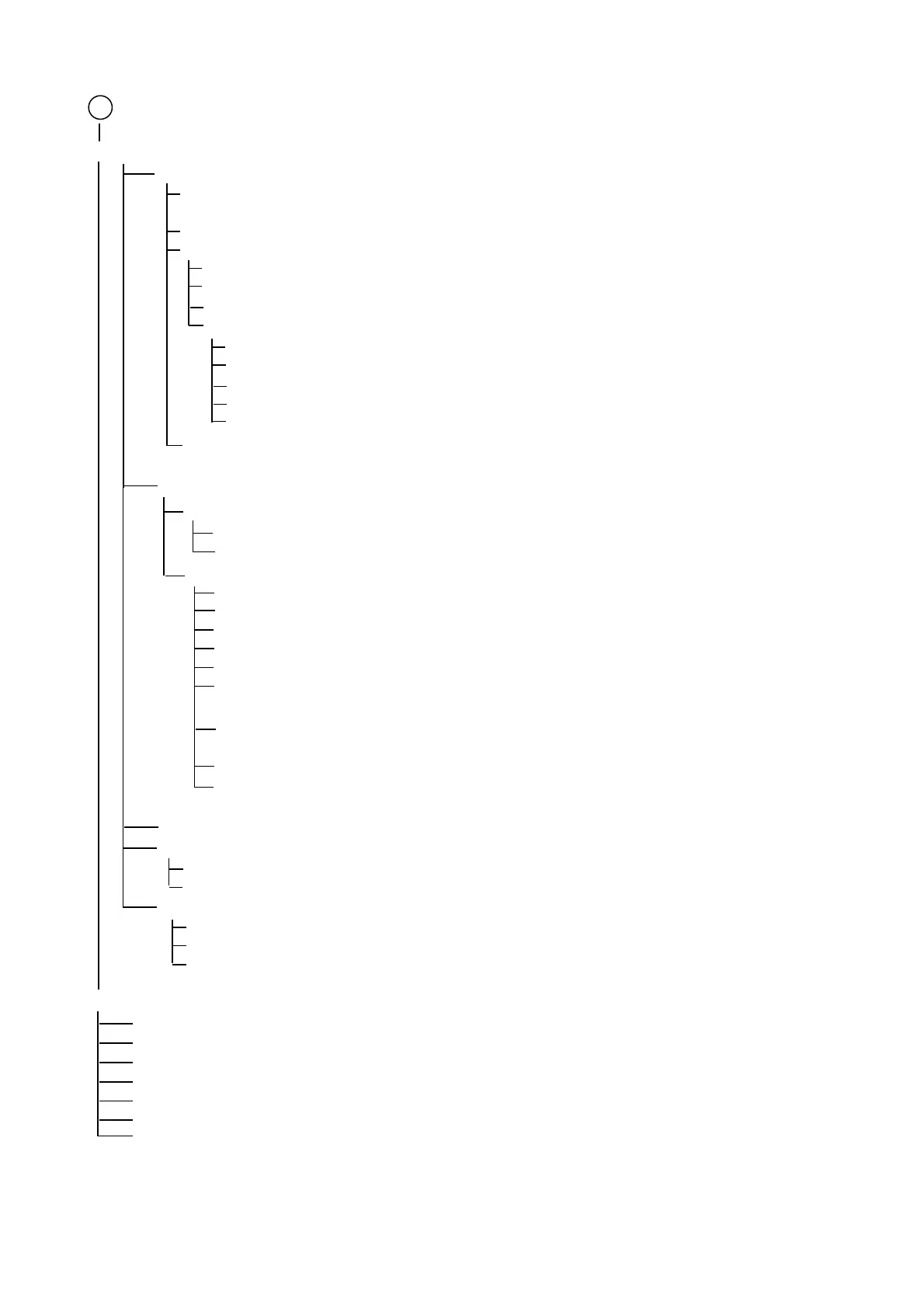

6 SYSTEM SETTINGS
1 SET I/O PORT
1 I/O SPEED (PCI/O, SNSR1, SNSR2, SNSR3, L/R, BCON,
EXTRA1 I/O, XTRA I/O. Setting: 38.4k, 4800)
2 I/O FUNCTION (EXT DISP, LR)
3 I/O PRIORITY
1 L/L, COG, SOG (SN1, 1; SN2, 2: SN3, 3; EX1, 4; LR, 5; PC, 6, LAN, 7)
2 HDG (Same as 1 above)
3 ROT (Same as 1 above)
4 AIS
RESPONSE (PC, LAN, NONE, EX1, LR)
EX1 (ENBL, DSBL)
LR (ENBL, DSBL)
PC (ENBL, DSBL)
LAN (ENBL, DSBL)
4 SET LAN (IP ADRS) (IP ADDRESS 000-000-000-000, SUB)
NET MASK 000-000-000-000, PORT No. 10000)
3 SET L/R MODE (AUTO, MANUAL)
4 SET OTHER I/O
AD-10 (ENBL, DSBL
)
ROT (1-10 s, 1.)
5 SET BUZZER
ALARM (ON, OFF)
CPA/TCPA (ON, OFF)
MSG ALM (ON, OFF)
7 DIAGNOSTICS
1 PROGRAM NO.
2 MEMORY STATUS
3 KEY TEST
4 LCD TEST
5 ON/OFF HISTORY
6 GPS TEST
7 FOR SERVICE
SELECT (1-9)
TIME
MMSI
TYPE
POWER (
12.5W, 2 W)
CH-NO.
CH-A (0000)
CH-B (0000)
MODE
CH-A (TX/RX, RX UNUSED)
CH-B (TX/RX, RX UNUSED)
ZONE: 0 nm (1-8)
CH AREA RIGHT-TOP ( LAT, LON)
LEFT-BOTTOM (LAT, LON)
1 VIEW CHANNEL
2 CHANNEL EDIT
2 SET CHANNEL
POWER (0, 2, 12.5 W
)
CHANNEL NO. (CH-A, 2087, CH-B, 2088
)
