2. WIRING
2-10

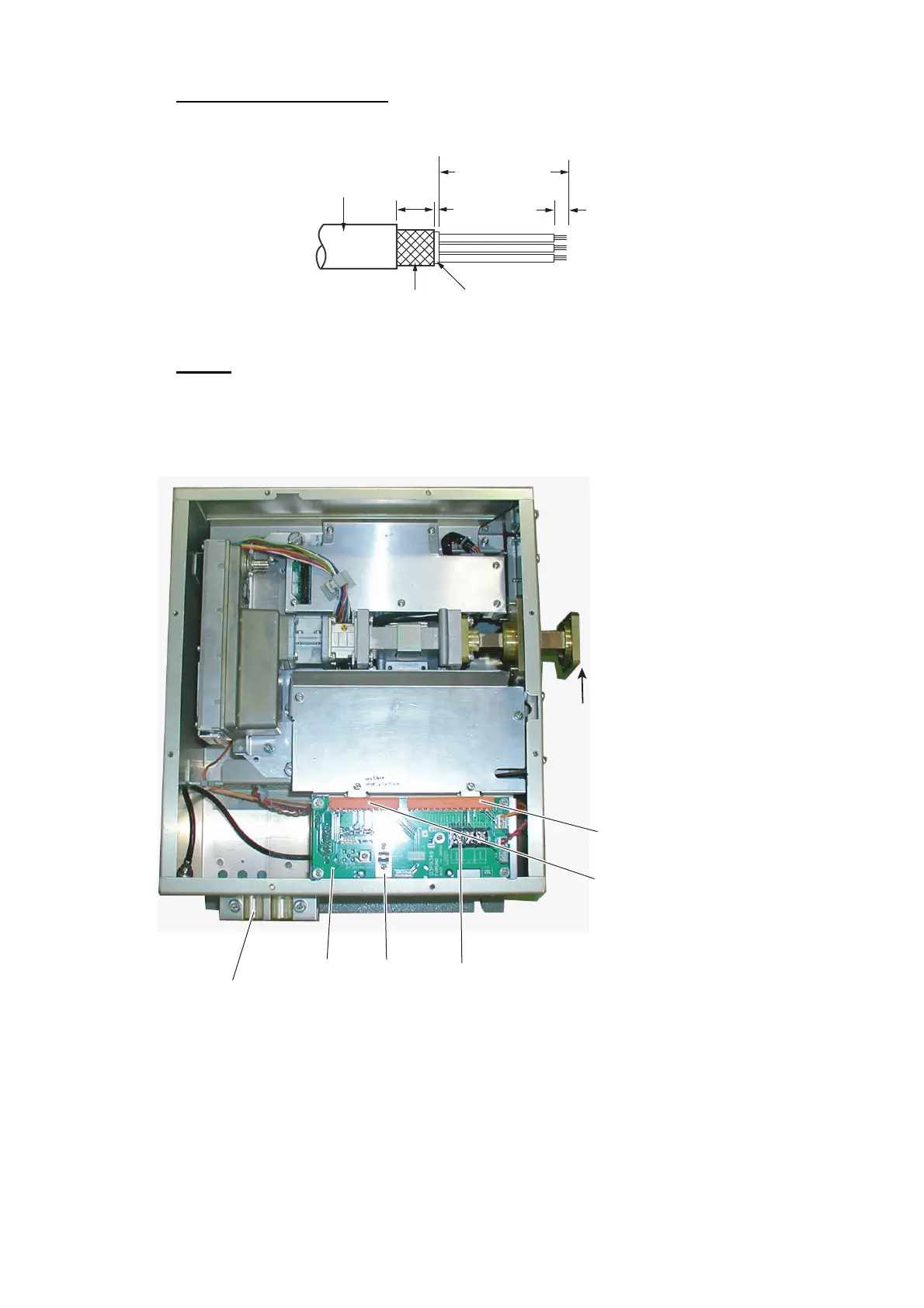

Fabricating of MPYCY-19
1. Fabricate the cable as below.
2. For unused cores, wind the vinyl tape around them to prevent the short circuit.
Wiring
1. Remove the cover from the RTR-081.
2. Pass the cables through the cable entrance of the RTR-081, and then fix the ar-
mors with the cable clamp.
3. Connect each core to TB801, TB802, TB803 and TB804 referring to the intercon-
nection diagram.
4. Connect the grounding wire (shipyard supply) between the ground terminal (be-
hind the cable clamp) and the grounding point.
Vinyl
sheath
Approx. 250
30
5
Armor Vinyl Sheath
6
Do not remove this film.
TB801
TB803
TB804
TB802
TB Board
Cable entrance
To Next Page
