2. WIRING
2-12
2.3.3 FCR-2839SW

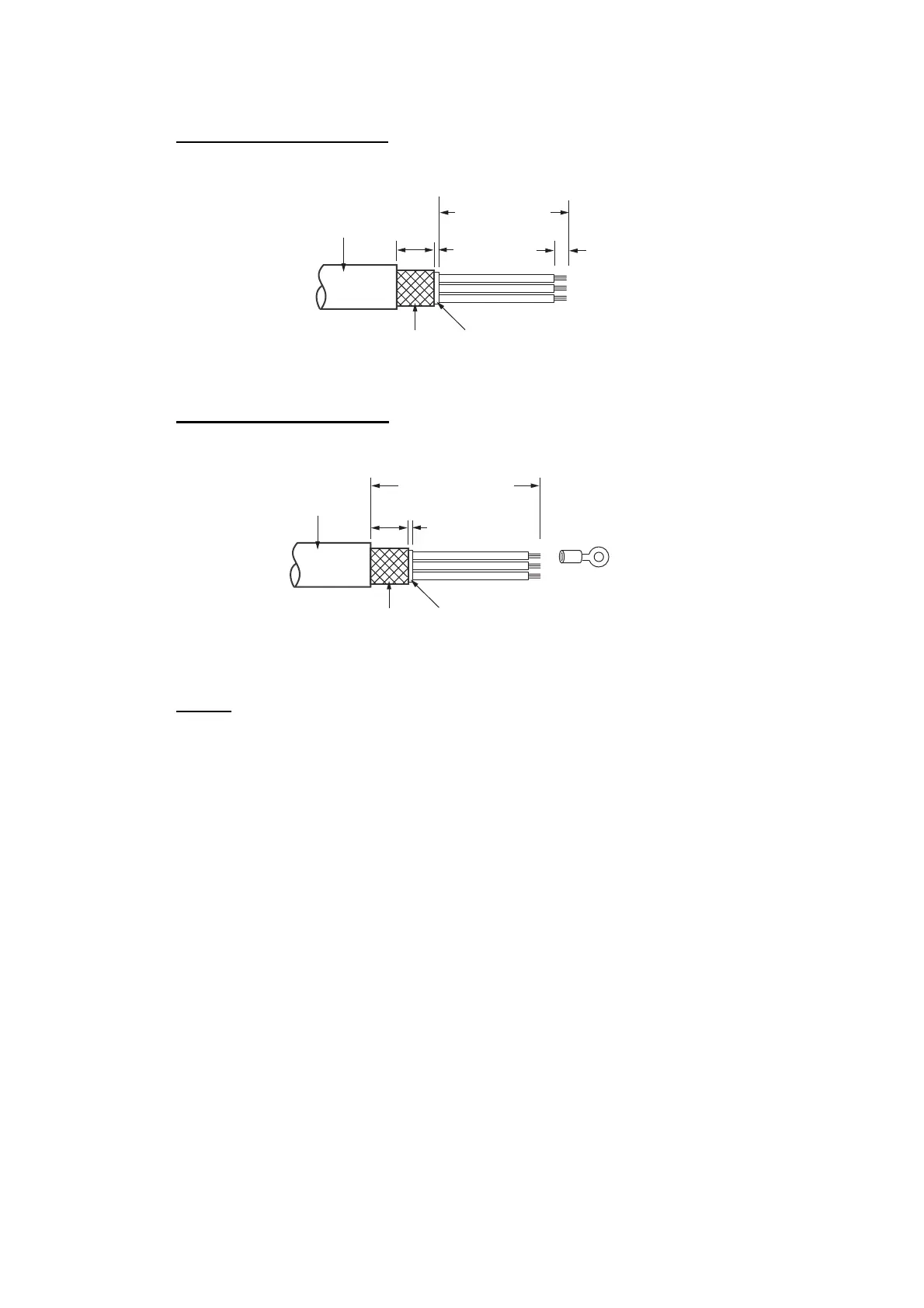

Fabricating of MPYCY-12
1. Fabricate the cable as below.
2. For unused wires, wind vinyl tape around the core to prevent short circuit.
Fabricating of TPYCY-2.5
1. Fabricate the cable as below.
2. Fix the crimp-on lug (FV5.5-4, yellow) to each conductor.
Wiring
1. Remove the cover from the RTR-082.
2. Pass the cables through the cable entrance, and then fix the armor with the cable
clamp.
Vinyl
sheath
Approx. 250
30
5
Armor Vinyl Sheath
6
Vinyl
sheath
Approx. 170 mm
30 mm
5 mm
FV5.5-4
Armor Sheath
To Next Page
