6. WEB FUNCTIONS
6-43

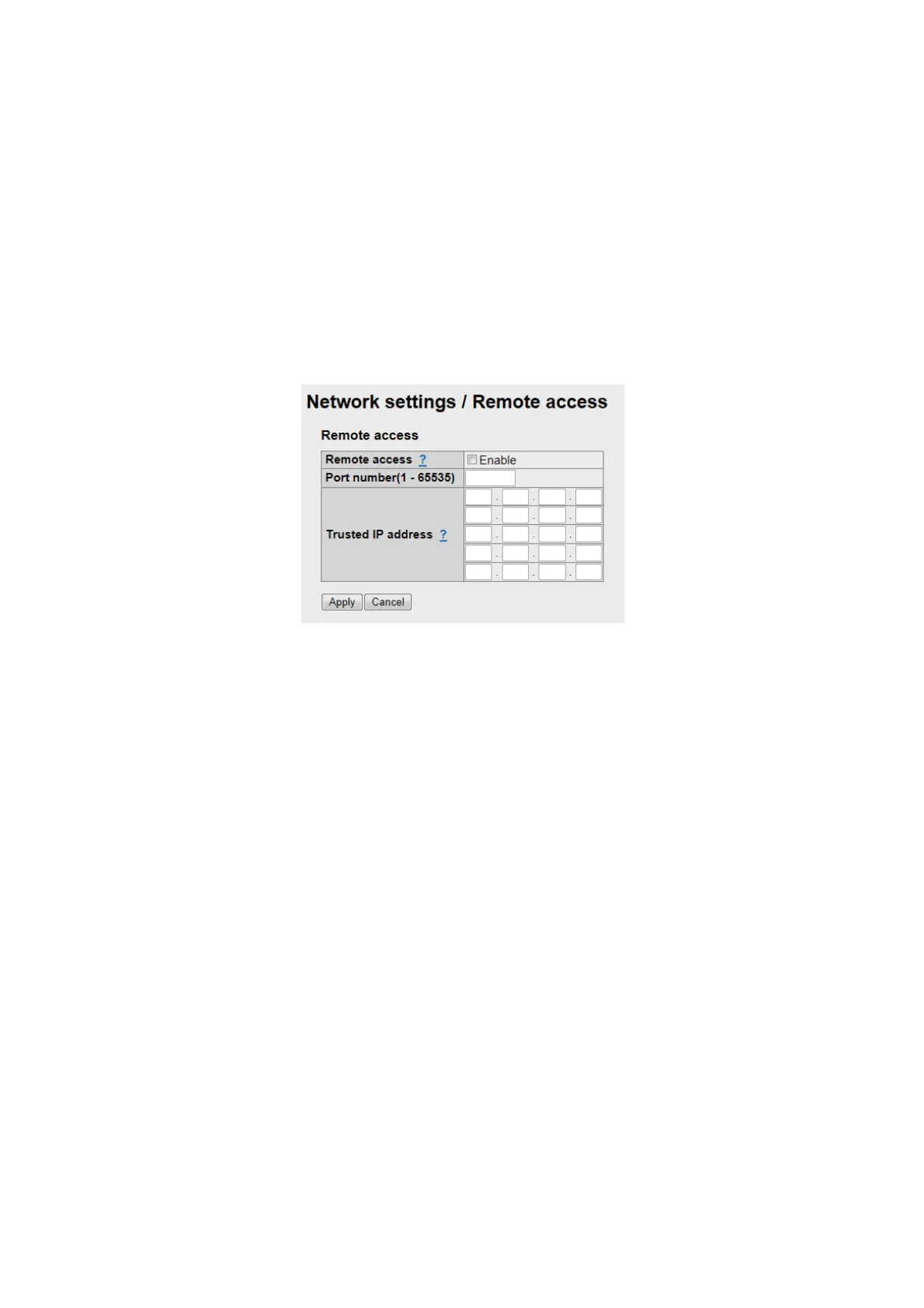

6.1.12 How to set the Remote access
The Remote access lets you access the web menu settings of FELCOM250/500 via
internet.
Note 1: The following settings are recommended:
• Select a port number that is not narmally used.
• Use an IP address which has access.
Note 2: The Remote access settings must be done by the network administrator.
1. Click [Settings] in the menu bar.
2. Click [Network settings].
3. Click [Remote access].
4. Put the [9] mark in the checkbox beside [Enable]. To deactivate this function, re-
move the checkmark.
5. Enter the port number in [Port number] (1-65535).
Set the port number and then access http://<Global IP address>:<Port number>.
6. Set [Trusted IP address] as appropriate. Enter the IP address allowed to access.
If no IP address is entered, all IP addresses can access the web menu of
FELCOM250/500.
7. Click the [Apply] button. After completing the setting, the message "Completed"
appears.
8. Click the [OK] button.
To Next Page
