5.1 Configuration
5-7
Connecting IB-581/583
IB-581 can be connected to the transceiver unit as below. The printer is connected via
IF-8500.

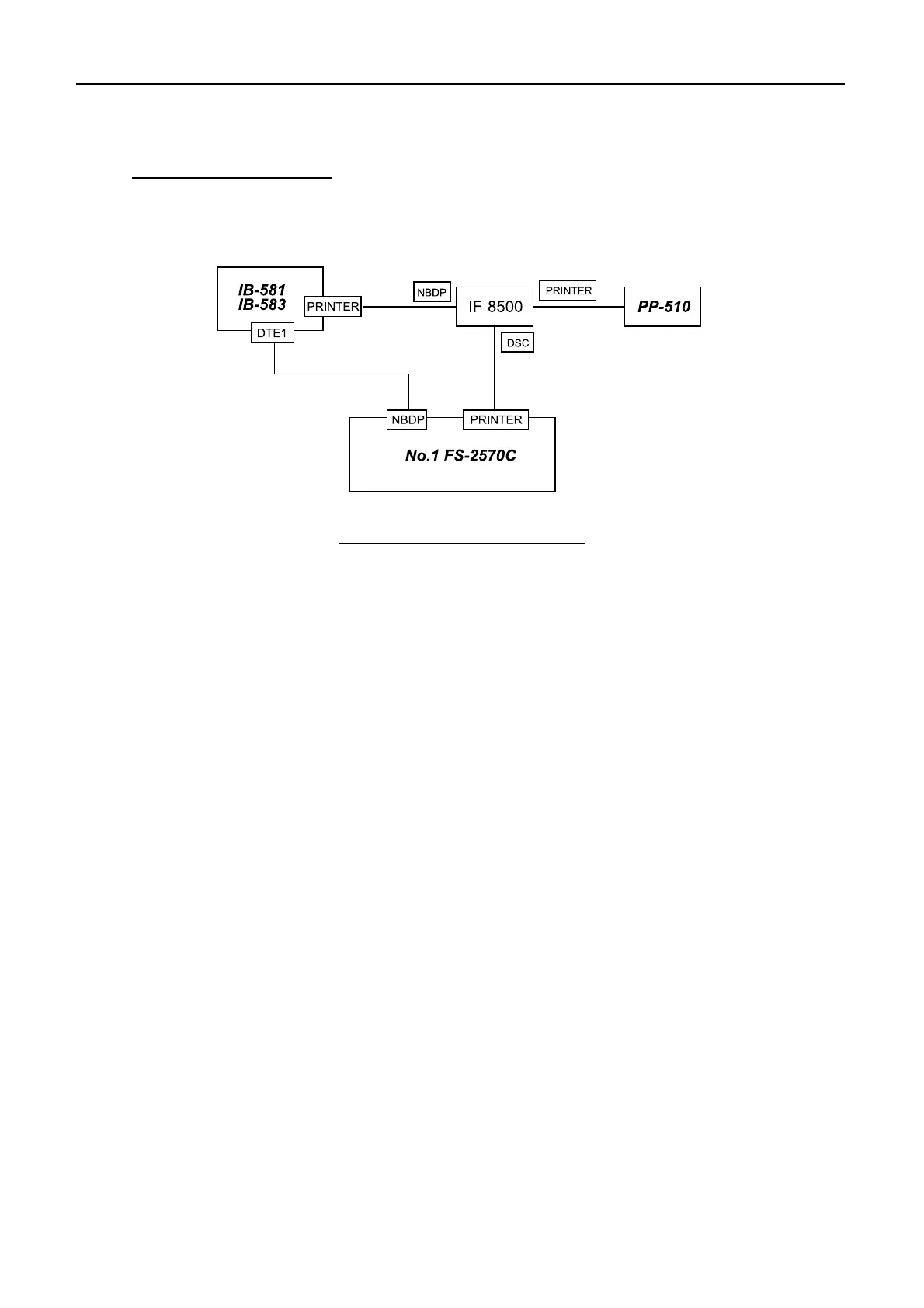

Fig.5.1.5 Connecting IB-581/583
