Site preparation
2-9

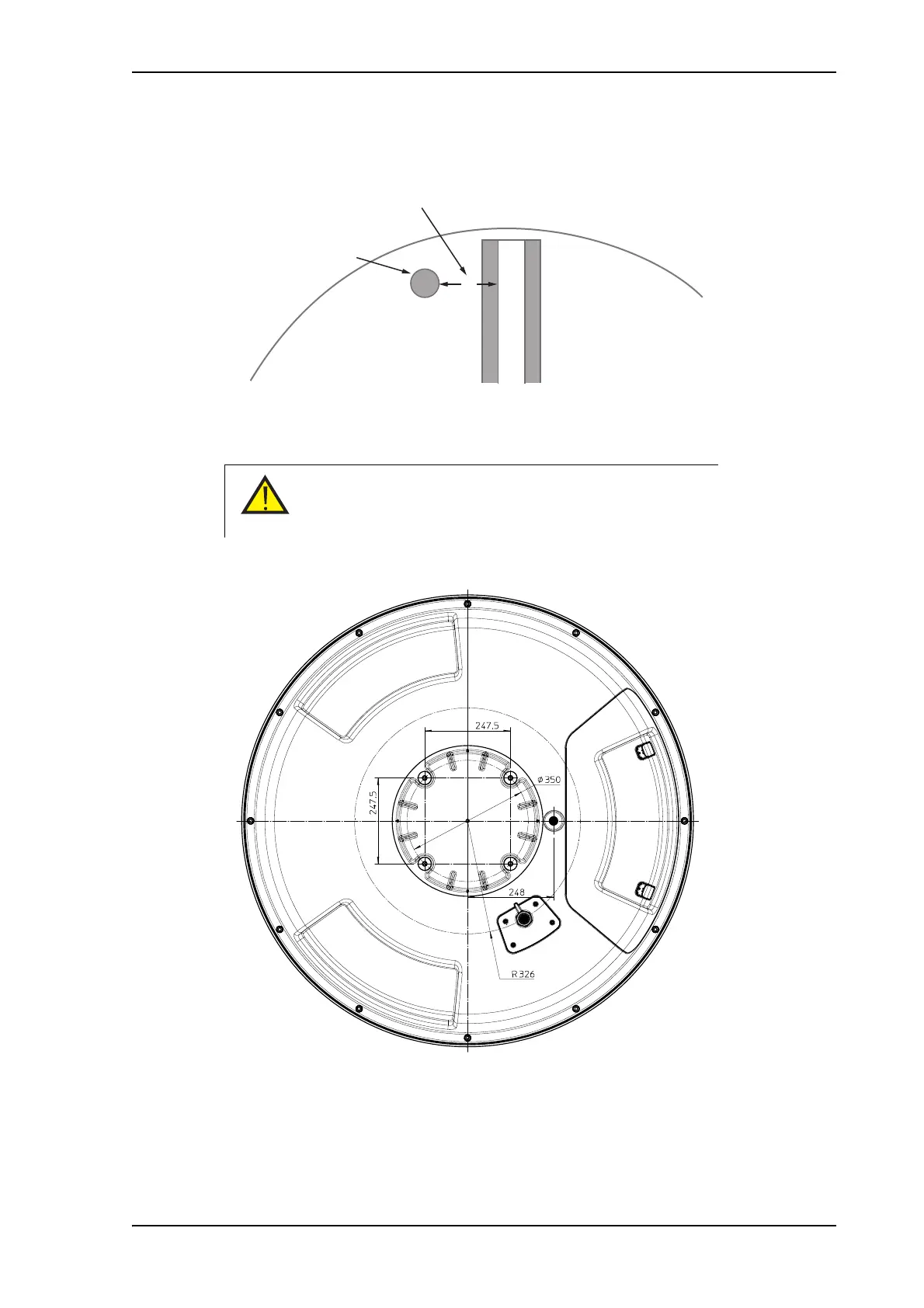

Figure 2-8:
ADU mast flange, distance to the welded seam
CAUTION! Avoid sharp edges where the flange is in
direct contact with the radome. Round all edges as much as
possible to avoid damaging the surface of the radome.
Figure 2-9: FV-110: ADU, bottom view
50
Welded seam
Welded seam
Gusset plate
Allow sufficient space so the
nut is free of the welded seam
and there is room for tools
(min. 50 mm).
Clearance hole
for M12 bolts
