Installation of the ADU
2-21
Select a suitable size for the cable gland: 16—20 mm diameter or 19—23 mm
diameter. See also N-connector interface on the ADU on page 2-22 for a more detailed
drawing how to connect the N-connector on the ADU.
Ensure that the connector assembly is properly protected against seawater and
corrosion. As a minimum, wrap it with self-amalgamating rubber.
10.Put the protection plate in place and fasten the 4 bolts (picture 5).
11.Fasten the nut.
Where the cables are exposed to mechanical wear — on deck, through bulkheads, etc. –
protect the cables with steel pipes. Otherwise, follow standard procedures for cabling in
ship installations.

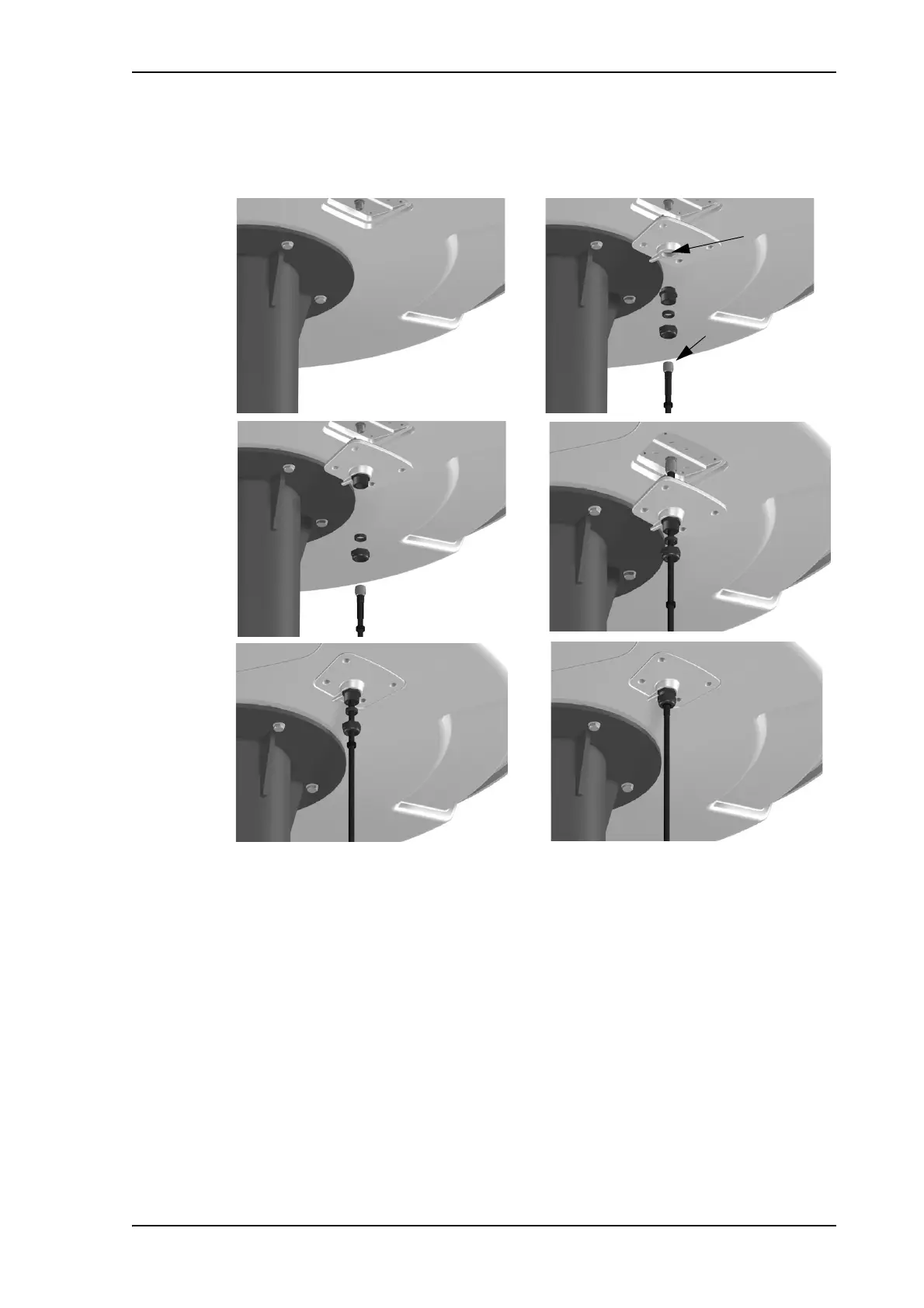

Figure 2-18: FV-110: Connecting the ADU cable
Protection plate
N connector
1
2
3
4
5
6
To Next Page
