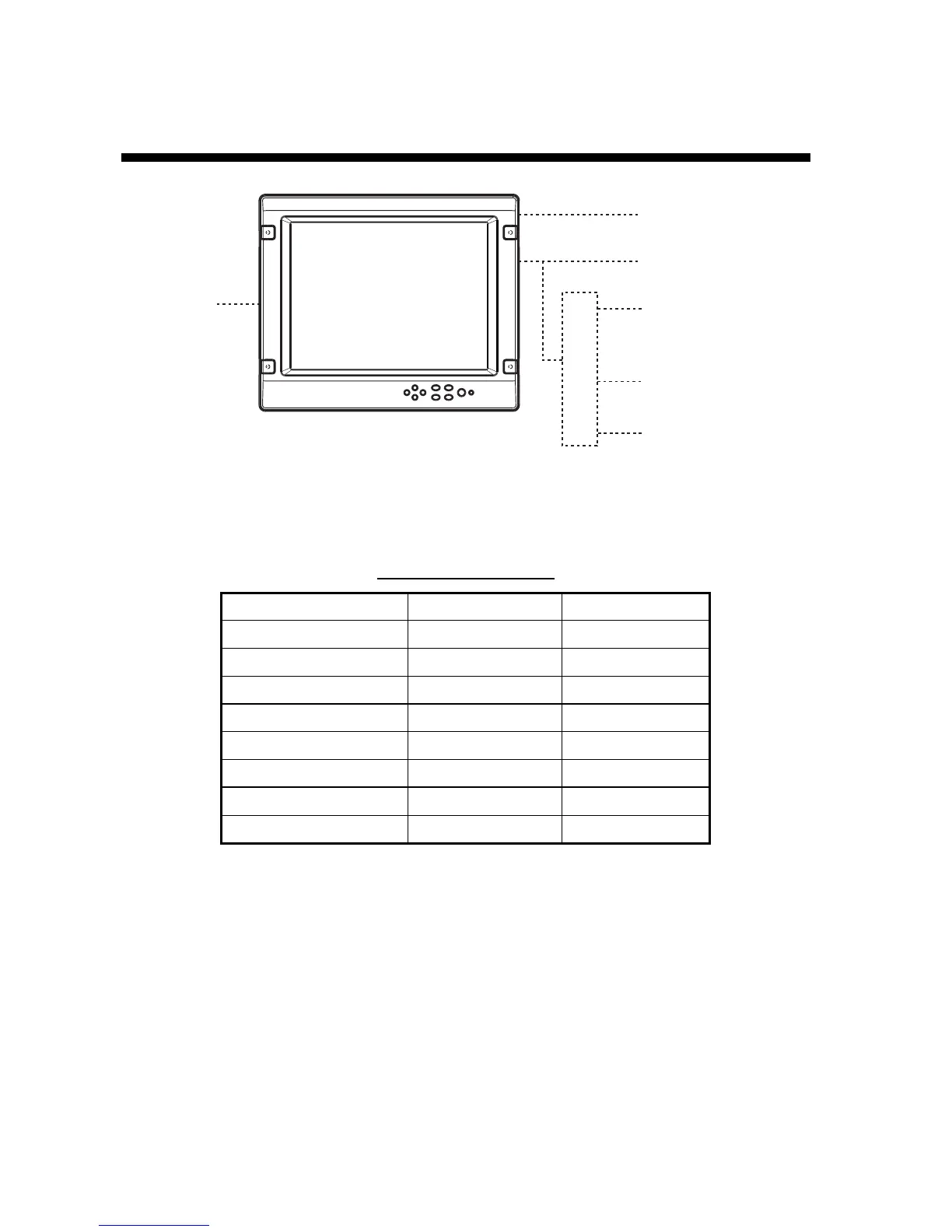

SYSTEM CONFIGURATION
100-230 VAC
NMEA
0183
RGB
DVI
Radar
(FAR-2117/2817 series)
IF-
8000
Video Plotter, Video Sounder,
Scanning Sonar, Radar, etc.
Navigator (GPS, etc.)
Control unit of
Video Sounder or
Scanning Sonar*
Multi-purpose LCD display MU-201C
*: When connecting the FCV-1200L or
CH-250 as the main display unit,
connect it to the interface unit (IF-8000).
Processor unit of
Video Sounder,
Transceiver unit of
Scanning Sonar*
Connectable equipment
Equipment
Resolution*
Image output
FC
V
-30 SXGA, XGA RGB
FS
V
-24/30 SXGA RGB
FC
V
-1200L VGA RGB
FR-2105 SXGA RGB
FAR-2117/2817 series SXGA DVI
GD-280/380/680 VGA RGB
CH-250/270/300 VGA RGB
CI-68/88 VGA RGB
*: SXGA: 1280x1024 dot, XGA: 1024x768 dot, VGA: 640x480 dot
Note1: Portrait orientation equipment cannot be connected to the MU-201C.
Note2: Non-VESA equipment cannot be connected to the MU-201C.
Note3: When inputted signal differs in resolution, characters and lines are not shown
clearly.
Note4: Missing dot, limited viewing angle and display flicker are inherent characteristics of
the LCD color display.
Note5: It takes about five seconds to switch the signal between RGB and DVI.
