POWER

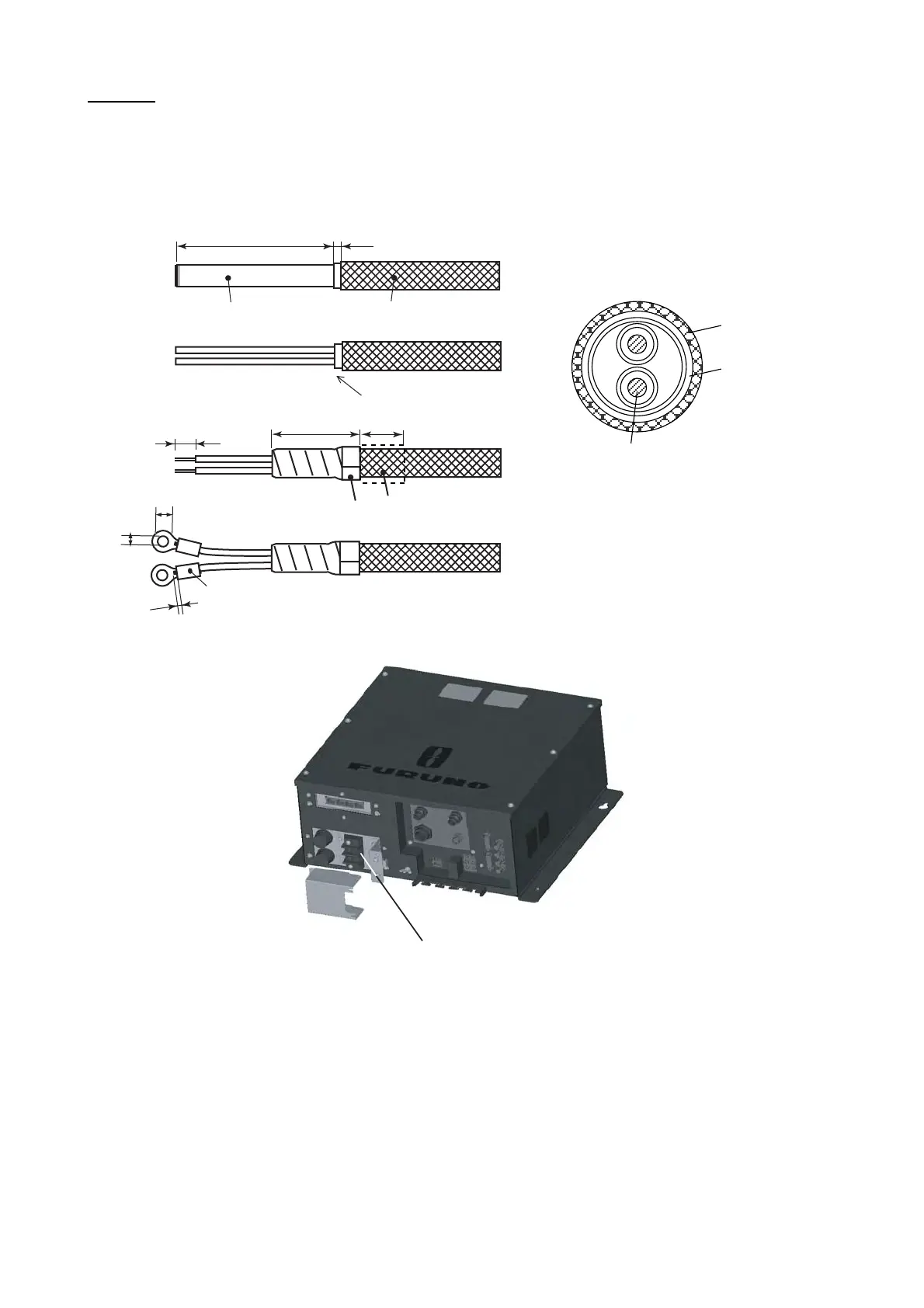

Fabricate the power cable (DPYC-6 or equivalent) as shown below. Unfasten four pan head
screws to remove the power terminal cover, and then connect the power cable DPYC-6 to the
power terminal (upper: +, lower: -). Reattach the cover. The maximum cable length should be with-
in 5 m.
Conductor
S = 6 mm
φ = 3.12 mm
2
DPYC-6
Armor
Sheath
φ = 15.2 mm
47
3
7
Armor
Cut the sheath.
Vinyl tape
Sheath
20
1
Crimp-on lug (local supply)
20
Remove the paint.
5.5
8 to 12
Power terminal
Power
terminal
cover
