Furuno NAVNET 3D MFDBB Installation Manual

11
NETWORK 1 to 4

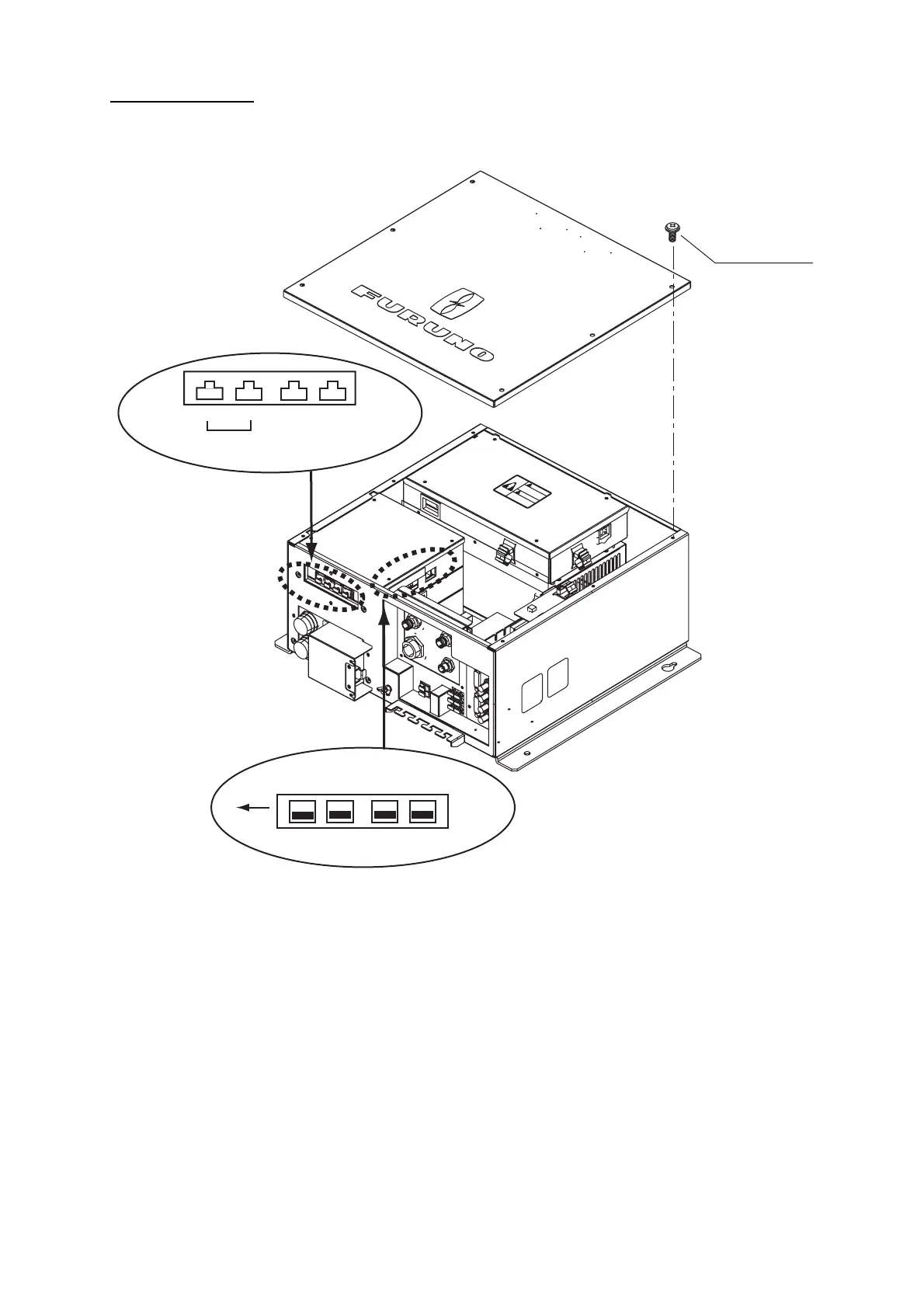

The DIP switch inside the processor unit functions to enable/disable the network ports. The num-
ber on each DIP switch corresponds to port number. Turn switches on for the connected ports..
Note 1: When connecting PC(s), confirm that the DIP switch(es) corresponding to the PC port(s)
are turned OFF.
Note 2: The control unit(s) should be connected to the NETWORK 1 and/or 2 port(s) directly, not
via the HUB-101.
ࠞࡃ࡯ߩౝㇱߦߪޔ⛘ኻߦ
⸅ࠇߥ޿ߢߐ޿ޕ
Do not tou
ch part
s in-
side this cover
.
ᗵ㔚
ߩᕟ
ࠇ޽ࠅޕ
ෂ 㒾
Electrical shoc
k
ha
z
ard.
DANGER
Binding screw
M4x8, 6 pcs.
NETWORK
DIP switch
ON
OFF
Front
1 2 3 4
1 2 3 4
ONLY
MCU-001
DCU12
