2. HOW TO SETUP THE MENU
14

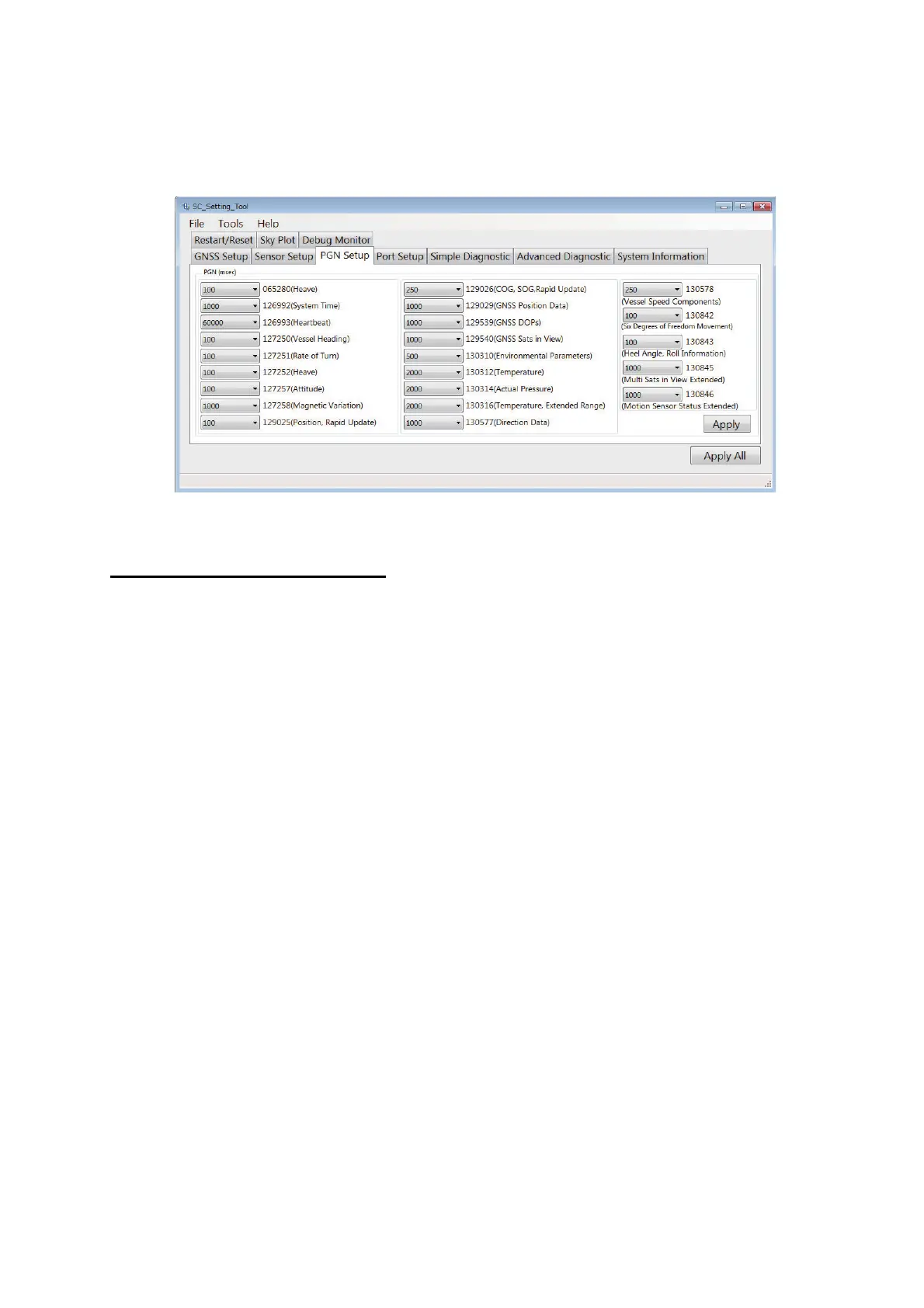

2.4 [PGN Setup] Tab (SC-33/SCX-20 Only)
You can enable/disable PGN output from the SATELLITE COMPASS
™
and adjust transmission
rate from the [PGN Setup] tab.
Note: The [PGN Setup] tab is not used in the SCX-21. You can open the tab, however all setting
items are grayed out and cannot be adjusted.
How to set the transmission rate
All PGNs that the connected SATELLITE COMPASS
™
can output are shown on the [PGN Setup]
tab. Unavailable PGNs are grayed out and the setting cannot be adjusted.
To change the transmission rate, click the drop down list for the PGN to be set and select the ap-
propriate value. If you want to disable the PGN, select [Off]. The setting range changes according
to the PGN. For the setting range of each PGN, see "MENU TREE" on page AP-1.
Note: Normally, keep the default setting. If there is a need to change the transmission rate, only
change the rate for necessary PGNs. An excessive number of PGNs with a low transmission rate
can cause problems with PGN output and transmission rates.
