1. OPERATIONAL OVERVIEW
3

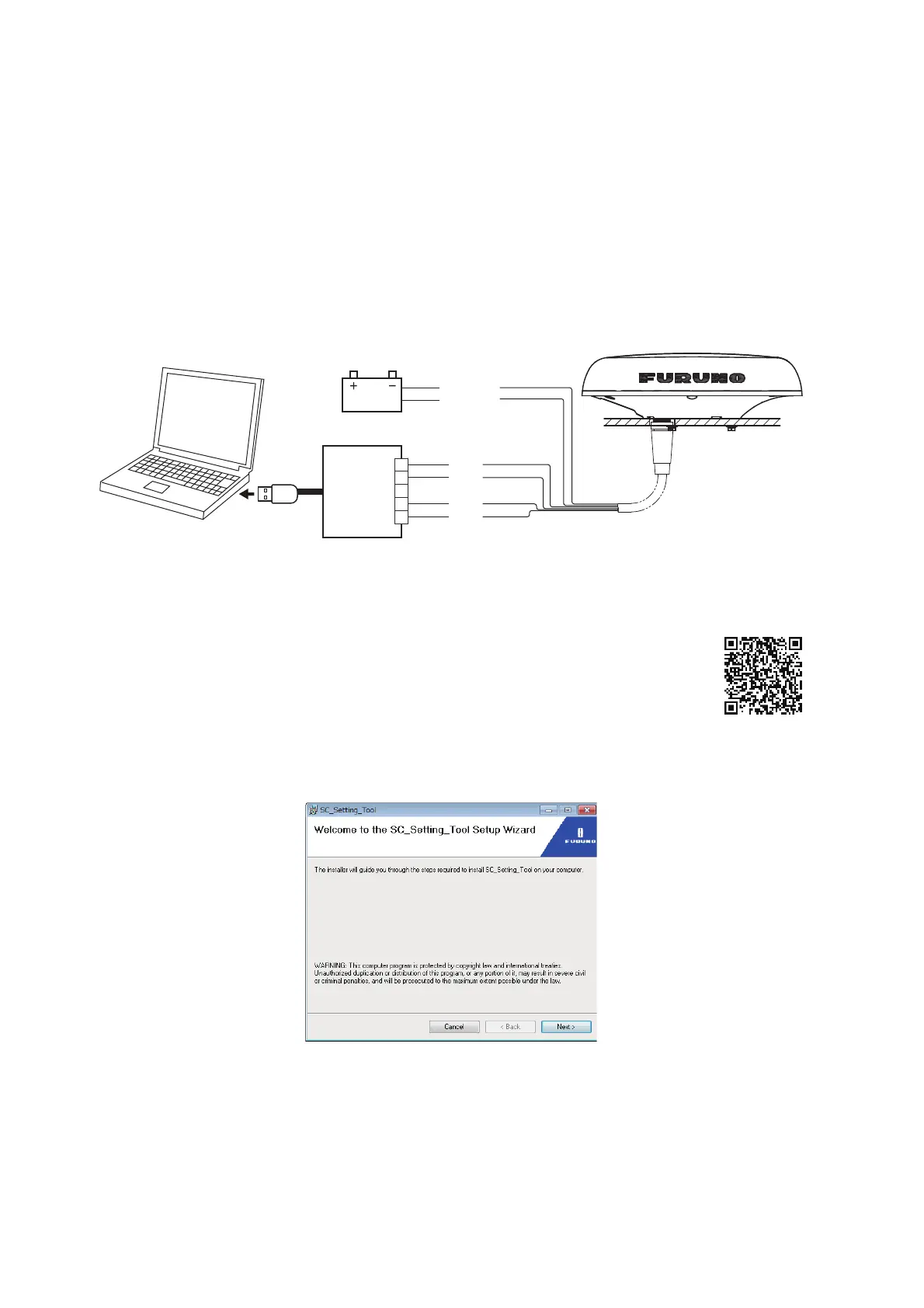

1.2.2 NMEA0183 serial connection (SCX-21)
You can connect the PC and SATELLITE COMPASS
™
(SCX-21) via the NMEA0183 serial con-
nection. Prepare a serial-USB converter (local supply), between the PC and the NMEA0183 port.
For the serial-USB converter, use the HuMANDATA USB-003 Rev6.
A software driver is required to use the HuMANDATA USB-003 Rev6. Download the driver from
the program CD supplied with the converter or official website of the manufacturer, then install the
driver. The URL of the driver download page is as follows:
https://www.hdl.co.jp/en/faspc/Drivers/
1.3 How to Install the SC Setting Tool
The executable file of the SC setting tool must be downloaded beforehand, using
the quick response code shown right.
Install the SC setting tool as follows:
Note: Login as administrator to install the SC setting tool.
1. Run the executable file of the SC setting tool (file name: SC_Setting_Tool_Installer.msi).
The following setup wizard appears.
SATELLITE COMPASS
TM
Power supply
USB
USB-003 Rev6
DC_P_IN
DC_N_IN
1
2
3
4
5
A (RD+)
B (RD-)
GND
Y (SD+)
Z (SD-)
TD-B
TD-A
RD-C
RD-H
PC
12-24 VDC
