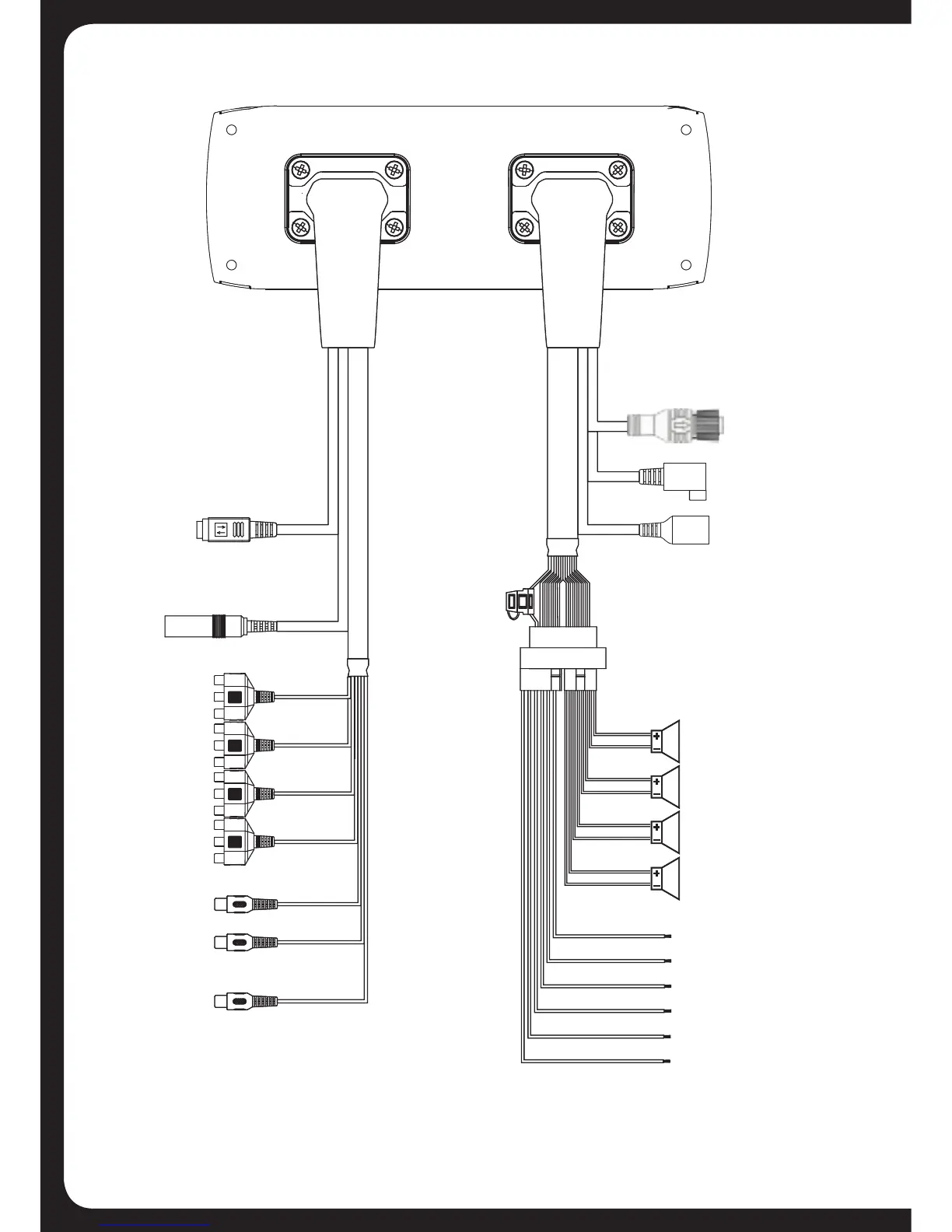

Fusion MS-IP700i

33
SiriusXM
ANTENNA
REMOTE CONTROL
(NMEA2000)
ETHERNET CONNECTION
ZONE 1
ZONE 2
ZONE 3
ZONE 4
AUX INPUT
VIDEO OUTPUT
ZONE 1
LEFT
LEFT
RIGHT
LEFT
WHITE
RED
YELLOW
RIGHT
RIGHT
ZONE 2
YELLOW
WHITE
WHITE/BLACK
GREY
GREY/BLACK
GREEN
GREEN/BLACK
PURPLE
PURPLE/BLACK
RED
BLACK
BLUE
ORANGE
BROWN
L (white)
R (RED)
SUB (ORANGE)
L (white)
R (RED)
SUB (ORANGE)
L (white)
R (RED)
SUB (ORANGE)
L (white)
R (RED)
SUB (ORANGE)
USB CONNECTION
(MS-AV700 ONLY)
(USB storage device or
FUSION dock)
BATTERY
(+12VDC)
ACCESSORY
(+12VDC)
NEGATIVE GROUND
(GND)
AMPLIFIER ON (OUT)
DIM (input) +12VDC
TELEMUTE (input) -12VDC
USB CONNECTION
(iPod, iPhone, MTP device, USB
storage device or FUSION dock)
SiriusXM Tuner
OR
MS-BT200
Bluetooth module
