Assembly / Adjustment
2PC / 2PCKA
Assembly / Adjustment

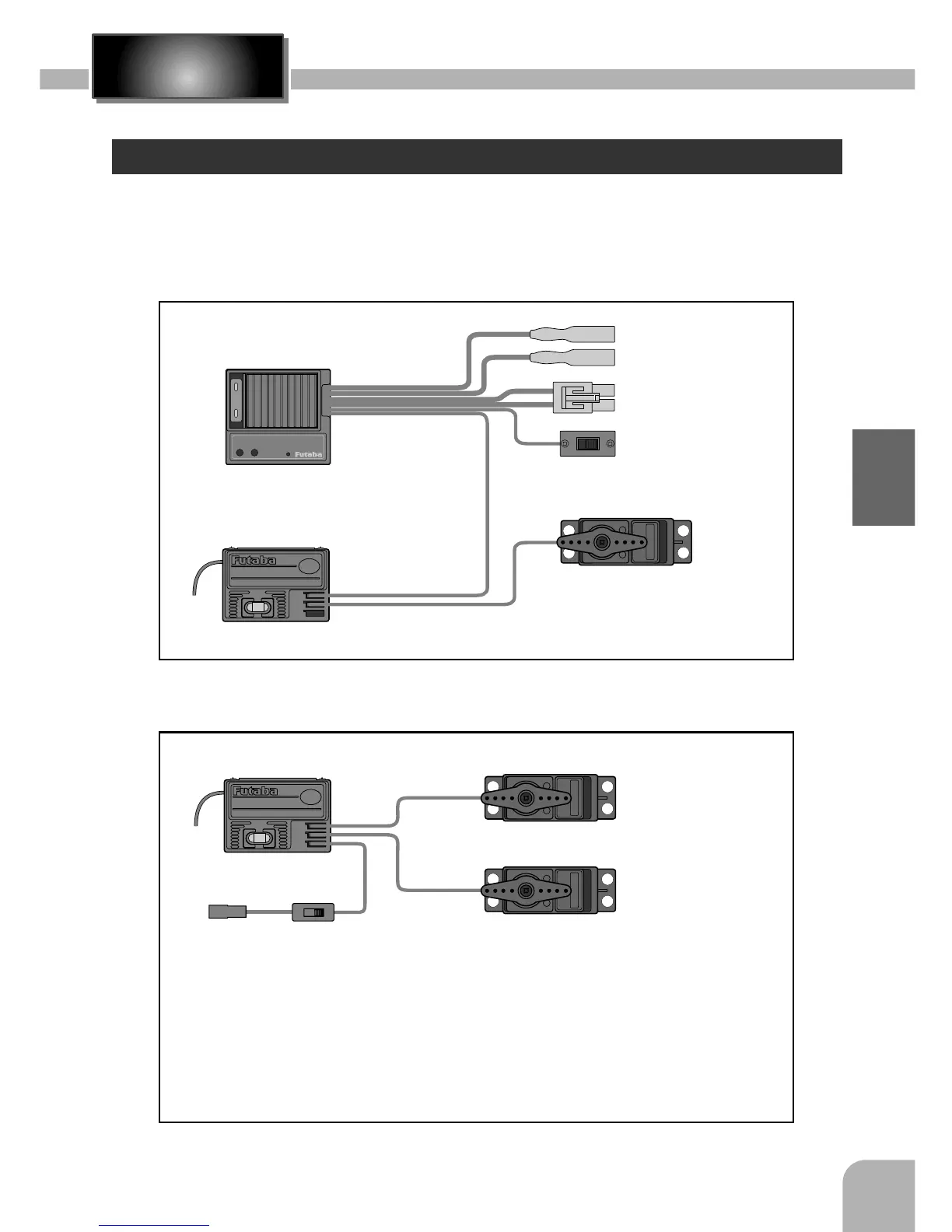

Receiver And Servo Connection
As you connect the receiver, servo's and other components, do so in accordance with the
"Assembly Precautions" listed on the next page.
FP-R122JE
AM 2 CHANNEL RECEIVER
B
E
C
X'TAL
CH.2
CH.1
BATT
FP-R122JE
AM 2 CHANNEL RECEIVER
B
E
C
X'TAL
CH.2
CH.1
BATT
Connections when a E.S.C. MC210CB or MC310CB are used.
Gas Powered Model
Steering Servo
Steering Servo
Throttle Servo
Receiver
Receiver
E.S.C.
Power Switch
To Receiver
Battery
Power Switch
Connects to Motor
Connects to battery
(CH1)
(CH2)
(CH1)
(BATT)
(CH2)
ON
OFF
Connect the battery in accordance with instructions provided with model you are
installing this system in.
Use the R2-BSS-N battery holder (Supplied with systems sold with 2 servos only)
to match your application.
If your model has a mechanical type speed control (Servo Driven for electric powered
models) inspect this component for a power supply regulator or voltage dropping Diode.
These device's will cause a voltage drop to the receiver. Be sure to remove them prior
to installation in your model.
