FUTABA FP-7UAF User Manual

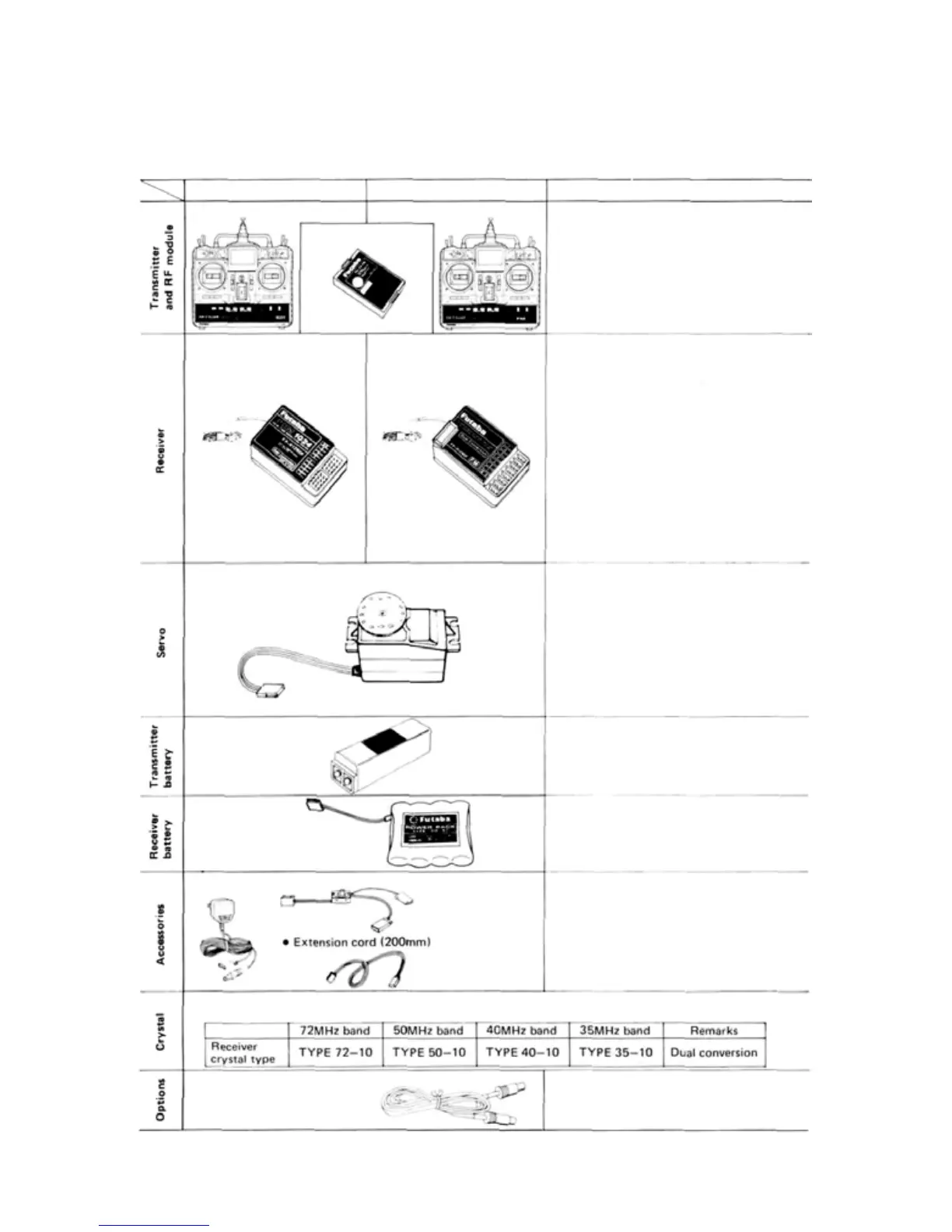

• SET CONTENTS
*Specifications are subject to change without prior notice.
FP-7UAP FP-7UAF Rating
• FP-T7UAP (X1)
• FP-T7UAF (X1)
2 sticks, 7 channels, PCM or FM transmitter
Transmitting frequency: 72MHz, 50MHz,
35/36MHz, 40/41 MHz or 29MHz band
Modulation: FM-PCM/PPM Selectable
Power requirement: 9.6V Nicd battery pack
Current drain: 200mA
• FP-TP-FM (X1)
• FP-R129DP (X1)
(Dual Conversion Type)
or FP-R137GP (X1)
• FP-R128DF (X1)
(Dual Conversion Type)
Receiving frequency: 72MHz, 50MHz,
35/36MHz, 40/41 MHz or 29MHz band
Intermediate frequency: 1st IF 10.7MHz,
2nd IF 455kHz (R129DP, R128DF), 455kHz
(R137GP)
Power requirement; 4.8V Nicd battery pack
(shared with servo)
Current drain: 35mA (R129DP),
26mA (R128DF), 25mA (R137GP)
Dimensions: 63.0x37.8x24.1mm (R129DP).
63.8x35.4x20.3mm (R128DF) (excluding
protruding parts), 57x42x24mm (R137GP)
Weight: 45g (R129DP),40g (R128DF),
45g(R137GP)
Receiving range: 500m on the ground. 1000m
in the air (range differs with the surroundings]
Control system: + pulse width control
Operating angle: Rotary system, one side 45
or greater (including trim)
Power requirement: 4.8V or
6.0V (shared
with receiver)
Current drain: 8mA at 6V (at idle)
Output torque; 3kg/cm
Operating speed; 0.22sec/60°
Dimensions: 40.4x1 9.8x36mm
Weight: 44.4g, 1.56oz. (S148),
45.1q, 1.59oz. (S3001)
Voltage: 9.6V
Capacity: 800mAh
Voltage: 4.8V
Capacity: 500mAh
Dimensions: 51x58x1 5mm
Weight: 95g,3.35oz.
• FP-S148 (X4)
or FP-S3001 (X4)
•
NT-8LP(X1)
• NR-4J (X1)
• Charger
• Receiver switch
• Servo horn
• Servo tray
• Tx hook band
• Frequency flag
or ribbon
• FM crystal set (Transmitter and Receiver)
However use the following crystal types for dual conversion receiver (R129DP, R128DF).
The set does not include the following:
• Trainer cable (6-conductor)
- 2 -

FUTABA FP-7UAF Specifications

General

Brand	FUTABA
Model	FP-7UAF
Category	Remote Control
Language	English
