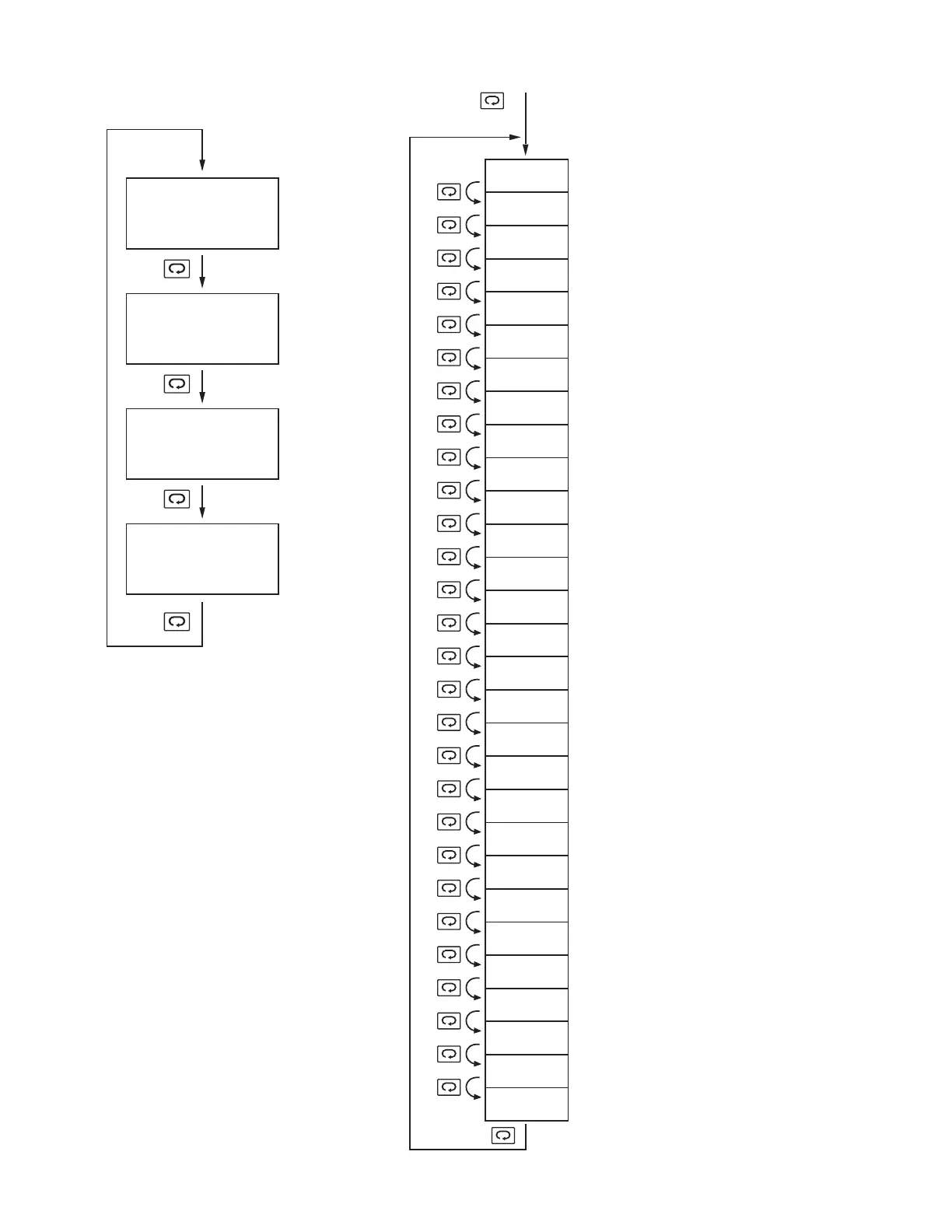

1-5 Menu Overview1-5 Menu Overview
PV Value
or SAFE
PV Value
or
SAFE
HSP1 ValueHSP1 Value
LSP1 ValueLSP1 Value
SP2 ValueSP2 Value
INPT
UNIT
RESO
IN.LO
IN.HI
SHIF
FILT
OUT1
O1.HY
HSP.L
HSP.H
LSP.L
LSP.H
OUT2
ADDR
BAUD
PARI
AOFN
AOLO
AOHI
AL.FN
AL.MD
AL.HY
AL.FT
EIFN
DISP
Input type
Process unit
Display resolution
Low scale value for linear
input
High scale value for linear
input
PV shift (offset) value
PV filter time constant
Output 1 function
Output 1 hysteresis value
Lower limit of HSP1
Lower limit of LSP1
Upper limit of HSP1
Upper limit of LSP1
Output 2 function
Address for digital
communication
Baud rate
Parity bit
Analog output function
Analog output low scale
Analog output high scale
Alarm function
Alarm mode
Alarm hysteresis value
Alarm failure transfer
Event input function
Normal display format
Process
value
High limit
setpoint 1
value
Low limit
setpoint 1
value
Set point 2
value
Press
for 4 sec.
Setup ModeSetup Mode
12
PV.HI
PV.LO
Max. historical PV
Min. historical PV
T.ABN
Abnormal time
UM L91-Rev 8
