2-9 Event Input wiring2-9 Event Input wiring
The event input can accept a switch signal as well as an open collector
signal. The event input function (EIFN) is activated as the switch is closed
or an open collector (or a logic signal ) is pulled down.
Open Collector
Input
Open Collector
Input
Switch InputSwitch Input
1
2
3
4
5
6
7
8
9
10
+
1
2
3
4
5
6
7
8
9
10

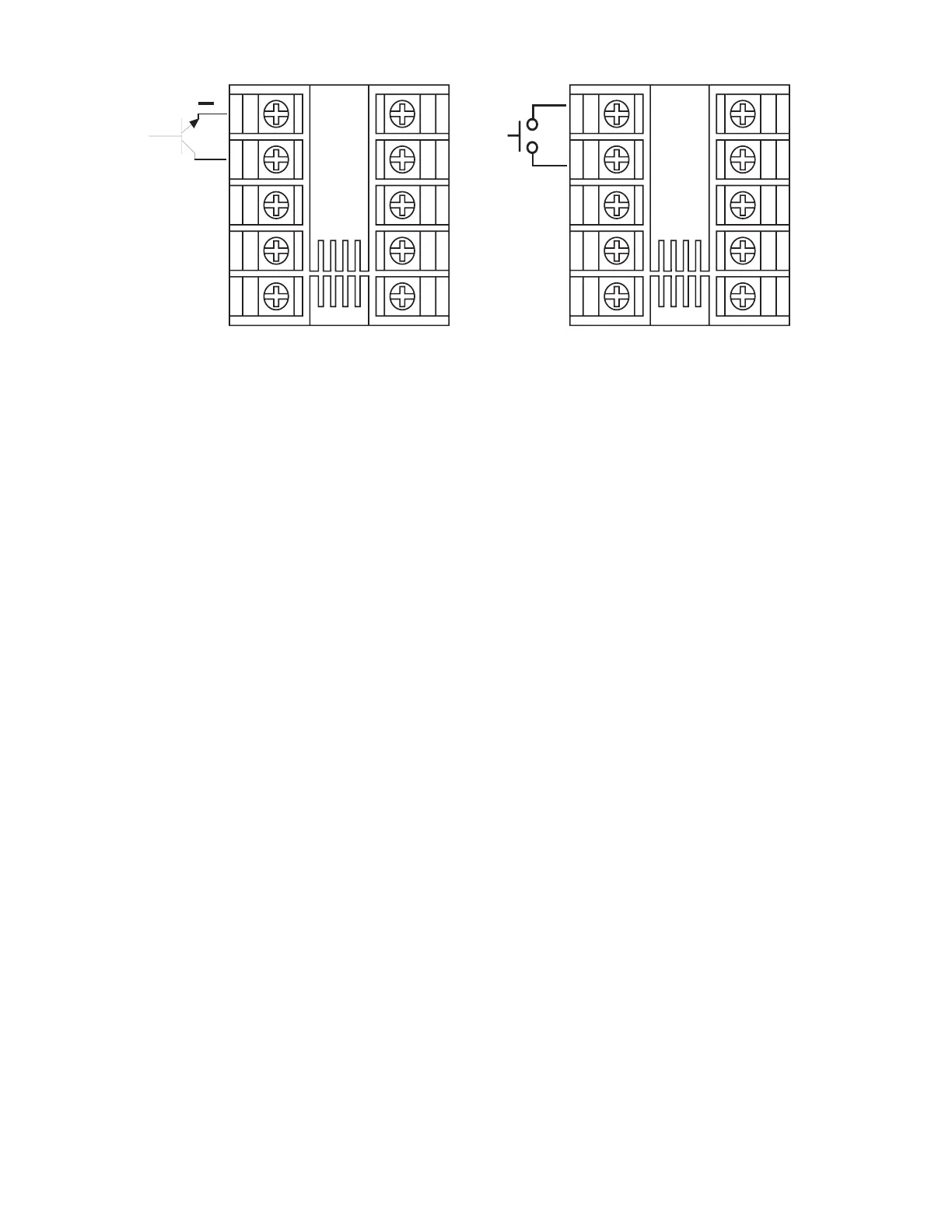

Figure 2-9
Event Input Wiring
Figure 2-9
Event
Input Wiring
29
UM L91-Rev 8
