2-8 Linear DC Input Wiring2-8 Linear DC Input Wiring

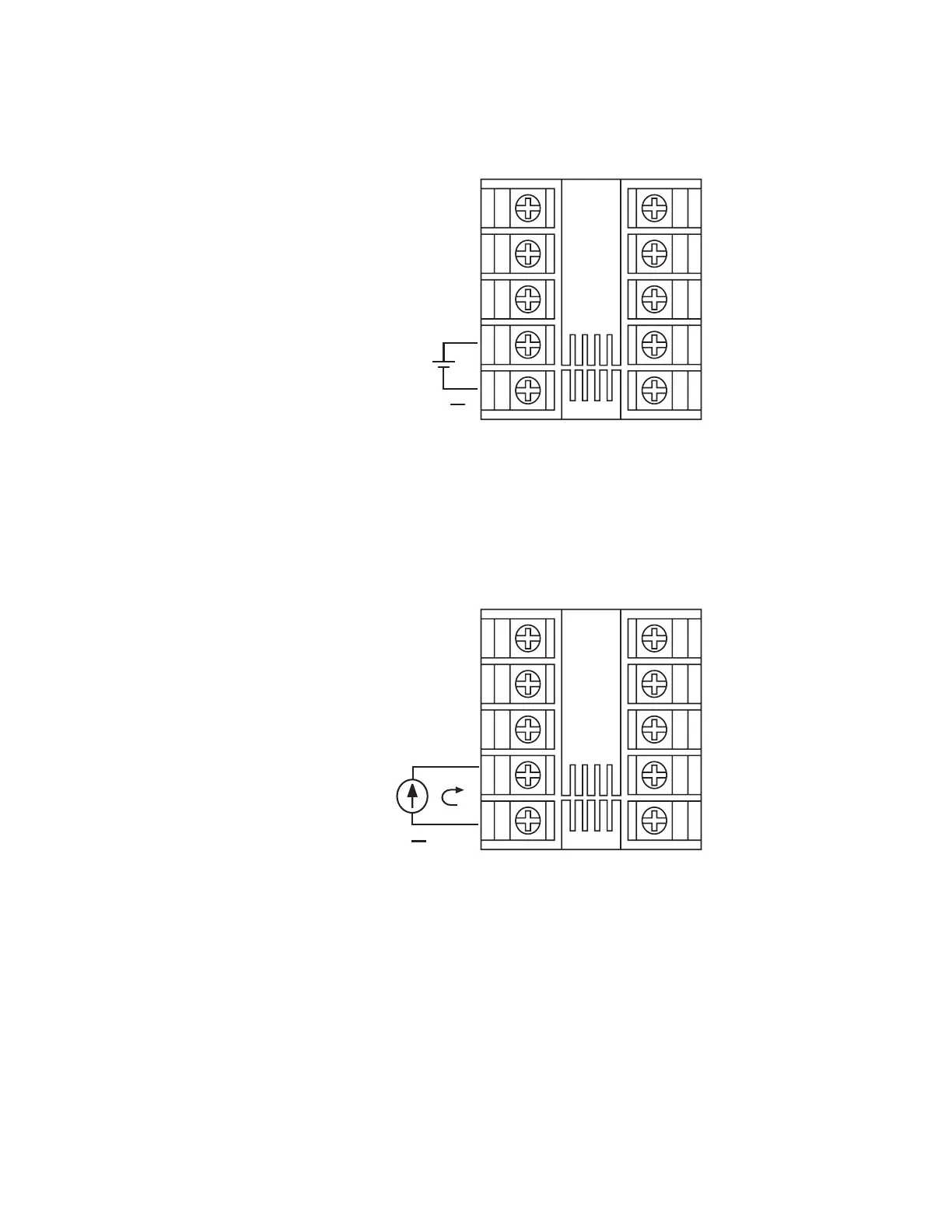

DC linear voltage and linear current connections are shown in Figure 2-7
and Figure 2-8 .
Figure 2.7
Linear Voltage WiringInput
Figure 2.7
Linear
Voltage Input Wiring
Figure 2.8
Linear Current Wiring *Input
Figure 2.8
Linear
Current Input Wiring *
0~60mV, 0~1V,
0~5V, 1~5V,
0~10V
0~60mV, 0~1V,
0~5V,
1~5V,
0~10V
+
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
0~20mA or
4~20mA
0~20mA or
4~20mA
+
28
*
NOTE: Volt and Milliamp inputs are NOT FM Approved.
