9
Programming of the channel numbers for MIDI Program Change 1, 2, 3
Next three positions in Setup defined as Co1, Co2, Co3 enable channel number programming
successively for PRG CHG-1, PRG CHG-2, PRG CHG-3 commands. The available range is from 1 to 16.
Displaying of the r letter with the channel number means that the number of this channel is already

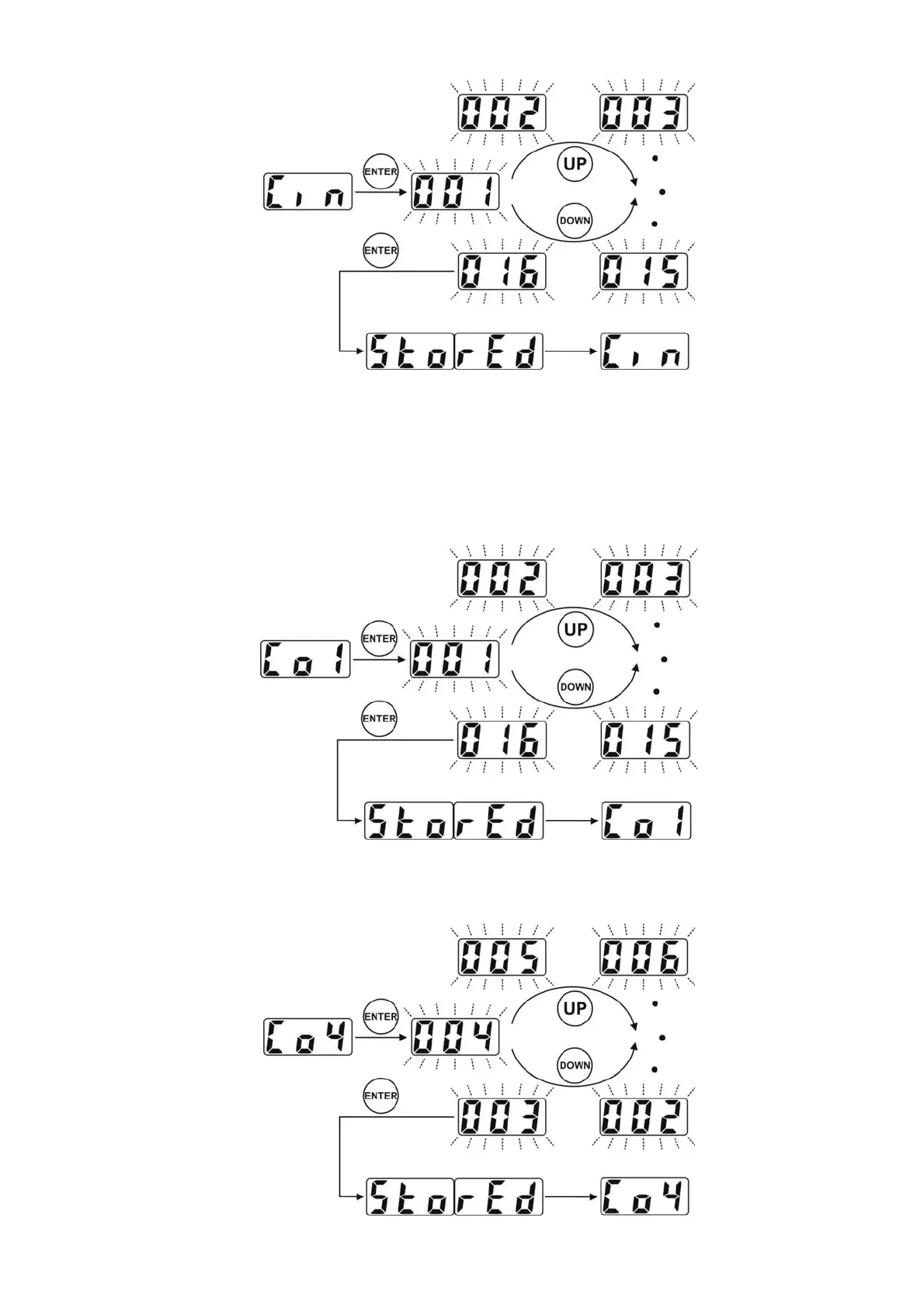

reserved (r) for other Program Change command. Example below shows programming of the channel for
PRG CHG-1. For others proceed analogically.
Programming of the channel number for Control Change command
Channel number for Control Change command is programmed in Co4 function.
