G-Lab MIDI Guitar Controller - Structure

Structure

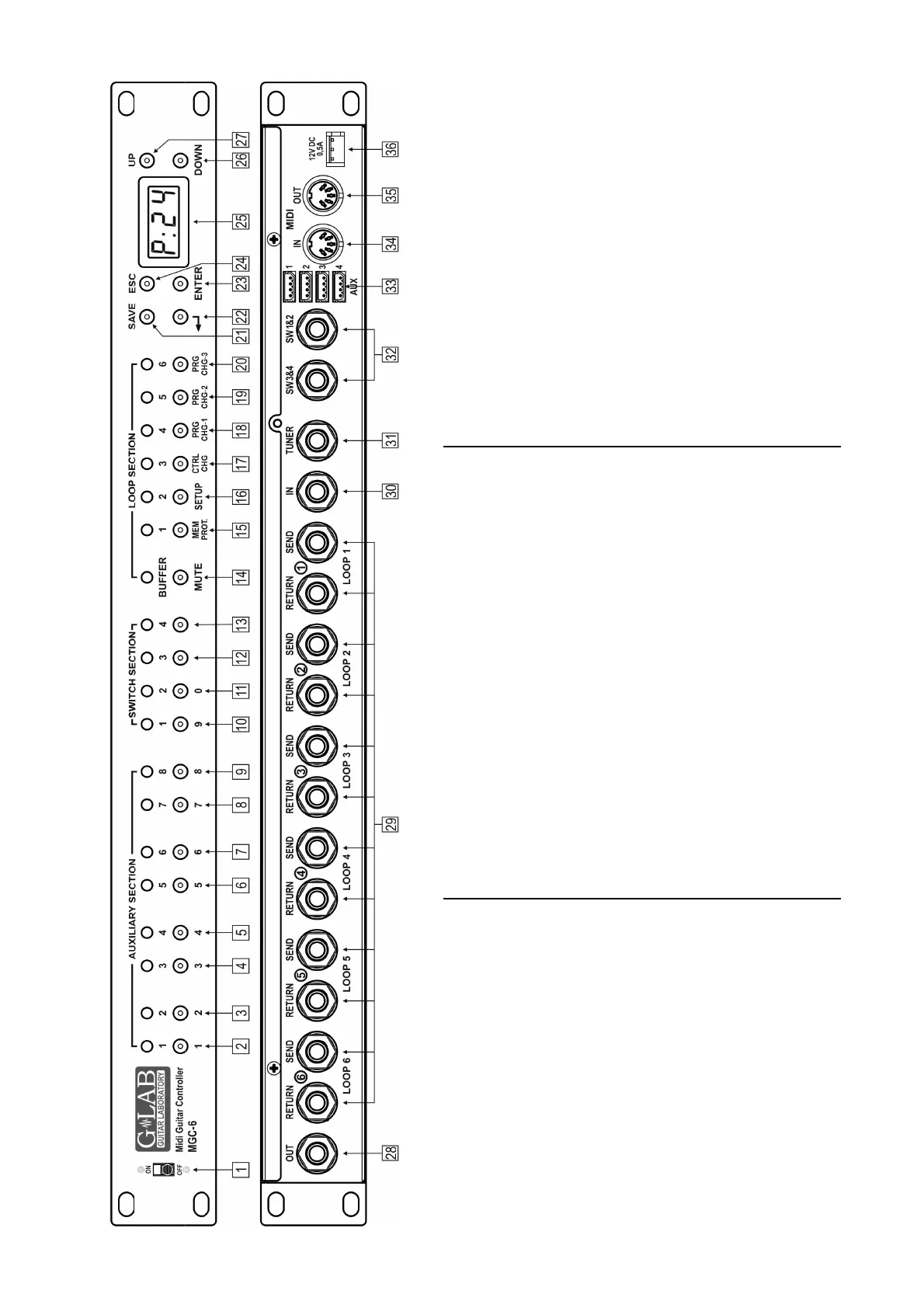

1 - ON/OFF switch 10 – 13 SWITCH section buttons: 21 - SAVE – store
2 – 9 AUXILIARY section buttons: 10 - SW 1 output switch or in Fun mode digit 9 of the numeric keyboard 22 - shift button
2 - AUX 1 output switch or 11 - SW 2 output switch or in Fun mode digit 0 of the numeric keyboard 23 - ENTER – confirm
in Fun mode digit 1 of the numeric keyboard 12 - SW 3 output switch 24 - ESC – escape
3 - AUX 2 output switch or 13 - SW 4 output switch 25 - LED display
in Fun mode digit 2 of the numeric keyboard 14 – 20 LOOP section buttons: 26 - DOWN decrease
4 - AUX 3 output switch or 14 - BUFFER – on/off buffer switch or 27 - UP – increase
in Fun mode digit 3 of the numeric keyboard in Fun mode MUTE – silent tuning switch 28 - OUT – output signal connector
5 - AUX 4 output switch or 15 - LOOP 1 switch or 29 - LOOP 1 to LOOP 6 – effects’ connectors:
in Fun mode digit 4 of the numeric keyboard in Fun mode MEM PROT. – memory access lock switch RETURN – effect loop input connector,
6 - AUX 5 output switch or 16 - LOOP 2 switch or in Fun mode SETUP switch SEND –- effect loop output connector
in Fun mode digit 5 of the numeric keyboard 17 - LOOP 3 switch or 30 - IN – guitar signal input
7 - AUX 6 output switch or in Fun mode CTRL CHG – controller value switch 31 - TUNER – guitar tuner connector
in Fun mode digit 6 of the numeric keyboard 18 - LOOP 4 switch or 32 - SW1&2, SW3&4 – output connectors to control the amp
8 - AUX 7 output switch or in Fun mode PRG CHG-1 – device 1 Program number switch 33 - AUX 1 to AUX 4 – connectors
in Fun mode digit 7 of the numeric keyboard 19 - LOOP 5 switch or 34 - MIDI IN – MIDI input connector
9 - AUX 8 output switch or in Fun mode PRG CHG-2 – device 2 Program number switch 35 - MIDI OUT – MIDI output or Soft THRU connector
in Fun mode digit 8 of the numeric keyboard 20 - LOOP 6 switch or 36 - 12V DC – Power supply connector
in Fun mode PRG CHG-3 – device 3 Program number switch
