G-Lab MIDI Guitar Controller - MIDI Specification; MIDI Input (MIDI IN); Program Change; Control Change

13

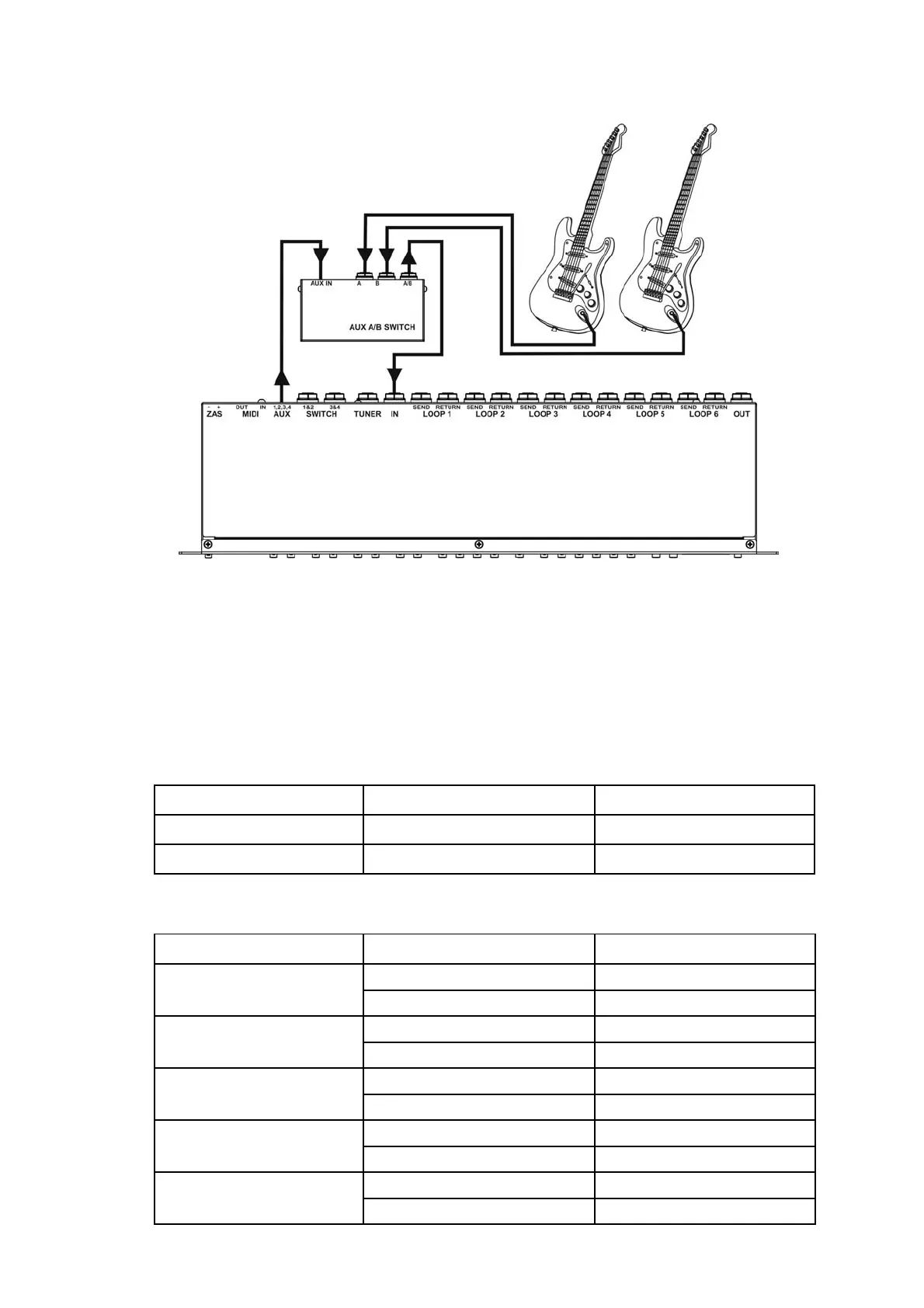

Below you will find the example of the AUX A/B SWITCH connection.
Guitar switch
MIDI specification
MIDI Input (MIDI IN)
Controller can attend following commands:
Program Change
Sent value Program number Function
0 - 99 1 – 100 Preset number
100 101 mute ON
Control Change
Controller’s number Controller’s value Function
0-63 AUX1 switching off
20
64-127 AUX1 switching on
0-63 AUX2 switching off
21
64-127 AUX2 switching on
0-63 AUX3 switching off
22
64-127 AUX3 switching on
0-63 AUX4 switching off
23
64-127 AUX4 switching on
0-63 AUX5 switching off
24
64-127 AUX5 switching on
