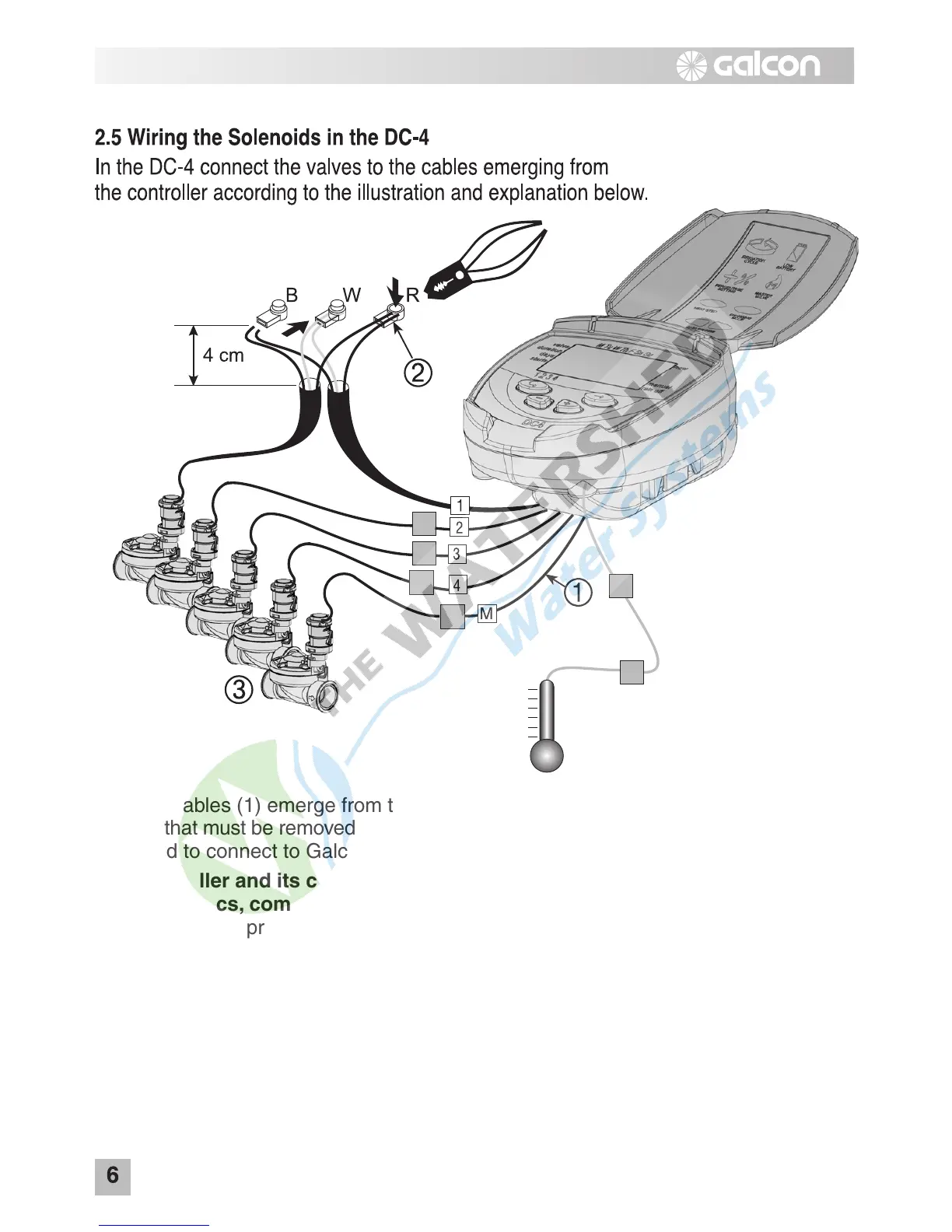

Labeled cables (1) emerge from the controller. The end of each cable is protected by
a cover that must be removed prior to connecting the cable. The cables are specifically
designed to connect to Galcon DC type irrigation valves and solenoids (3).
The controller and its connections are waterproof. To safeguard the waterproof
characteristics, compliance with the following is essential:
• Do not remove protective covers from cables that are not connected to valves.
Exposed cable ends can short-circuit with each other, with conducting bodies and
in water.
• Connect the cables to the valves (3) using the special waterproof connectors (2)
supplied with the product. See illustration.
1. Cut away the covering from the controller cable (1) near the end of the cable and
expose the cable leads from the black insulating outer sleeve. The solenoid cables
have three wires: white, red and black. Do not expose the three wires from their
colored insulation.
2. Connect the leads to waterproof connector (2)
