Gallagher S200 - Installation Instructions

8 8
3E4677 Gallagher S200 Solar Energizer User Manual



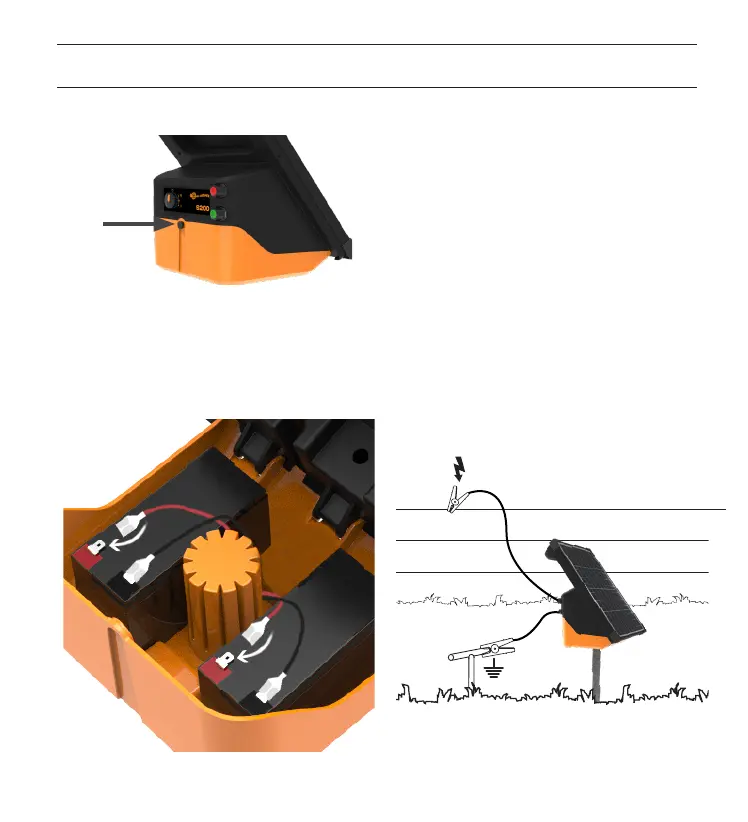

Note: Before connecng the baeries
ensure the power switch is in the 
posion.


The solar panel should face towards
the equator. i.e. in the northern
hemisphere, panel faces south, in the
southern hemisphere, panel faces
north. 

a) Connect green terminal to earth
stake at least 2  (60cm) into
ground.
b) Connect red terminal to fence
line.

INSTALLATION INSTRUCTIONS
3’ Earth Rod
GREEN
RED
