G&D DVI-CPU User Manual

Console module »DVI-CON«
98 · Computer and console modules

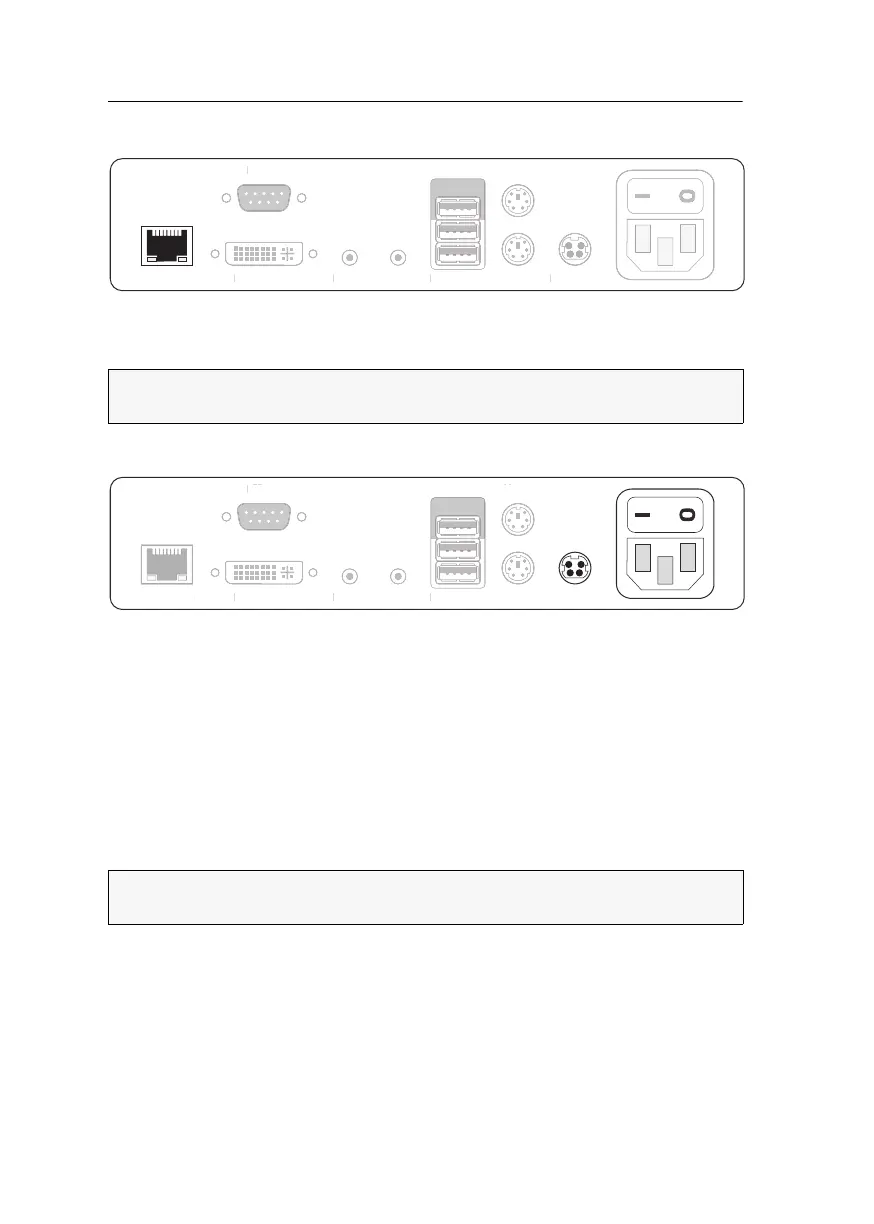

Connection to the matrix switch
Transmission: Use a category 5e (or better) twisted pair cable to connect the Transmis-
sion interface to a Dynamic Port (RJ45) of the matrix switch.
Power supply
Main Power: Connect the power cable to the power pack and a power outlet.
Red. Power: If required, connect the power cable of the optional power pack to this
interface. This provides a redundant power supply. Connect the power cable with
the power pack and a power outlet of a different power circuit.
LED Out: If you expanded the functional range of the matrix switch by purchasing the
TradeSwitch function, connect the optional TS-LED to this interface.
Start-up
Start the console module by pressing the Main Power button of the power pack.
ADVICE: You can also connect the computer module directly to a compatible console
module.
ADVICE: The active hotkey configuration is displayed during the System Startup of
the matrix switch.
