Console module »DVI-CON-MC4«
Computer and console modules · 117

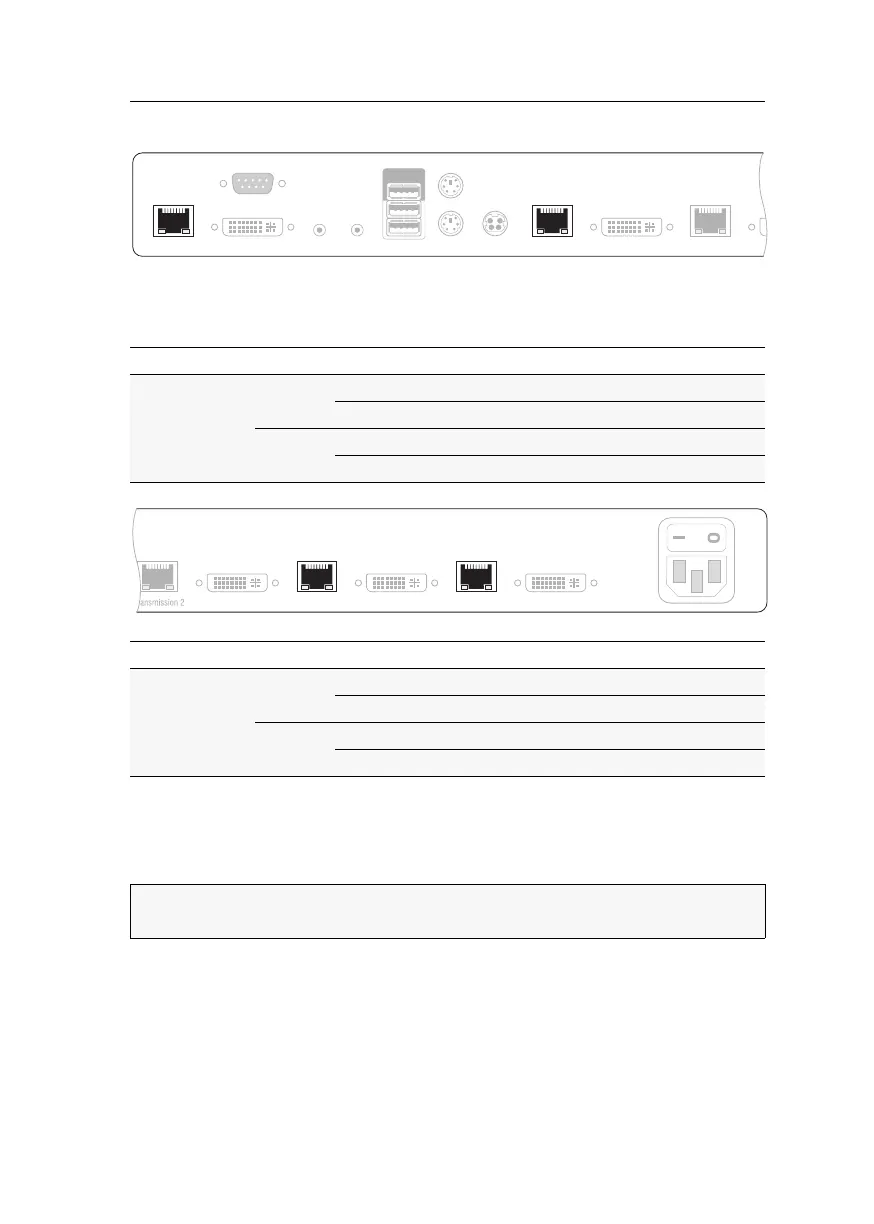

Back panel
The Transmission interfaces at the console module’s back panel provide additional
status LEDs.
TradeSwitch-LED
The optional TS-LED lights if the keyboard and mouse signals of a leader console
are accessing the console module.
Interface LED Status Meaning
Transmission Yellow Off No data connection to the counterpart.
Flashing Data connection to the counterpart established.
Green Off No user is logged in at the console module.
On A user is logged in at the console module.
Interface LED Status Meaning
Transmission Yellow Off No data connection to the counterpart.
Flashing Data connection to the counterpart established.
Green Off No user is logged in at the console module.
On A user is logged in at the console module.
NOTE:
Keyboard and mouse signals can only access another console module or a
computer if you activated the TradeSwitch function for the matrix switch.
Keyb./Mouse
Generic
Transmission 3
Transmission 1
Micro In Red. Power
DVI / VGA Out 1
LED out
Speaker
Mouse
Keyb.
Transmission 2
DVI / VGA Out 2
