Console module »DVI-CON-2«
124 · Computer and console modules
Status displays

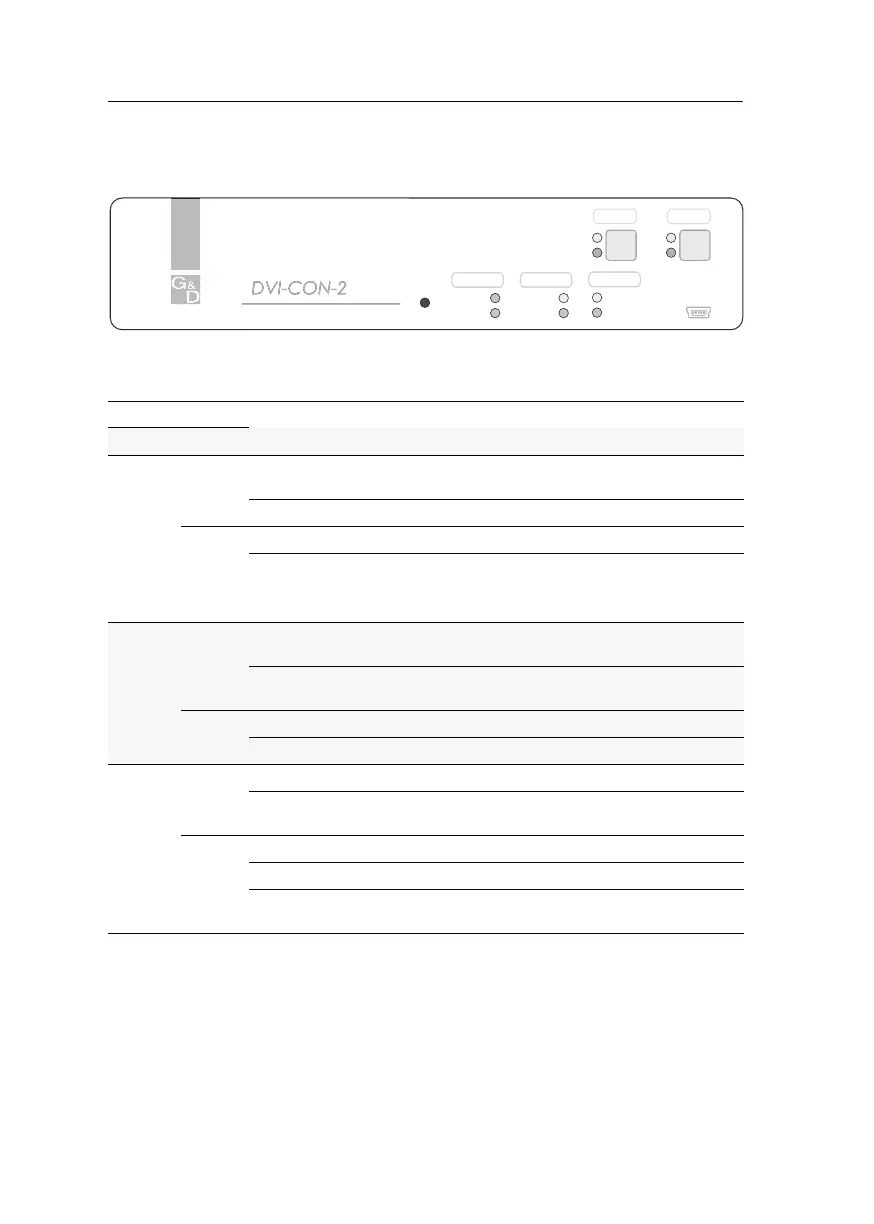

Front panel
The LEDs on the front panel of the console module show the system’s operating status.
Section LED Status Meaning
Ident. Ident. On On as soon as the LED has been activated via web application.
Power Red. On The optional power pack is connected and the required voltage
(12
Volt) is available.
Off The optional power pack is not (properly) connected.
Main On The main power supply provides the required voltage.
Off The power button is turned off or the connection with the mains
could not be established.
Check the proper connection of the power supply cable.
Status Trans. On The communication with the counterpart of the active channel
could be established successfully.
Off The communication with the counterpart of the active channel
could not be established.
System On The device is booting or carries out a firmware update.
Blinking The system is ready for operation.
Console Video On Stable image signal at video input.
Off The incoming video signal could not be detected or it lacks the
required quality to be processed by the system.
K/M On A local keyboard was found.
Off No power at PS/2 interface or USB bus.
Blinking The CPU input (PS/2 or USB) is active and ready.
No local keyboard was found.
Trans.
System
Main
Red.
Video
K/M
Status
Power
Service
Console
Status
Active
Trans. 1
Trans. 2
Ident.
ervic
