G&D DVI-CPU User Manual

Console module »DVI-CON-Fiber«
Computer and console modules · 133

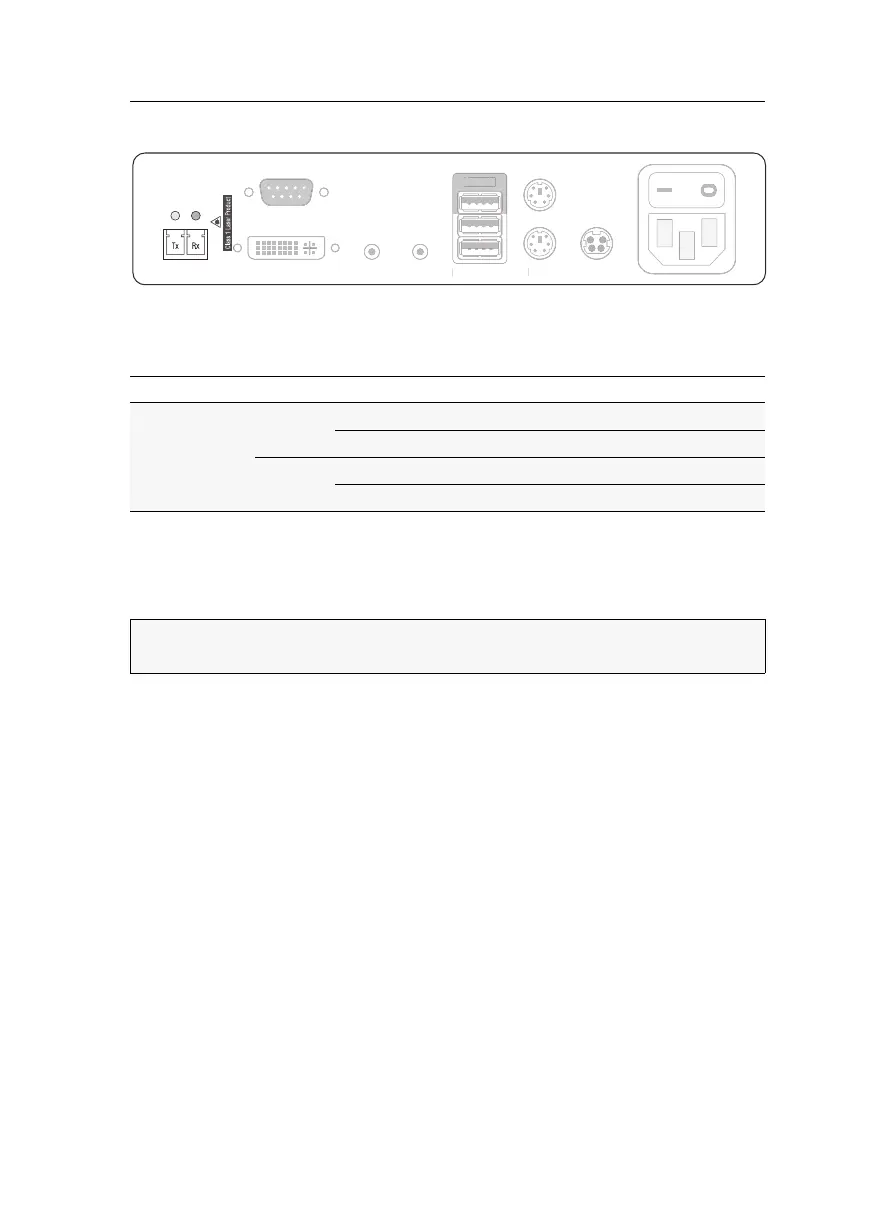

Back panel
The back panel of the console module provides additional status LEDS. They have
the following meaning:
TradeSwitch-LED
The optional TS-LED lights if the keyboard and mouse signals of a leader console
are accessing the console module.
Interface LED Status Meaning
Transmission Yellow Off No data connection to the counterpart.
Flashing Data connection to the counterpart established.
Green Off No user is logged in at the console module.
On A user is logged in at the console module.
NOTE: Keyboard and mouse signals can only access another console module or a
computer if you activated the TradeSwitch function for the matrix switch.
Transmission
Main Power
Red. Power
DVI / VGA Out
LED out
Mouse
Keyb.
Micro In
Keyb./Mouse
Speaker
Generic
M
a
i
n
P
ower
Red
.
Po
w
er
DVI
/
V
G
A
O
u
t
LED ou
t
Mouse
K
e
yb.
Mi
cro
In
Keyb.
/
Mous
e
Sp
eaker
G
eneric
