G&D DVI-CPU User Manual

Console module »DVI-CON-Fiber-MC2«
Computer and console modules · 143

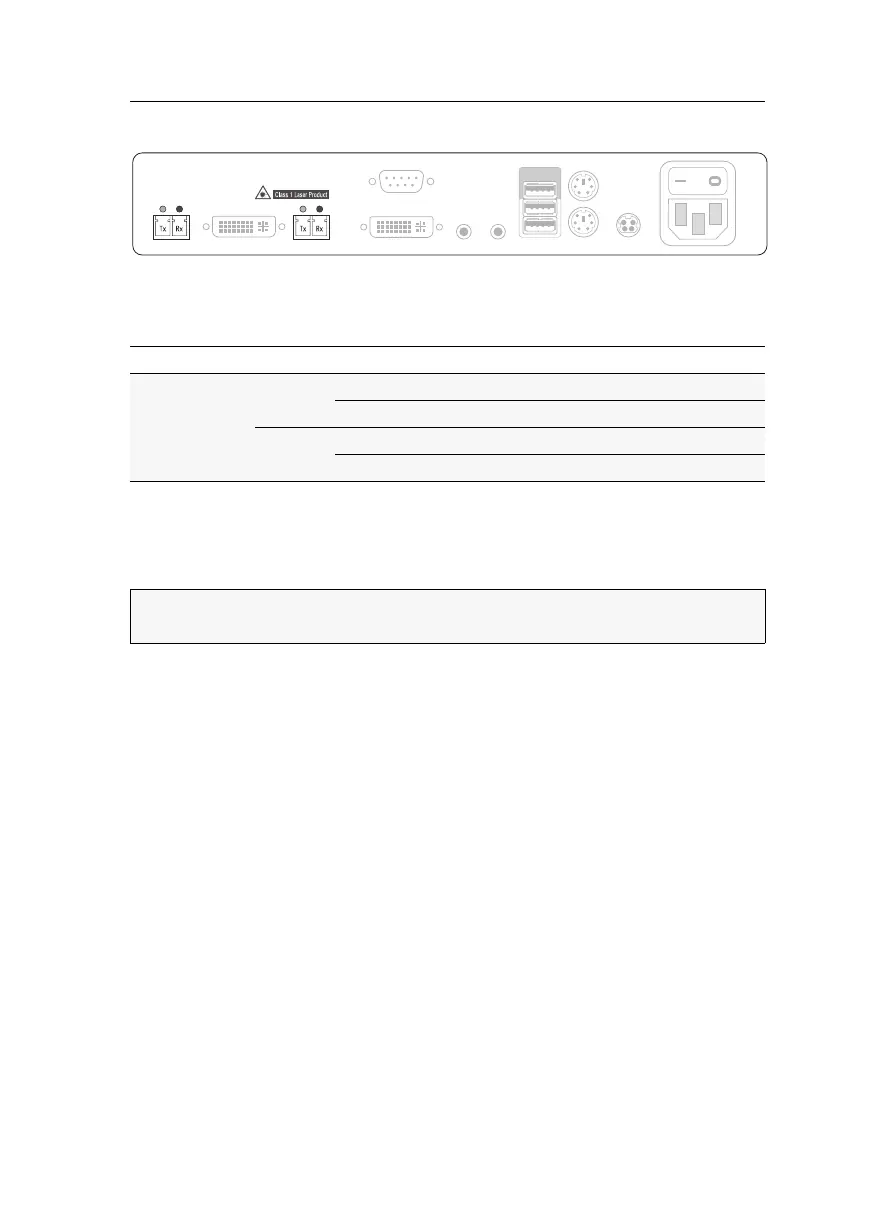

Back panel
The Transmission interfaces at the console module’s back panel provide additional
status LEDs.
TradeSwitch-LED
The optional TS-LED lights if the keyboard and mouse signals of a leader console
are accessing the console module.
Interface LED Status Meaning
Transmission Yellow Off No data connection to the counterpart.
Flashing Data connection to the counterpart established.
Green Off No user is logged in at the console module.
On A user is logged in at the console module.
NOTE: Keyboard and mouse signals can only access another console module or a
computer if you activated the TradeSwitch function for the matrix switch.
Main Power
LED Out
DVI/VGA Out 1
DVI/VGA Out 2
Transmission 1Transmission 2
Red. Power
Mouse
Keyb.Micro In
Speaker
Generic
Keyb./Mouse
