G&D DVI-CPU User Manual

Console module »DVI-CON-Fiber-MC4«
Computer and console modules · 149
Transmission 4|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Rx interface of another Dynamic Port provided at the
matrix switch.
Transmission 4|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the
other end of the cable to the
Tx interface of the same Dynamic Port provided at the
matrix switch.
Power supply
Main Power: Connect the supplied power cable.
Insert the cable’s Schuko plug in a power socket.
Red. Power: Connect the connection cable of a compatible power pack to provide the
console module with a second, redundant power supply.
Startup
Turn on the console module after its installation.
Use the Main Power power pack or a redundant power pack to establish the power
supply:
 Turn on the Main Power power pack.
 Use an optional power pack to supply the Red. Power socket with power.

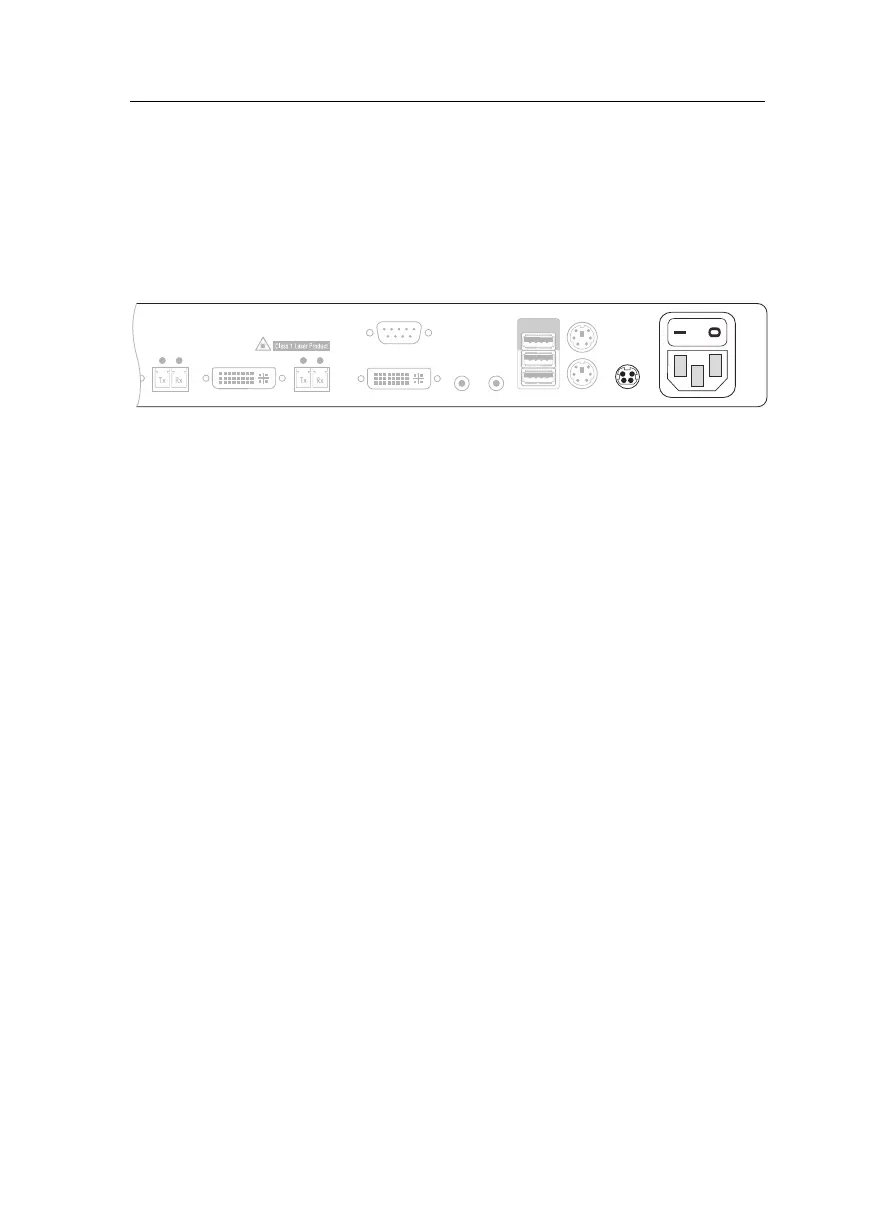

Transmission 1Transmission 2
DVI/VGA Out 2
Main Power
LED Out
DVI/VGA Out 1
Red. Power
Mouse
Keyb.Micro In
Speaker
Generic
Keyb./Mouse
