Console module »DP-CON-2«
188 · Computer and console modules

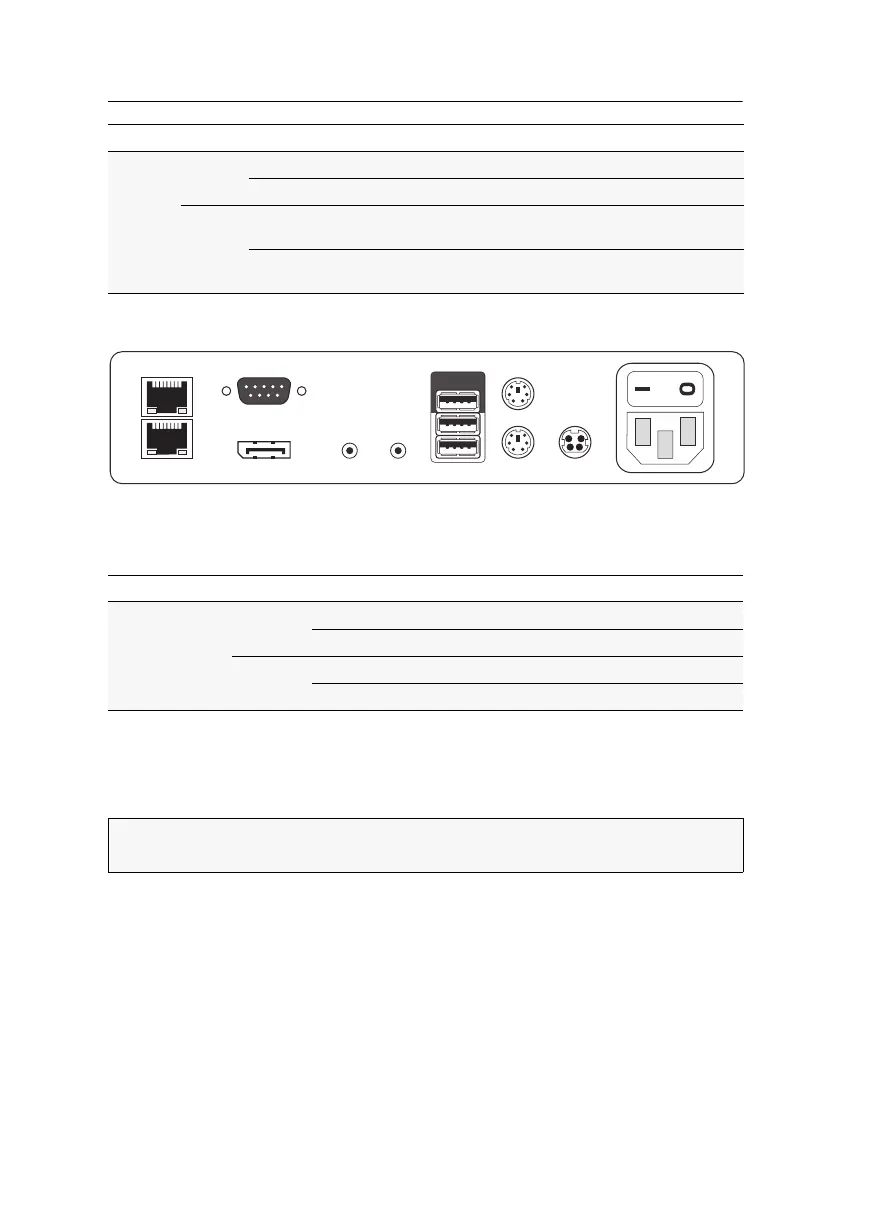

Back panel
The Transmission interface at the back panel of the console module provides addi-
tional status LEDs. The LEDs have the following functions:
TradeSwitch-LED
The optional TS-LED lights if the keyboard and mouse signals of a leader console
are accessing the console module.
Section LED Status Meaning
Trans. Active On Active channel.
Off Inactive channel.
Status On The communication with the counterpart station of this channel
was established successfully.
Off The communication with the counterpart station of this active
channel could not be established.
Interface LED Status Meaning
Transmission Yellow Off No data connection to the counterpart.
Flashing Data connection to the counterpart established.
Green Off No user is logged in at the console module.
On A user is logged in at the console module.
NOTE:
Keyboard and mouse signals can only access another console module or a
computer if you activated the TradeSwitch function for the matrix switch.
