Computer module »DL-DVI-CPU-UC«
42 · Computer and console modules
Installation

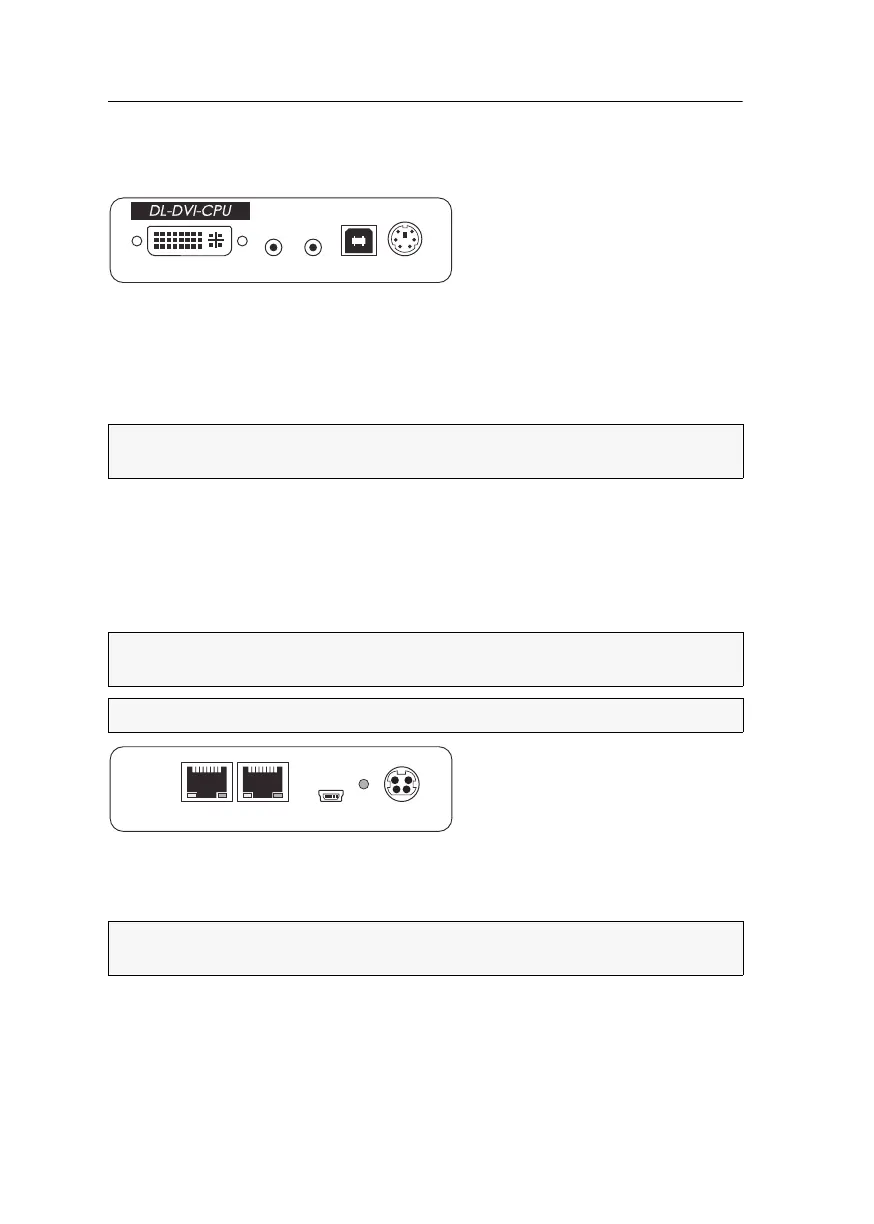

Connecting the computer
DL-DVI CPU: Use the supplied video cable to connect the computer’s video output to
this interface.
Line In: Use an audio cable to connect the computer’s Line-Out interface to this port.
Line Out: Use an audio cable to connect the computer’s Line-In interface to this port.
USB K/M: Use the USB device cable to connect one of the computer’s USB ports to this
port.
Keyb.: Use an optional PS/2 cable to connect the computer’s PS/2 keyboard interface
to this interface.
Connections to the matrix switches
Trans. 1: Connect this interface to a Dynamic Port (RJ45) of a matrix switch.
Trans. 2: Connect this interface to a Dynamic Port (RJ45) of another matrix switch.
Power supply
Power In: Insert the power pack’s connection cable to this interface.
NOTE:
Both keyboard and mouse signals can be transmitted to the computer using
the PS/2 or the USB ports.
IMPORTANT:
Only connect one Trans. interface of the computer module per
matrix switch.
NOTE:
Use category 5e twisted pair cables (or better) to connect the devices.
ADVICE:
You can also connect the computer module directly to up to two compatible
console modules.
Keyb.
USB K/M
Line In
Line Out
DL-DVI CPU
Power In
Service
Power
Trans. 1Trans. 2
