G&D DVI-CPU User Manual

Computer module »DL-DVI-CPU-Fiber-UC«
54 · Computer and console modules

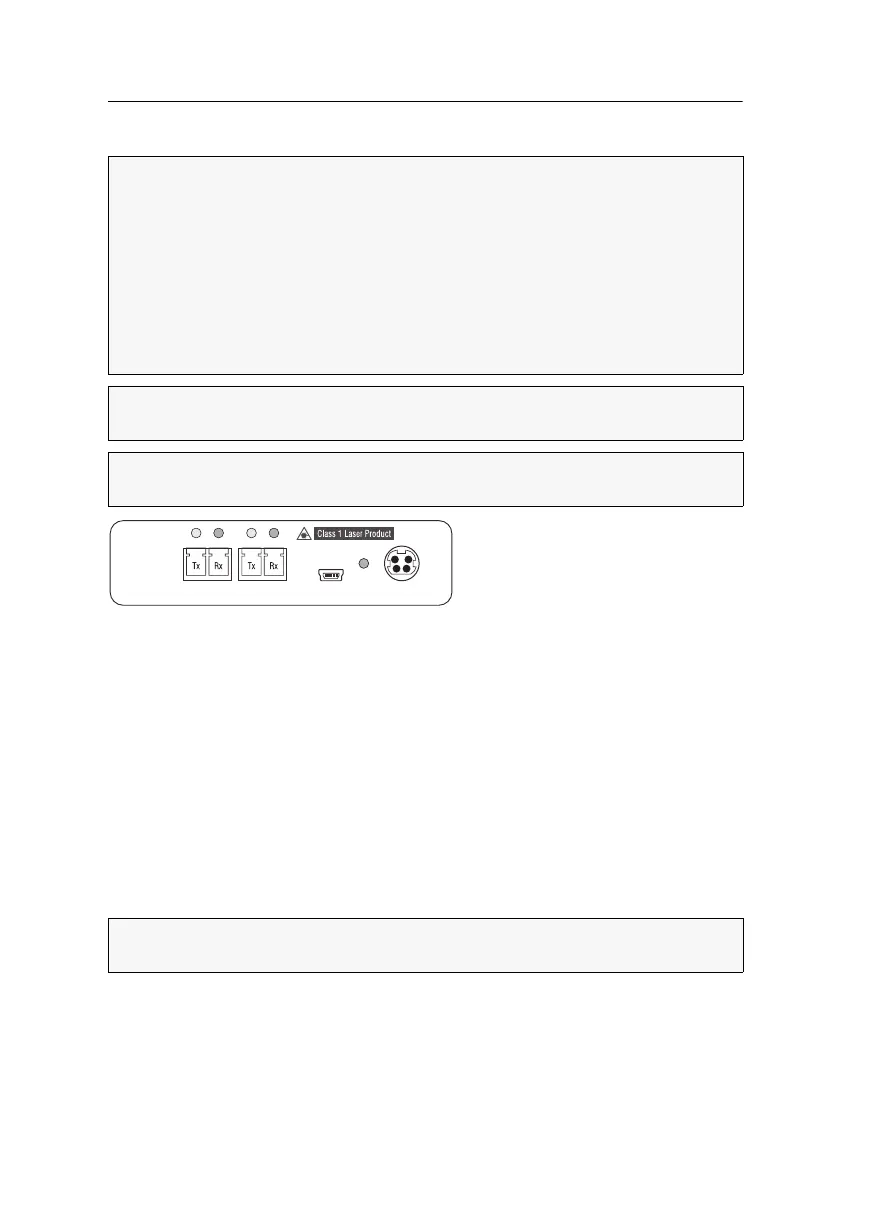

Connection to the matrix switch
Trans. 1|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the other
end of the cable to the
Rx interface of a Dynamic Port provided at the first matrix
switch.
Trans. 1|Rx: Insert the LC plug of a compatible optical fibre cable. Connect the other
end of the cable to the
Tx interface of the same Dynamic Port provided at the first
matrix switch.
Trans. 2|Tx: Insert the LC plug of a compatible optical fibre cable. Connect the other
end of the cable to the
Rx interface of a Dynamic Port provided at the second matrix
switch.
Trans. 2|Rx : Insert the LC plug of a compatible optical fibre cable. Connect the other
end of the cable to the
Tx interface of the same Dynamic Port provided at the second
matrix switch.
Power supply
Power In: Insert the power pack’s connection cable to this interface.
The devices use components with laser technology which comply with laser
class
1.
They meet the requirements in accordance to EN 60825-1:2014 as well as
U.S. CFR 1040.10 and 1040.11.
Mind the following instructions when dealing with laser beams:
 Avoid direct eye exposure to beam on page 3
 Always connect optical connections or cover them with protection caps on page 3
 Only use G&D certified transmission modules on page 3
NOTE: Use optical fibres with LC plugs to connect the devices. The cables are
available as accessories.
IMPORTANT: For each matrix switch, connect only one Trans. interface of the
computer module!
ADVICE: You can also connect the computer module directly to a compatible console
module.
Power In
Service
Power
Trans. 1Trans. 2
