Computer module »DVI-I-CPU«
Computer and console modules · 67
Installation

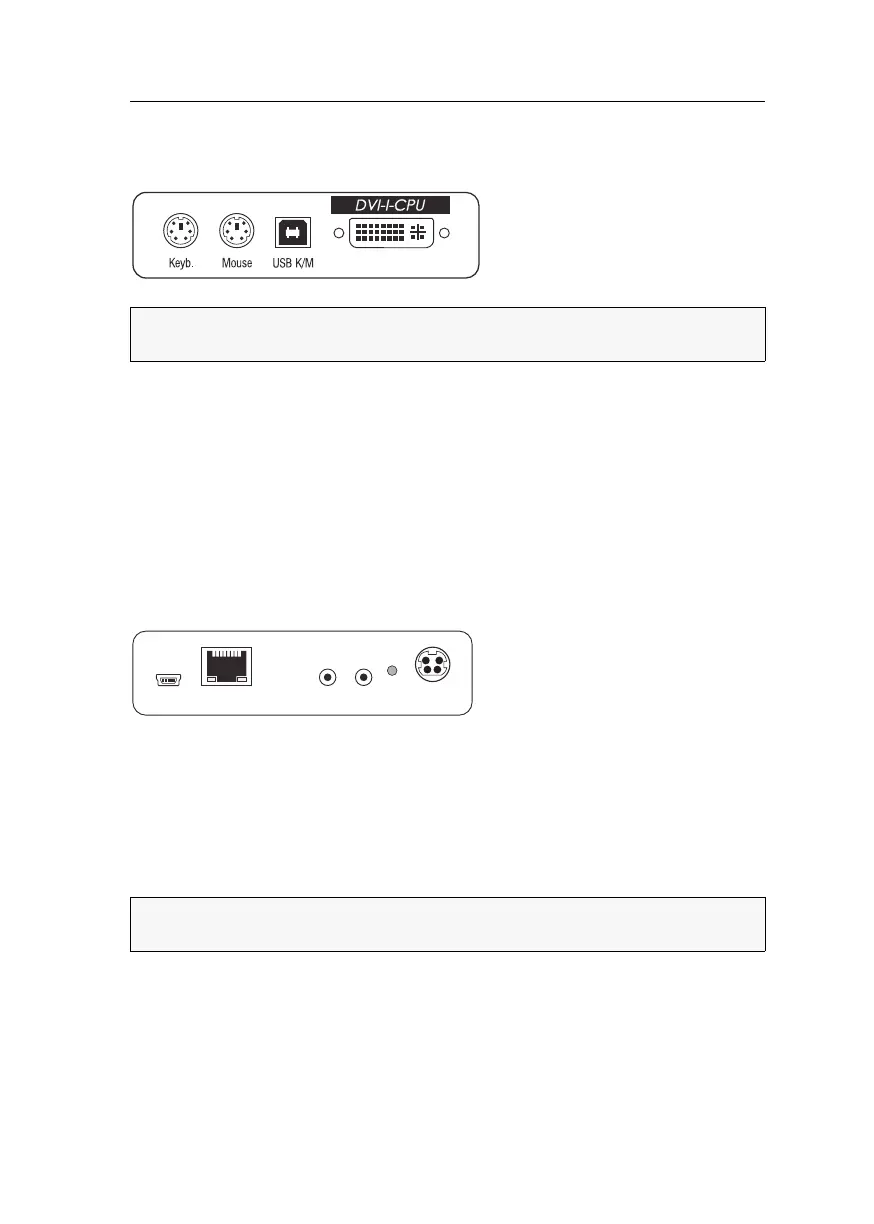

Connecting computers
Keyb.: Use the purple plug of an optional Twin-PS/2 cable to connect the purple PS/2
socket (keyboard) to this port.
Mouse: Use the green plug of an optional Twin-PS/2 cable to connect the green PS/2
socket (mouse) of the computer to this port.
USB K/M: Use the USB device cable to connect one of the computer’s USB ports to this
port.
DVI-D CPU: Use a video cable to connect the video output of the computer to this port.
If the computer provides a DVI video output, use the digital video cable (DVI-D-DL).
If the computer has an analog VGA output, use the analog video cable (VGA-M/
DVI-A-M).
Line In: Use an audio cable to connect the Line-Out interface of the computer to this port.
Line Out: Use an audio cable to connect the Line-In interface of the computer to this port.
Connection to the matrix switch
Trans: Use a category 5e (or better) twisted pair cable to connect this interface to one
of the
Dynamic Port (RJ45) provided at the matrix switch.
NOTE:
Both keyboard and mouse signals can be transmitted to the computer using
the PS/2 or the USB ports.
ADVICE:
You can also connect the computer module directly to a compatible console
module.
